Spring-return three-way motorized valve ½" BB internal thread zone valve three-way mixing valve 230V Switches to voltage, resets automatically if there is no voltage

Three-way zone valve

Motorized ball valve, valve for water, heating

- Connection: ½" BB internal thread
- Operating voltage: 230V, 50Hz
- Nominal pressure: 10 bar
- Operating temperature: from -20 °C to 160 °C
- Opening time: 12s
- Closing time: 5s

The 3-way 230V motorized valve can be used in many areas of application. For example, it can be used in heating, ventilation and air conditioning systems where temperature or air flow direction control is important. It can also be used in water and fluid control systems where fluid flow or mixing is required.

Motorized valve

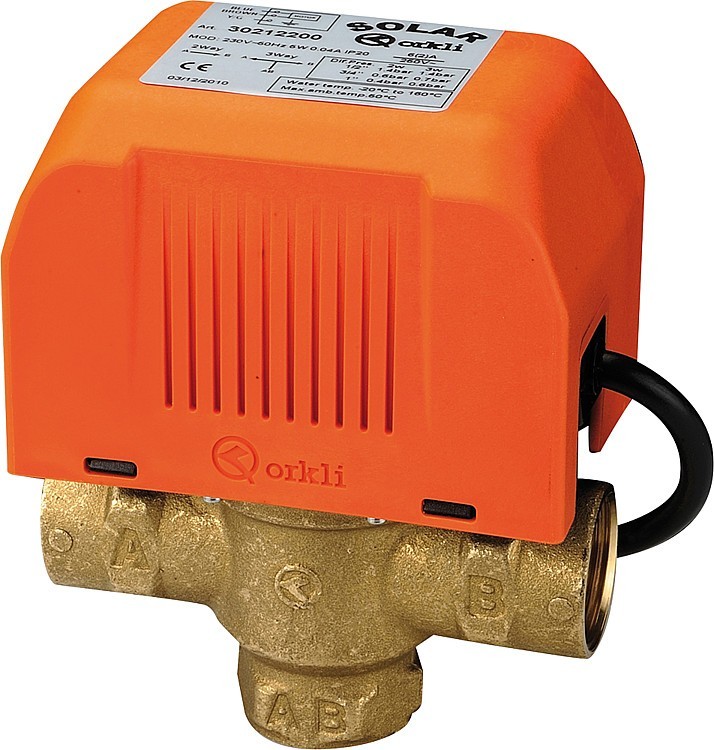

Three-way motorized valve with spring return.

The 3-way 230V motorized valve is a device used to control the flow of liquid or gas through its controlled motor. These type of valves have three outlets and allow changing the direction of the material flowing between them.

The construction of a motorized valve includes a valve body through which the liquid or gas flows. The valve body outlets allow the direction of the material to be selected. The valve body is controlled by an electric motor, the rotation of which opens or closes the valve, and can also set intermediate positions to control partial flow.

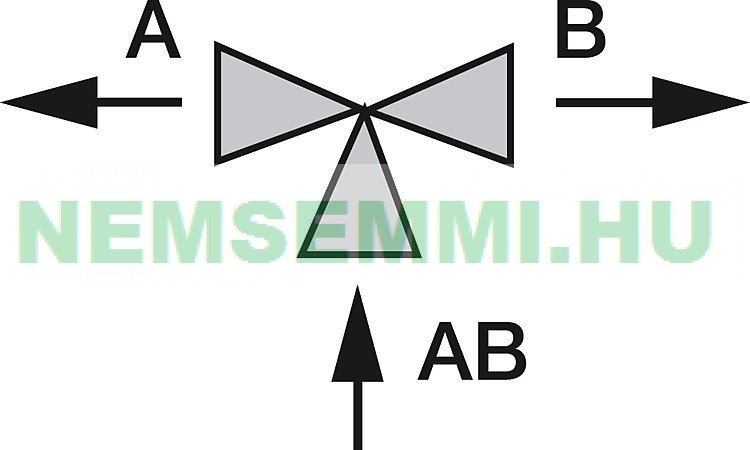

3 It has a 1/2" external thread connector: A, AB, B
It is between AB and B flow, and between AB and A when the valve is energized.
The valve switches under the influence of voltage (e.g. solar collector control, room thermostat), and then the voltage when removed, it automatically returns to its default position.
Can also be switched manually.
