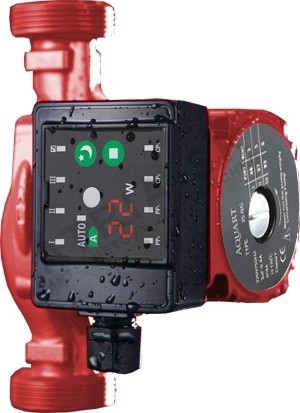

Avansa 32/6/180E 180 "A" energy class circulating pump for electronic self-regulating heating and solar collector system

Energy efficient circulation pump "A"

Type: Avansa 32/6/180E
Connection length: 180 mm
Connector size: 6/4"
Voltage: 230 V
Power: adjustable between 5-45 W
Lift height: 6 meters
Temperature range: -2 +110 C
Maximum pressure: 10 bar
Maximum circulation: 60 liter/minute
Transportable medium: water or a mixture of water and solar antifreeze max. 1:1
For help, the plumbing thread dimensions in inches and millimeters

  Zoll          outer size

The circulation pump is a piece of equipment that is particularly useful in heating, cooling and water supply systems. Here are some areas where it comes in handy:
Heating systems: The circulation pump is responsible for the hot water or heating medium for its circulation between heaters, radiators or underfloor heating systems. This ensures the same temperature throughout the house or building and prevents cold spots from forming.
Cooling systems : The use of the circulation pump in cooling systems helps to circulate the refrigerant more efficiently. This is used, for example, in cars or industrial cooling systems.
Hot water supply: The circulating pump allows hot water to be delivered faster to the for faucets and showers, thus saving time and water.
Pumps in water movement: The circulation pumps are often used to move water in pools, garden ponds and other water systems.
Various industrial applications: Circulation pumps it is also used in industrial environments, for example in material handling, cooling, process control or pumping systems.

Energy-saving circulation pump

The purpose of circulating pumps is usually to move liquid efficiently and comfortably, to ensure heat transfer or to create conditions necessary for other processes. Using them can improve energy efficiency, the efficiency of the entire system, and save time in tasks related to the movement of liquids. is allowed to build.
Indicates the current consumption, heating or solar collector system, heat pump, heating it is recommended to connect it to the
colder branch going to the collector. it is best if it is installed in the vertical branch going up.
The pump should only be installed with a horizontal motor shaft.

• Transparent interface
• Easy programming
• Low power consumption
• Night mode
• Self-regulating mode
• Automatic power control adapted to operating mode

Adjustable operating modes
- Δ p-c for constant pressure difference
- Δ p-v for variable pressure difference
- Manual mode
