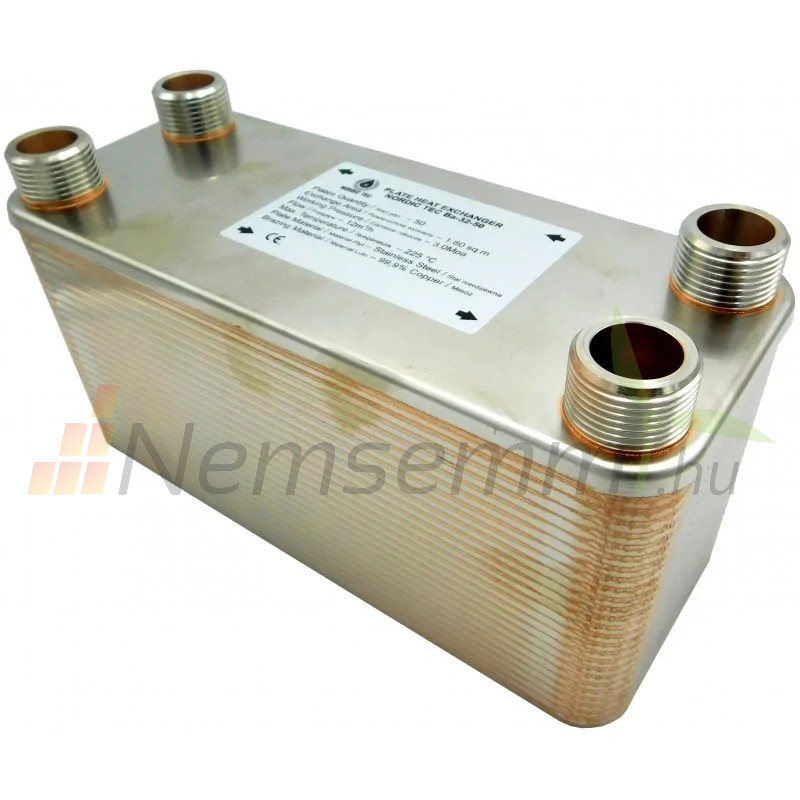

Plate heat exchanger

Maximum output of heat exchanger: 1700kW
Nominal output: 250-420kW
Number of discs: 50
Connection: 2" external thread
Nominal flow: 45 m³/h
Heat exchange surface: 5.75 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 35 kg
Plate material: stainless steel 304 and 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

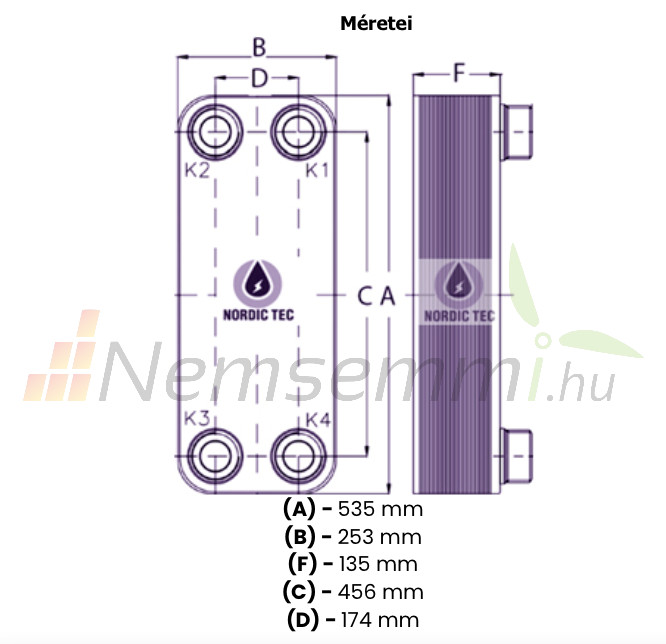

DIMENSIONS:

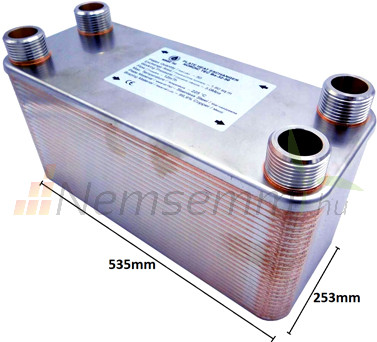

Length (A): 535 mm
Width (B): 253 mm< /span>
Depth (F): 135 mm
Distance (C) : 456 mm
Distance (D): 174 mm

Operation tips:
⋅It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

Plate heat exchanger

Large plate heat exchanger with 2" (DN 50 size) connections. Plate heat exchanger for both cooling and heating. For handling large heat exchangers or buildings operated by cascades of heat pumps or gas boilers, for example suitable.
Not a device for a single-family house, rather designed for larger facilities.

The total heat transfer surface of the 50 plate heat exchanger is 5.75 m².
Features:

- 316L stainless steel, soldered with 99.9% Cu copper

- Heating power 250-420 kW depending on the flow temperature

- Connections 4x 2" (50)

- Operating pressure up to 30 bar

- Test pressure 45-60 bar

- Maximum operating temperature up to +230°C

- Flow rate 45 m³/h

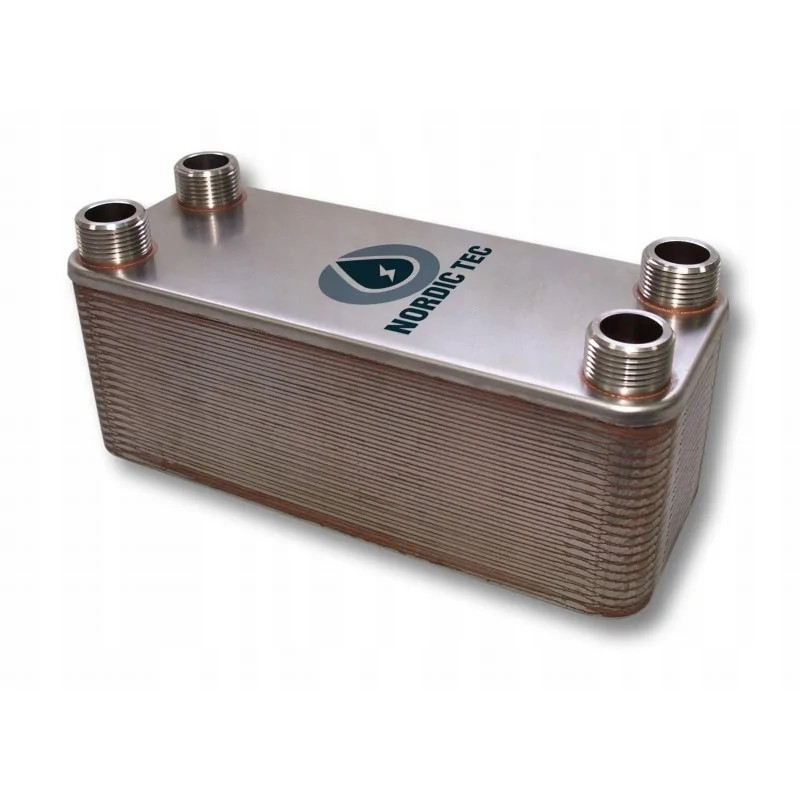

Plate heat exchanger 50 plates 1700kW with 2" external connection Ba-115-50
