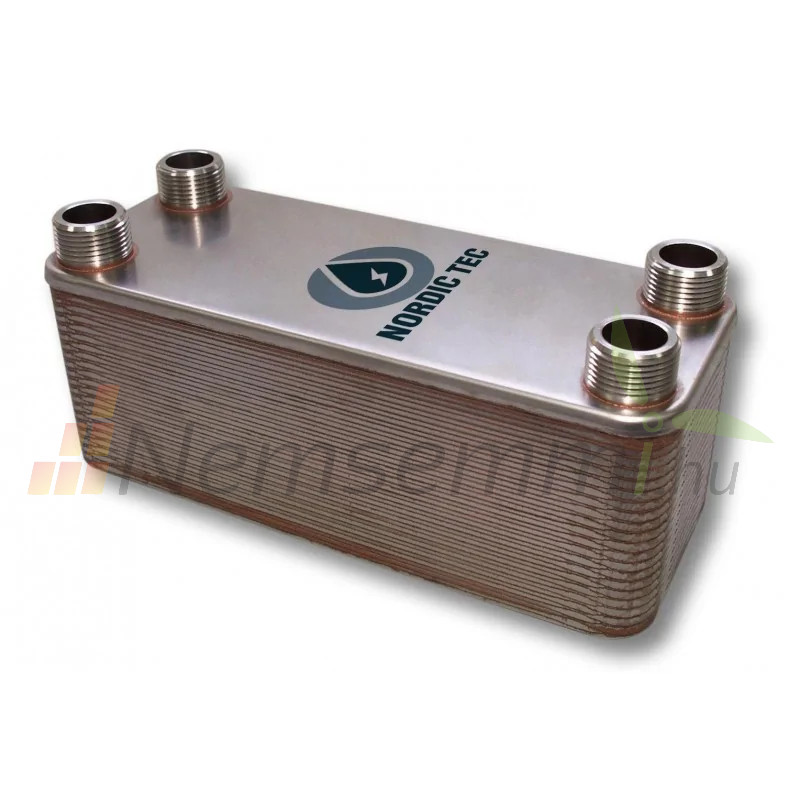

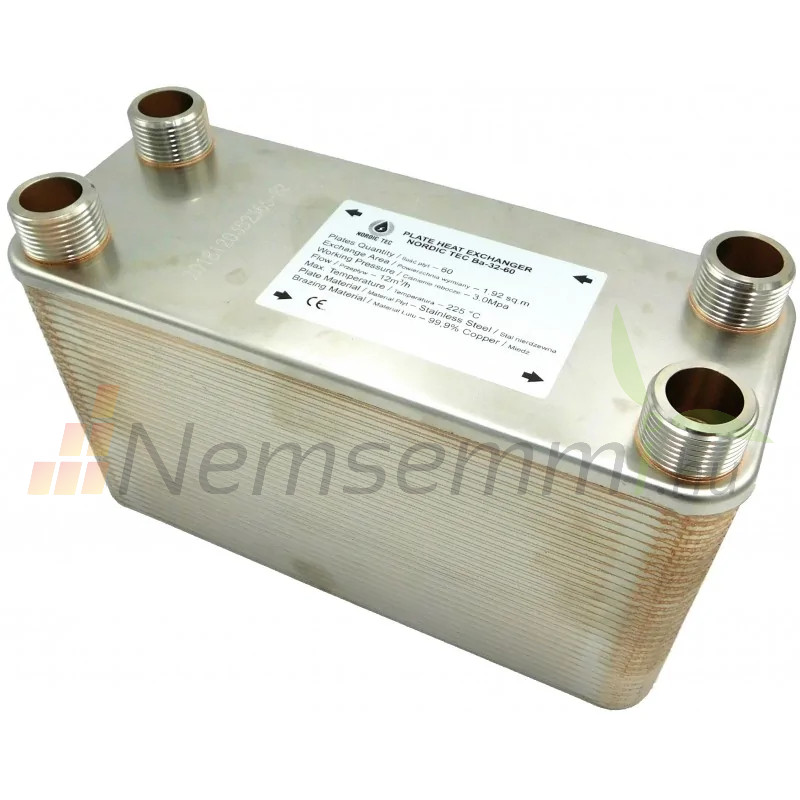

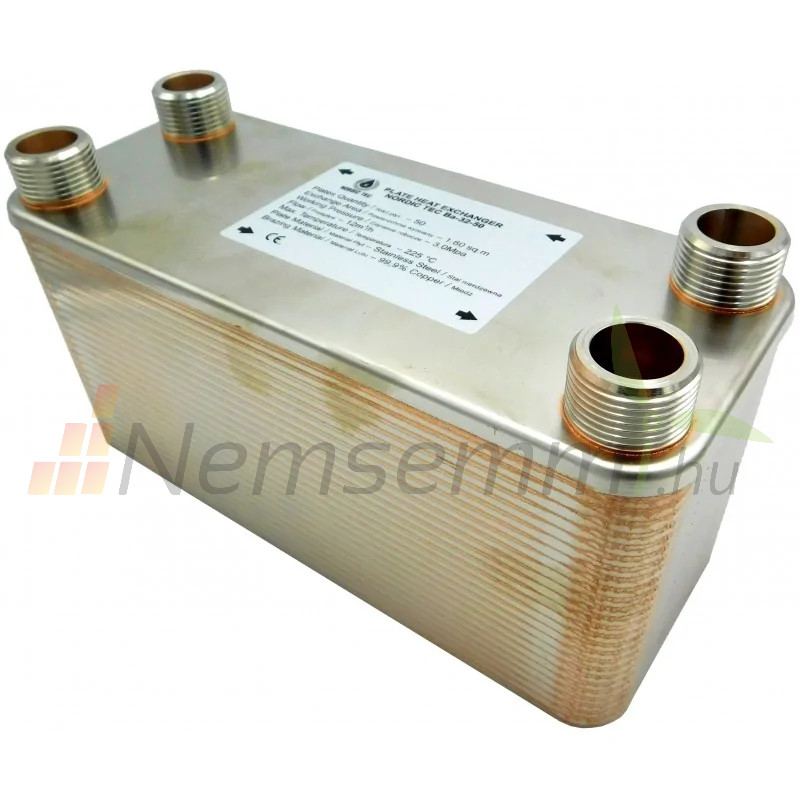

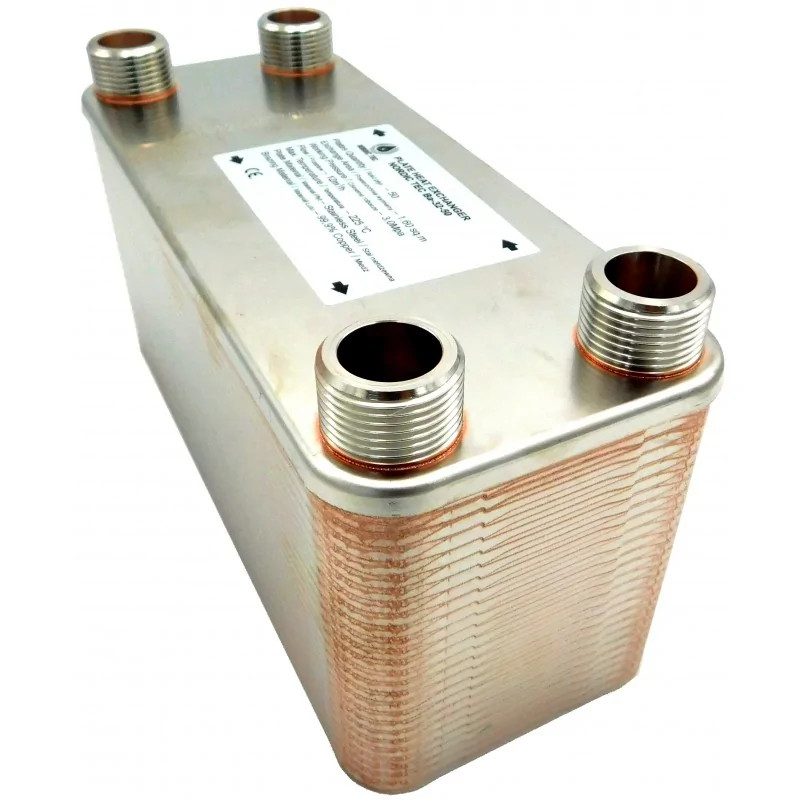

Plate heat exchanger

Maximum power of heat exchanger: 2050kW
Nominal power: 320-500kW
Number of discs: 60
Connection: 2" external thread
Nominal flow: 45 m³/h
Heat exchange surface: 6.90 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 39 kg
Plate material: stainless steel 304 and 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

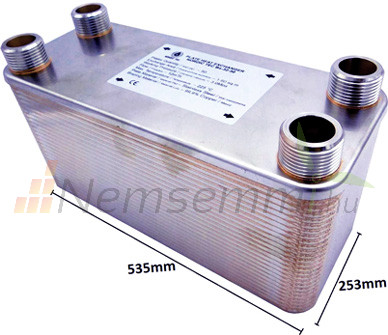

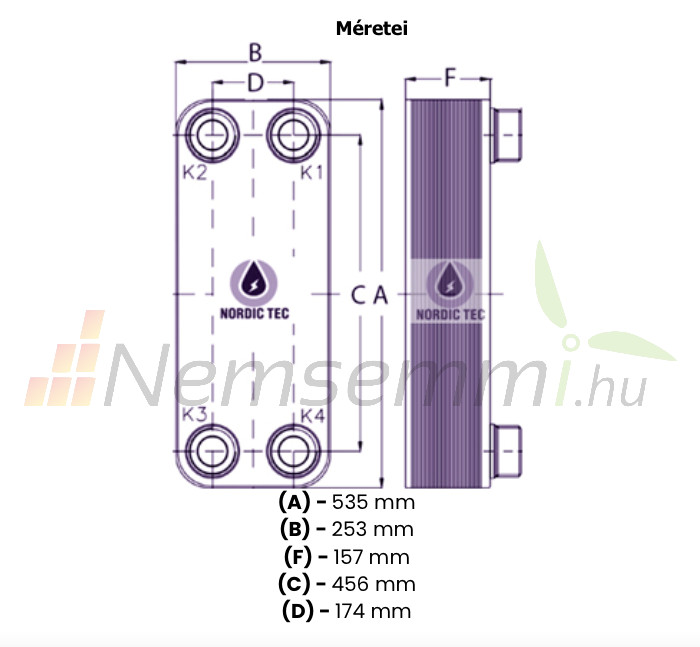

DIMENSIONS:

Length (A): 535 mm
Width (B): 253 mm< /span>
Depth (F): 157 mm
Distance (C) : 456 mm
Distance (D): 174 mm

Operation tips:
⋅It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

Plate heat exchanger

A model with a large plate surface (6.90 m²), which is used more for large heating or cooling systems.

The Ba-115-60 heat exchanger can be used together with heaters or larger heat pumps, e.g. in heating large facilities such as hotels, warehouses, office buildings or warehouse and production halls.

Features:

- 316L stainless steel, soldered with 99.9% Cu copper

- Heating power 320-500 kW depending on the flow temperature

- Connections 4x 2" (50)

- Operating pressure up to 30 bar

- Test pressure 45-60 bar

- Maximum operating temperature up to +230°C

- Flow rate 45 m³/h

Plate heat exchanger 60 plates 2050kW with 2" external connection Ba-115-60
