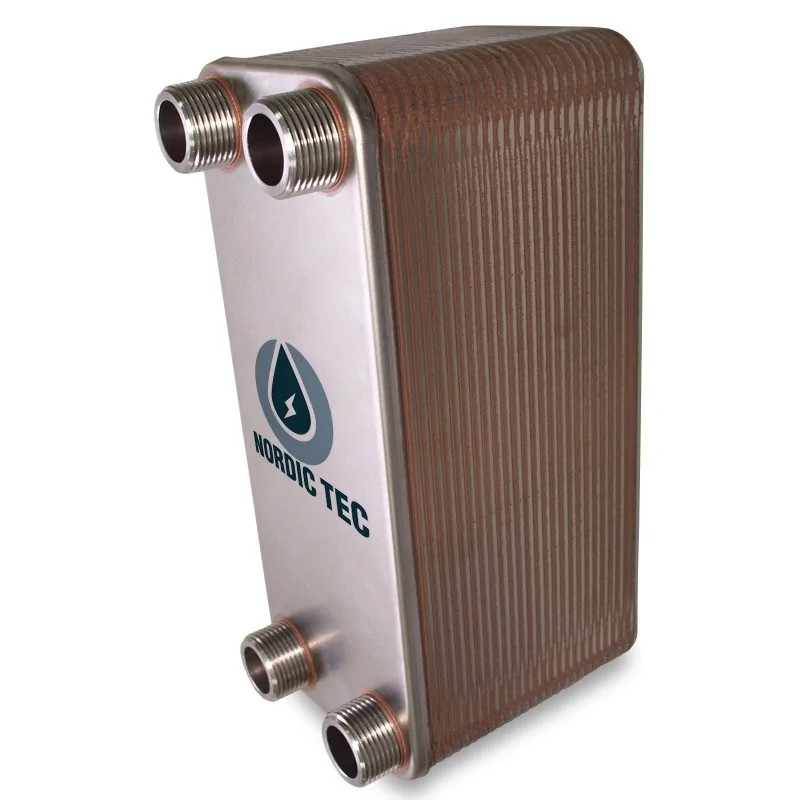

Plate heat exchanger 90 plates 3150kW with 2" external connection Ba-115-90

Plate heat exchanger

Maximum output of heat exchanger: 3150kW
Nominal output: 420-720kW
Number of discs: 90
Connection: 2" external thread
Nominal flow: 45 m³/h
Heat exchange surface: 10,350 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 55 kg
Plate material: stainless steel 304 and 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

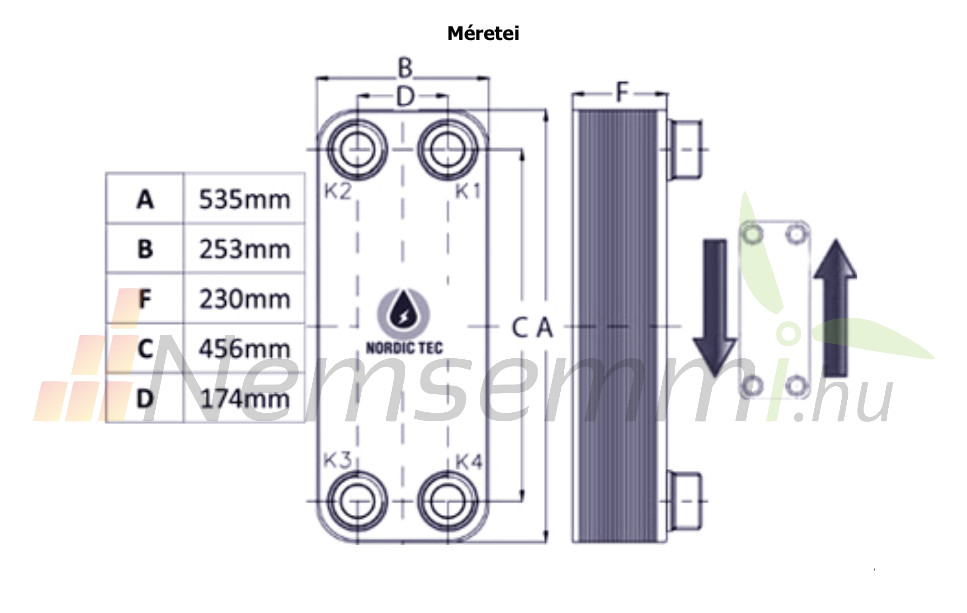

DIMENSIONS:

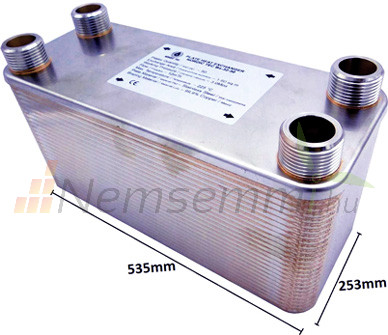

Length (A): 535 mm
Width (B): 253 mm< /span>
Depth (F): 230 mm
Distance (C) : 456 mm
Distance (D): 174 mm

Operation tips:
⋅It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

Plate heat exchanger

Please check your availability before ordering!< /span>

Plate heat exchanger with 90 plates, 2" heat transfer unit for heating and cooling systems. Provides reliable performance thanks to the large surface area of ​​the steel plates. The 90 plate heat exchanger is specially designed for demanding applications and provides efficient heat exchange ensures between two media, i.e. media flowing through the 2 channels of the heat exchanger style="color: #000000;">2" makes it versatile and suitable for various industrial applications, guaranteeing relatively high throughput. Thanks to its capacity, it also works well as a heat exchanger for large heat pumps. Definitely not a heat exchanger intended for single-family homes or systems of this size.

Features:

- 316L stainless steel, soldered with 99.9% Cu copper

- Heating power 420-720 kW depending on the flow temperature

- Connections 4x 2" (50)

- Operating pressure up to 30 bar

- Test pressure 45-60 bar

- Maximum operating temperature up to +230°C

- Flow rate 45 m³/h
