Heat exchanger with support and insulation

Maximum power of heat exchanger: 25kW

Rated power: 5-15kW

Number of discs: 12

Connection: 4x3/4" external thread

Nominal flow: 4 m³/h

Heat exchange surface: 0.144 m²

Operating pressure: 10 bar

Test pressure: 20 bar

Min. temperature: -195°C

Max. temperature: +230°C

Weight: 800g

Plate material: stainless steel 304 or 316

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 191mm

Width (B): 73mm

Depth (F): 34mm

Distance (C): 154mm

Distance (D): 40mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 3/4"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

25kW heat exchanger

12 plate stainless design

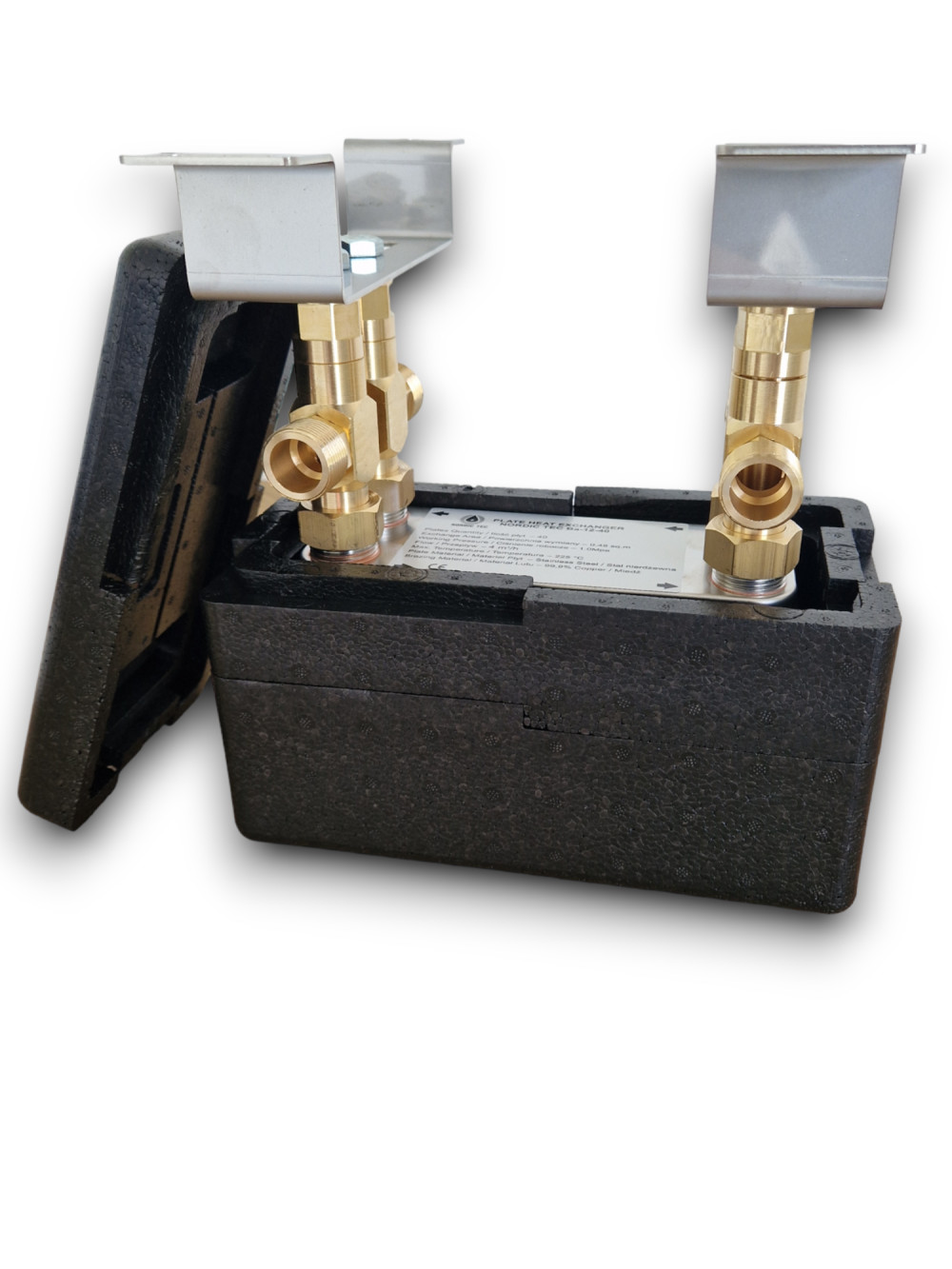

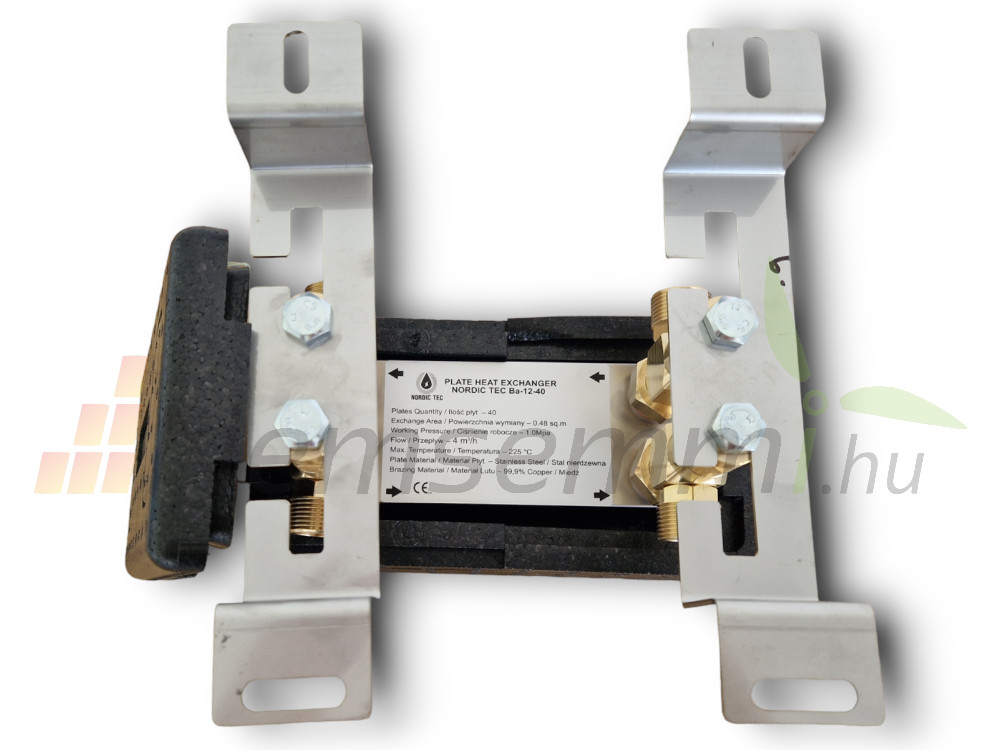

Heat exchanger with support structure, including insulation.

Plate heat exchanger with insulation 12 plates 25kW with 3/4" external connection, support structure and insulation Ba-12-12
