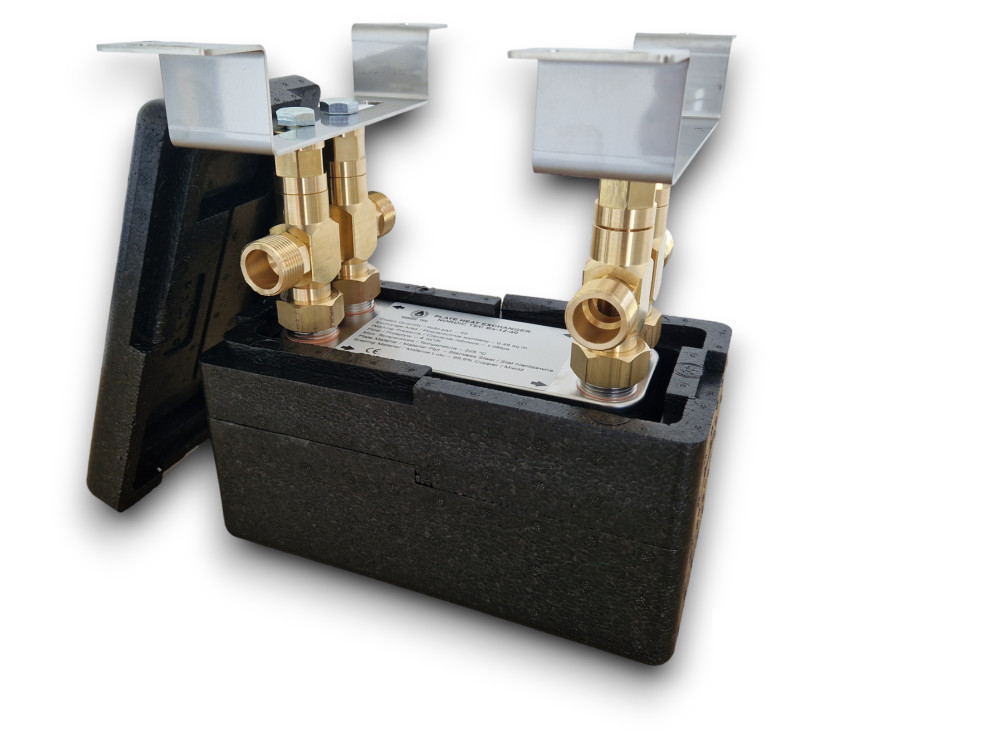

Heat exchanger with support and insulation

Maximum output of heat exchanger: 50kW
Nominal output: 820kW
Number of disks: 12
Connection: 1" external thread
Nominal flow: 8 m³/h
Heat exchange surface: 0.192 m²
Operating pressure: 20 bar
Test pressure: 40 bar
Min. temperature: -195°C
Max. temperature: +230°C
Weight: 1500g
Plate material: stainless steel 304 or 316
Soldering material: 99.9% Cu

DIMENSIONS:
Length (A): 220 mm
Width (B): 90 mm
Depth (F): 33 mmDistance (C): 180 mm
Distance (D): 52 mm

Operation tips:
⋅ It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

Heat exchanger support bracket

Connector size: 1"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

50kW heat exchanger

12 plate stainless design

Heat exchanger with support structure, including insulation.

Plate heat exchanger with insulation 12 plates 50kW with 1" external connection, support structure and insulation Ba-16-12
