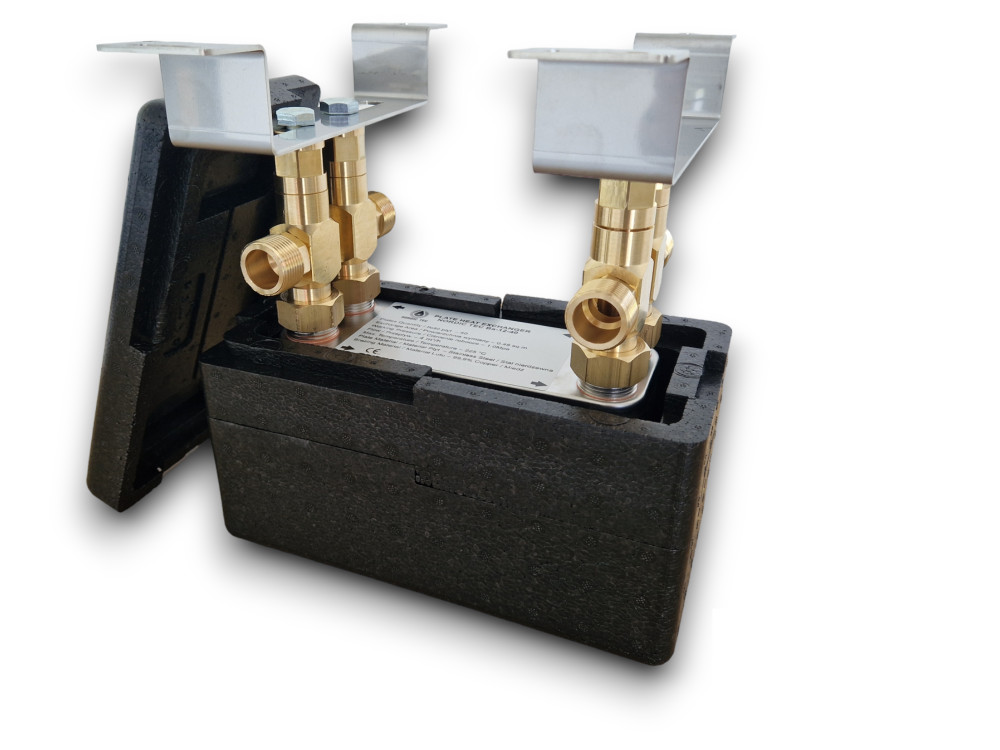

Heat exchanger with support and insulation

Maximum power of heat exchanger: 100kW

Rated power: 15-30 kW

Number of discs: 24

Connection: 4x1" external thread

Nominal flow: 8 m³/h

Heat exchange surface: 0.384 m²

Operating pressure: 20 bar

Test pressure: 45 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 1950 g

Plate material: stainless steel 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 220 mm

Width (B): 90 mm

Depth (F): 61 mm

Distance (C): 180 mm

Distance (D): 52 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 1"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

100kW heat exchanger

24 plate stainless design

Heat exchanger with support structure, including insulation.

Plate heat exchanger with insulation 24 plates 100kW 1" with external connection, support structure and insulation Ba-16-24
