Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum power of heat exchanger: 200kW

Rated power: 32-60kW

Number of discs: 60

Connection: 4x 1” external thread

Nominal flow: 8 m³/h

Heat exchange surface: 0.960 m²

Operating pressure: <20 bar

Test pressure: 40 bar

Max. temperature: +230°C

Plate material: stainless steel 304 or 316

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 220 mm

Width (B): 90 mm

Depth (F): 144 mm

Distance (C): 180 mm

Distance (D): 52 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 1"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

200kW heat exchanger

60 plate stainless version

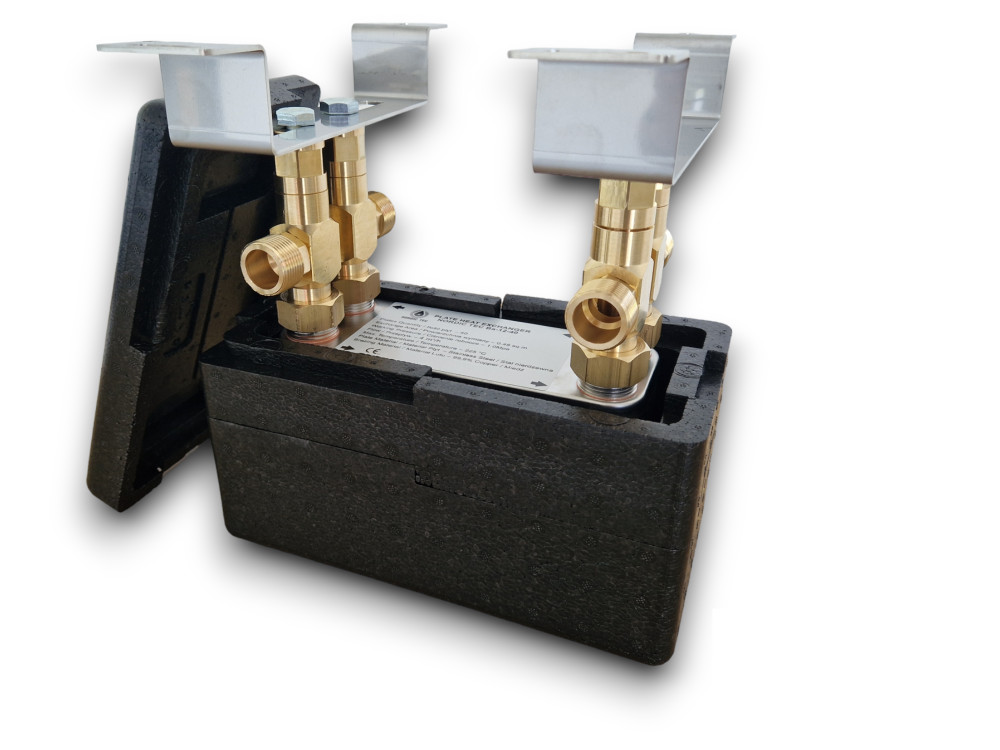

Heat exchanger with support structure, including insulation.

Plate heat exchanger with insulation 60 plates 200kW with 1" external connection, support structure and insulation Ba-16-60
