Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum power of heat exchanger: 255kW

Rated power: 40-65kW

Number of discs: 60

Connection: 4x3/4" external thread

Flow rate: 4 m³/h

Heat exchange surface: 1,380 m²

Operating pressure: 20 bar

Test pressure: 45 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 4500 g

Plate material: stainless steel 316

Slab thickness: 0.3 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 315 mm

Width (B): 73 mm

Depth (F): 144 mm

Distance (C): 278 mm

Distance (D): 40 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Heat exchanger support bracket

Connector size: 3/4"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

255kW heat exchanger

60 plate stainless version

Heat exchanger with support structure, including insulation.

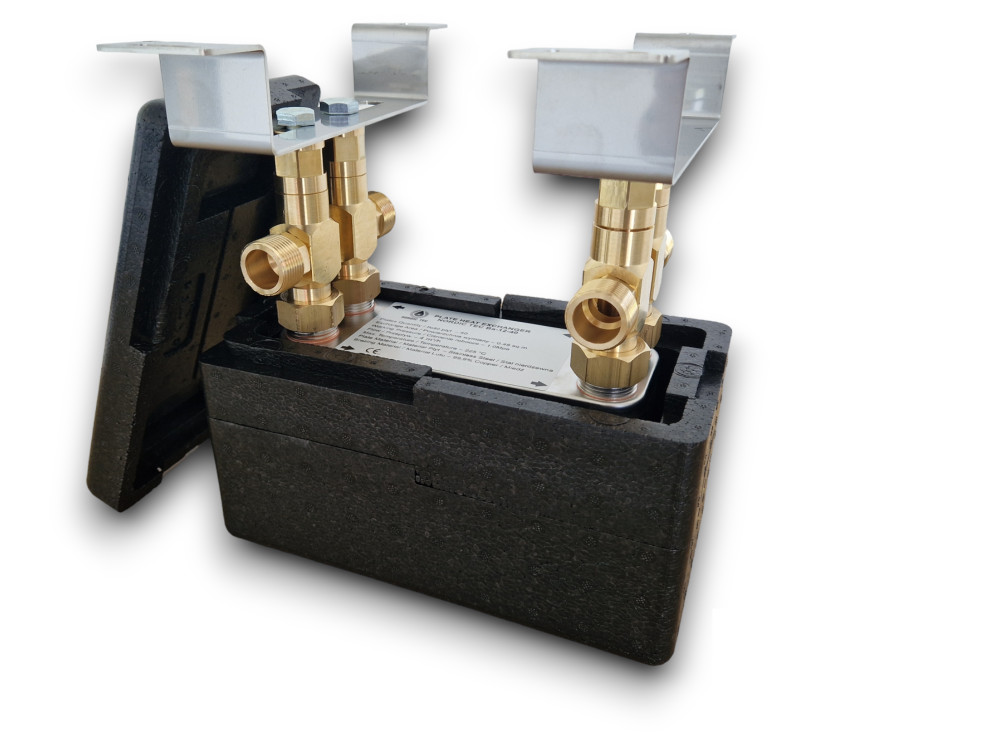

Plate heat exchanger with insulation 60 plates 255kW with 3/4" external connection, support structure and insulation Ba-23-60

Heat exchanger with support and insulation

Heat exchanger complete set
