Plate heat exchanger 70 plates 290 kW 4x3/4" external connection with support structure

• Details
• Info

Details

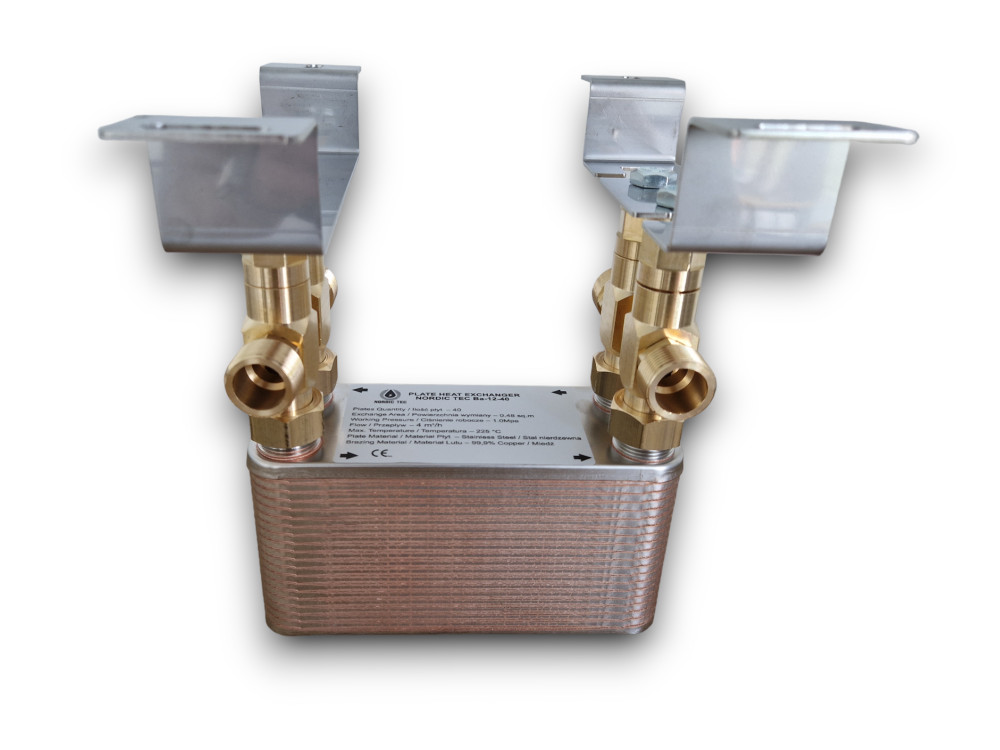

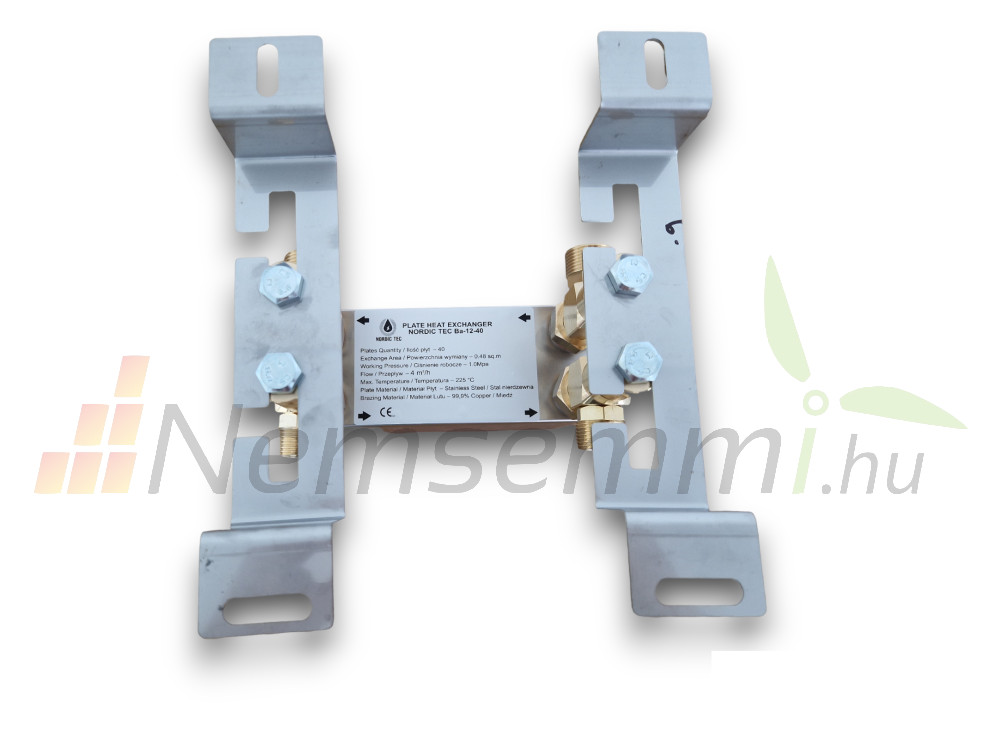

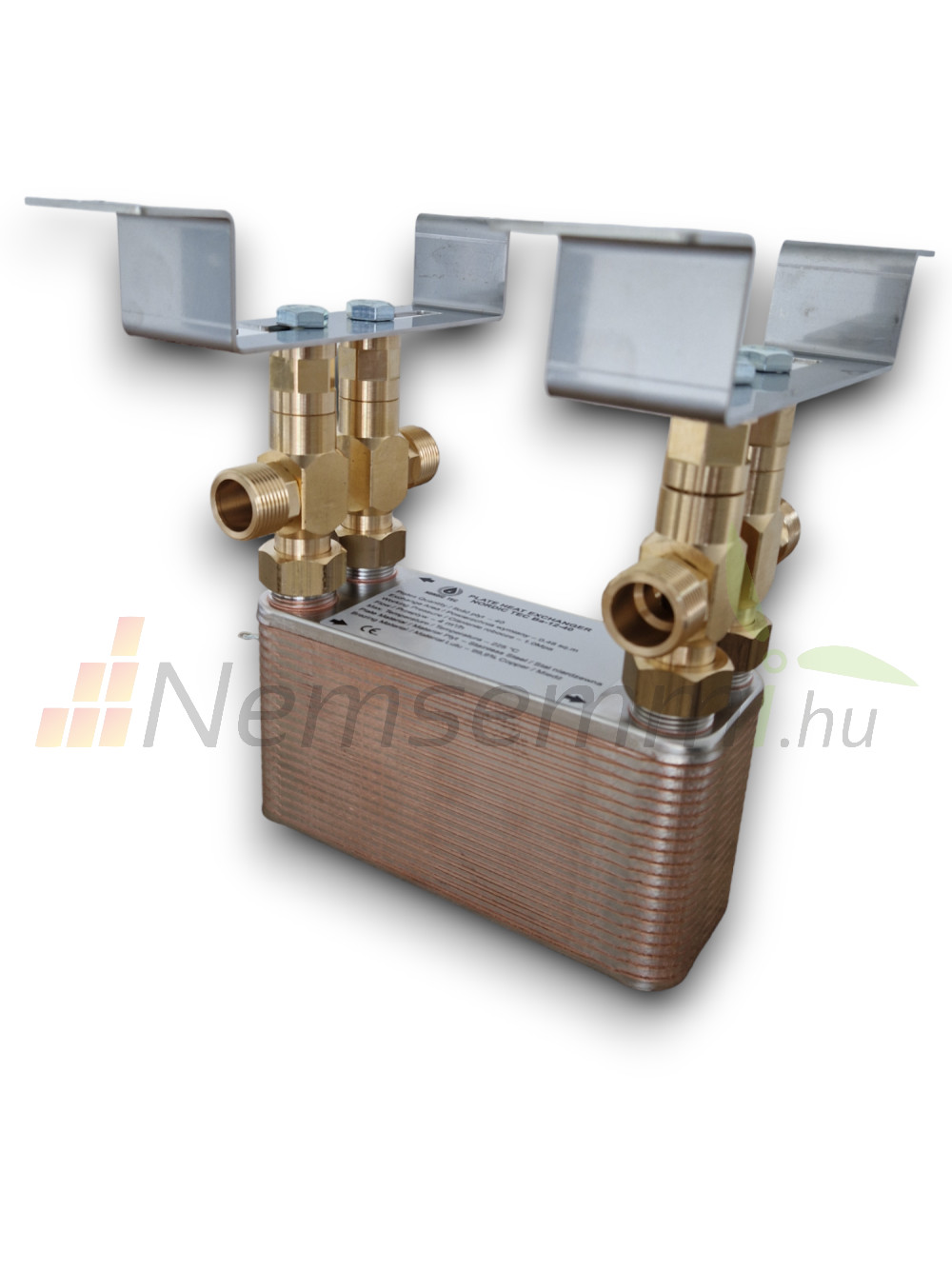

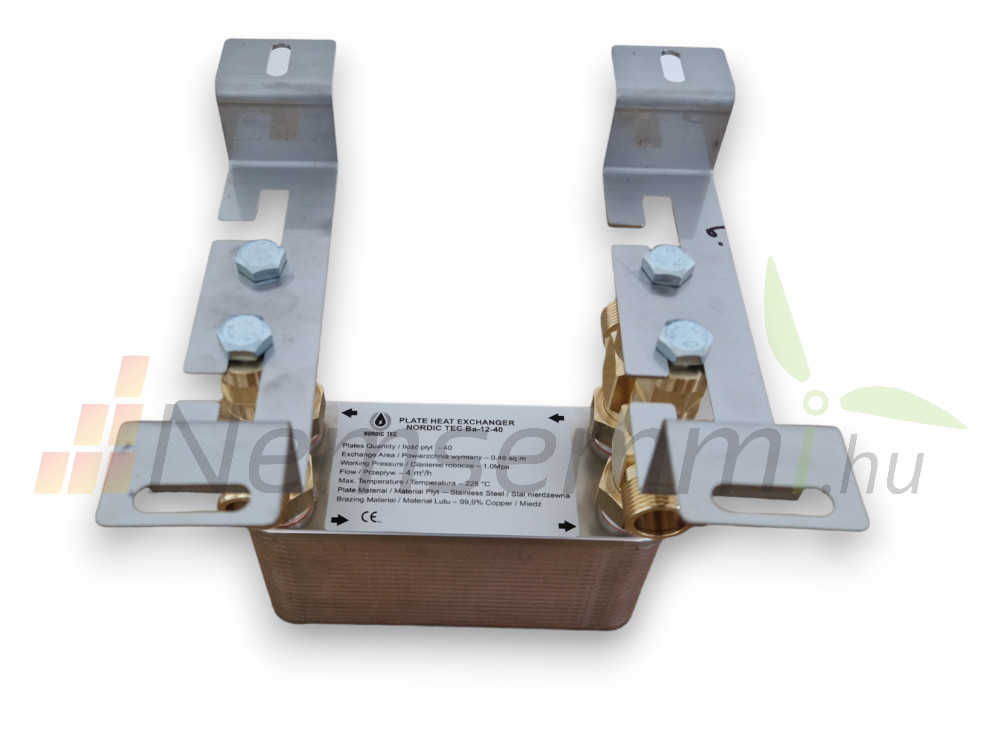

Heat exchanger with holder

Maximum output of heat exchanger: 290kW
Nominal output: 45-80kW
Number of discs: 70
Connection: 4x3/4" external thread
Flow rate: 4 m³/h
Heat exchange surface: 1,610 m²
Operating pressure: 20 bar
Test pressure: 45 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 6000 g
Plate material: stainless steel 316
Plate thickness: 0.3 mm
Solder material: 99.9% Cu

DIMENSIONS:
Length (A): 315 mm
Width (B): 73 mm
Depth (F): 147 mm
Distance (C): 278 mm
Distance ( D): 40 mm

Operation tips:
⋅ It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

Heat exchanger support bracket

Connector size: 3/4"
Connector material: copper

More information:

Heat exchanger with support structure

290 kW plate heat exchanger

70 plate stainless design

With support structure.

Info

Vonalkód:

3202312211424

EAN kód:

5202307110926

MPN:

NS07110926

Weight:

7 kg/pcs
