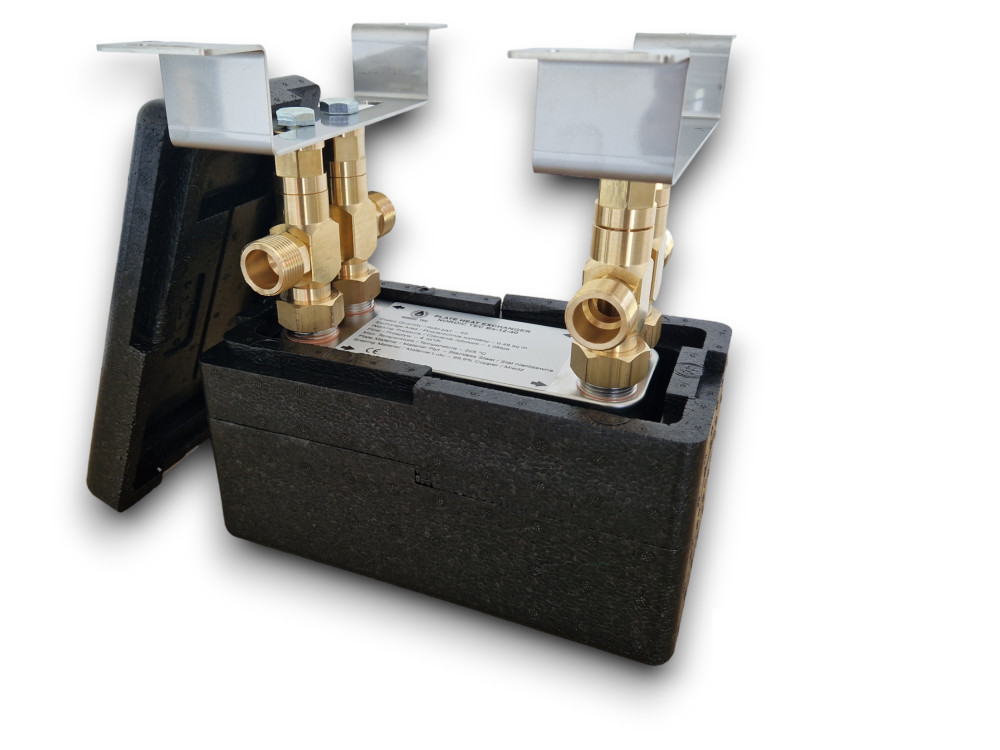

Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum output of heat exchanger: 290kW
Nominal output: 45-80kW
Number of discs: 70
Connection: 4x3/4" external thread
Flow rate: 4 m³/h
Heat exchange surface: 1,610 m²
Operating pressure: 20 bar
Test pressure: 45 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 6000 g
Plate material: stainless steel 316
Plate thickness: 0.3 mm
Solder material: 99.9% Cu

DIMENSIONS:
Length (A): 315 mm
Width (B): 73 mm
Depth (F): 147 mm
Distance (C): 278 mm
Distance ( D): 40 mm

Operation tips:
⋅ It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

Heat exchanger support bracket

Connector size: 3/4"

Connector material: copper

Heat exchange insulation

Material: foamed, heat-resistant plastic
Material thickness: 20 mm
Heat load : max. 180 °C
The excellent thermal conductivity: 0.0029 W/(m x H) provides optimal insulation

More information:

Heat exchanger complete set

290kW heat exchanger

70 plate stainless design

Heat exchanger with support structure, including insulation.

Plate heat exchanger with insulation 70 plates 290kW with 3/4" external connection, support structure and insulation Ba-23-70
