Heat exchanger with support and insulation

< meta charset="UTF-8" />

Maximum power of heat exchanger: 385kW

Rated power: 70-150kW

Number of discs: 70

Connection: 4x1” external thread

Nominal flow: 12 m³/h

Heat exchange surface: 2.24 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 10.5 kg

Plate material: stainless steel 304 and 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm

Width (B): 116 mm

Depth (F): 175 mm

Distance (C): 243 mm

Distance (D): 72 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

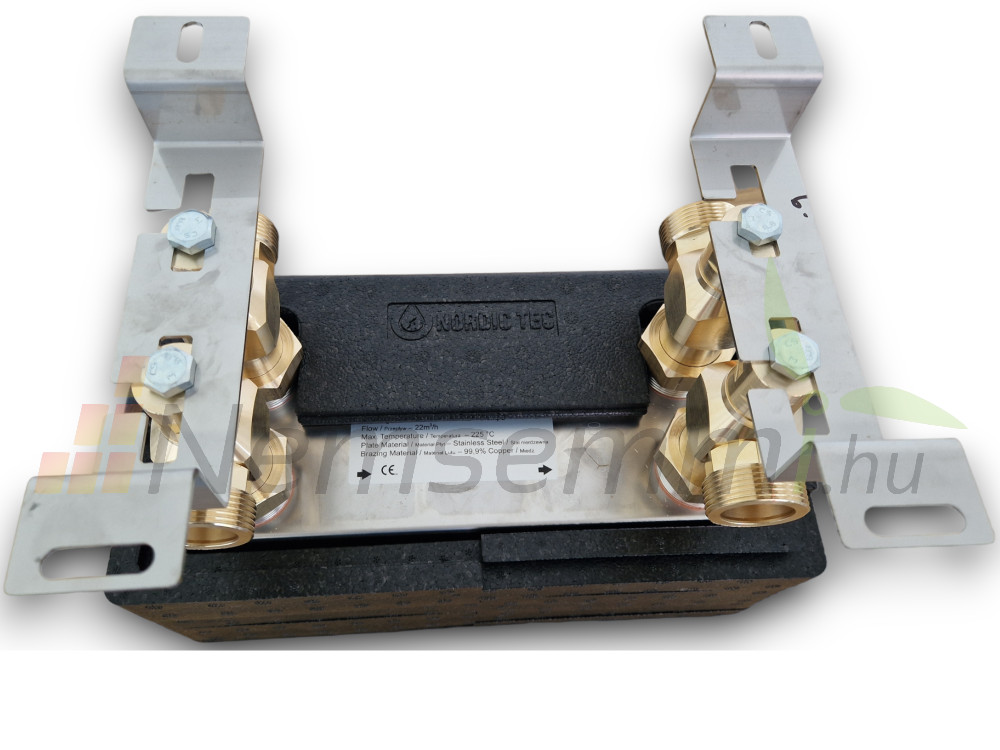

Heat exchanger support bracket

Connector size: 4x1"

Connector material: copper

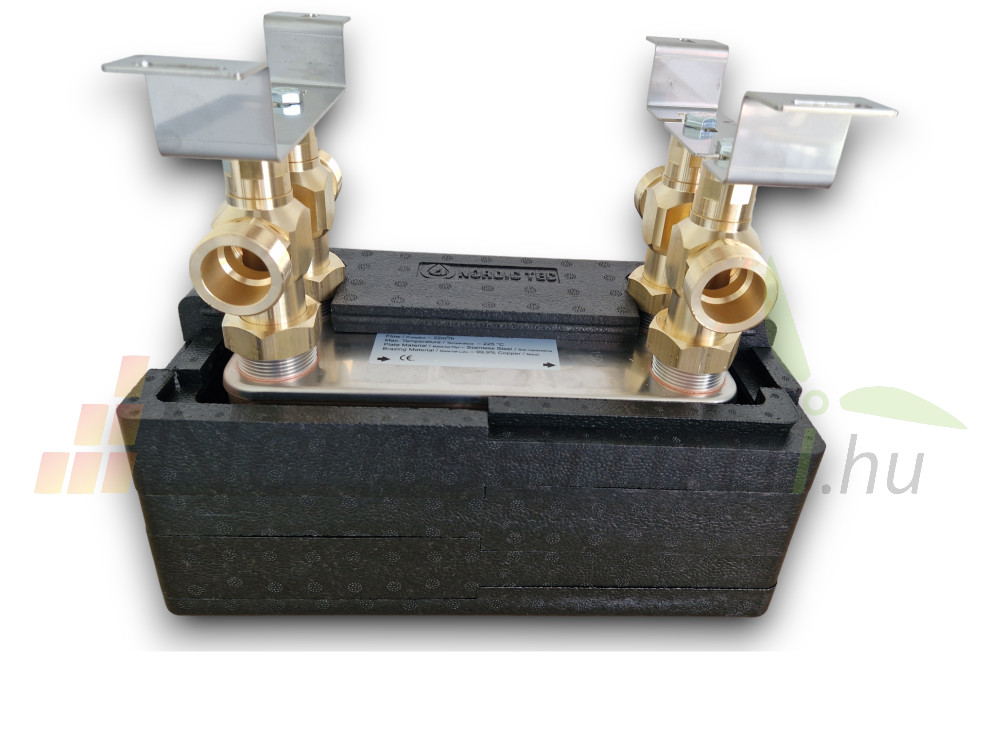

Heat exchange insulation

Material: polypropylene foam
Material thickness: 22-24 mm
Maximum operating temperature: 115°C
The excellent thermal conductivity factor: 0.0029 W/(m x K) provides optimal insulation

More information:

Heat exchanger complete set

385kW heat exchanger

70 plate stainless design

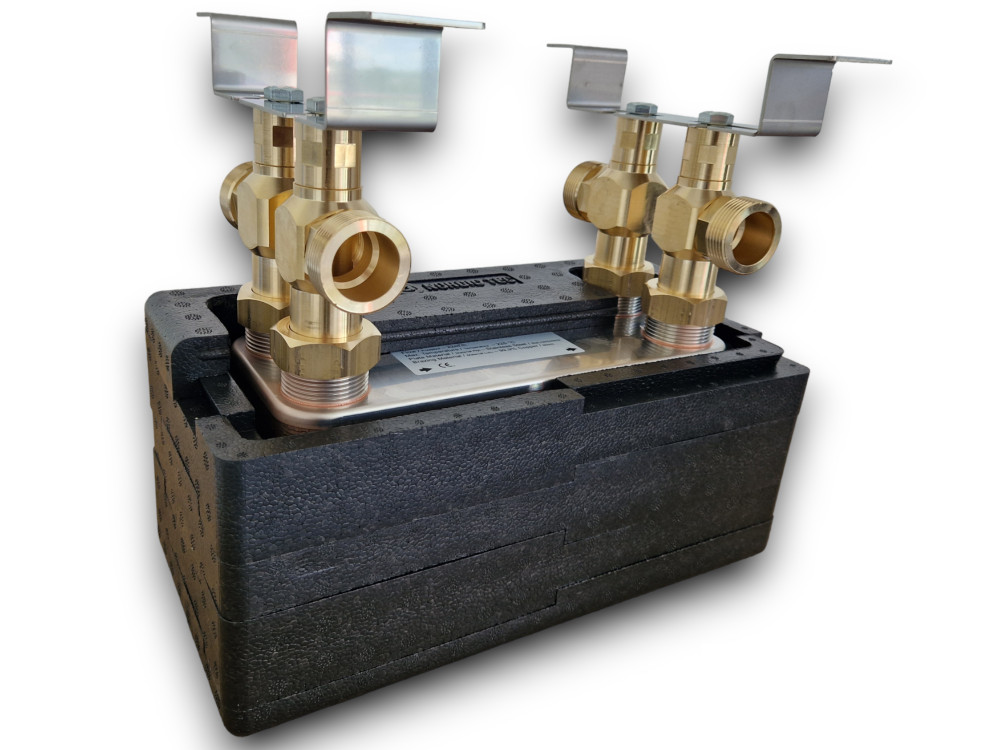

Heat exchanger with support structure, including insulation.

Plate heat exchanger 70 plates 385kW 1" external connection, with support structure and insulation Ba-32-70

Heat exchanger with support and insulation

Heat exchanger complete set
