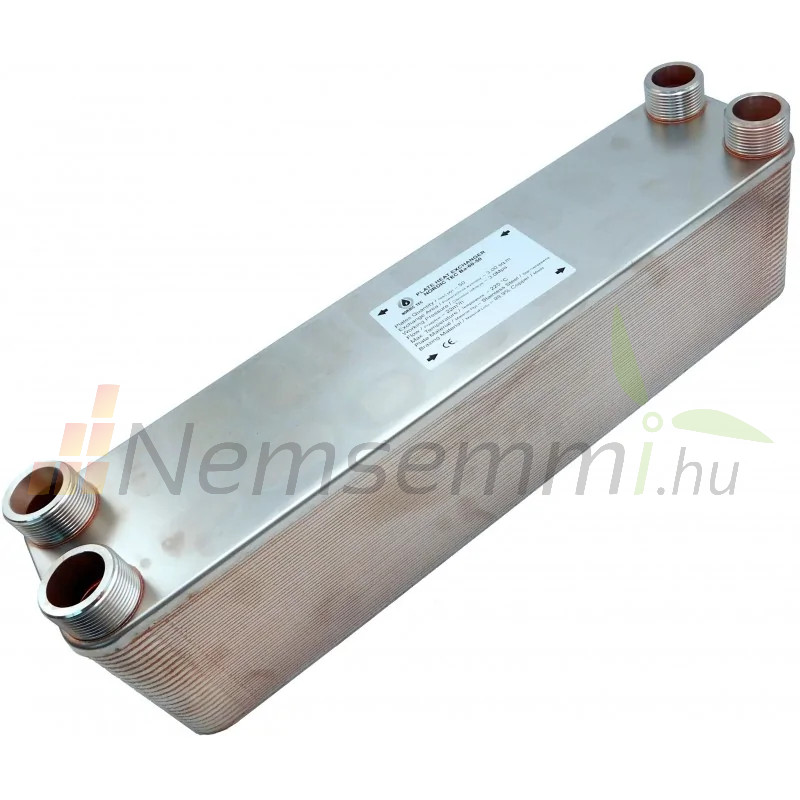

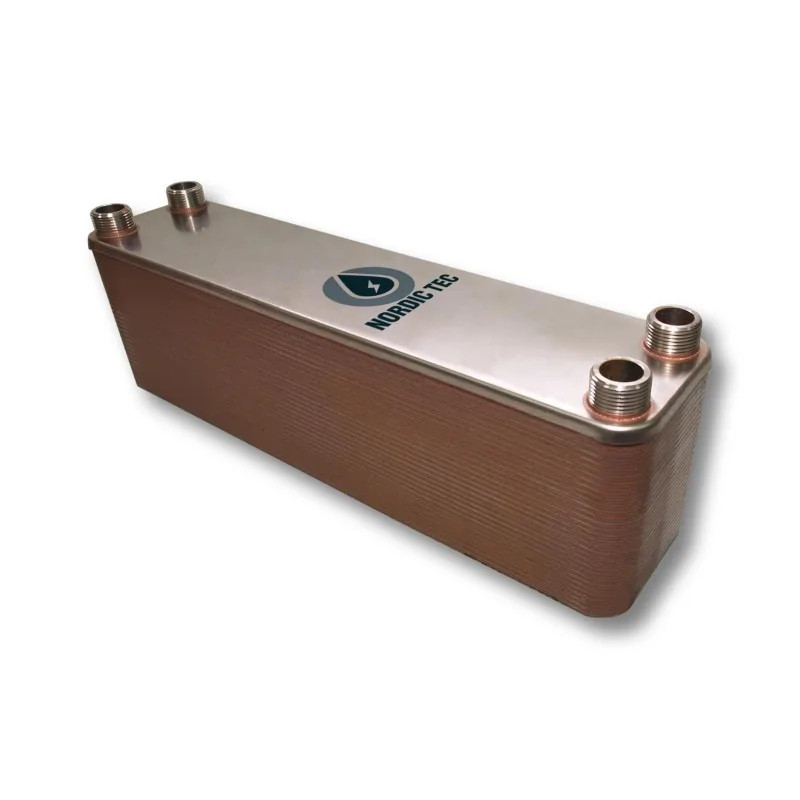

Plate heat exchanger

Maximum output of heat exchanger: 880kW
Nominal output: 160-310kW
Number of discs: 80
Connection: 4x 1½" external thread
Nominal flow: 22 m³/h
Heat exchanger side: 4.80 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min . temperature: -190°C
Max. temperature: +225°C
Weight: 22.5 kg
Plate material: stainless steel 304 and 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

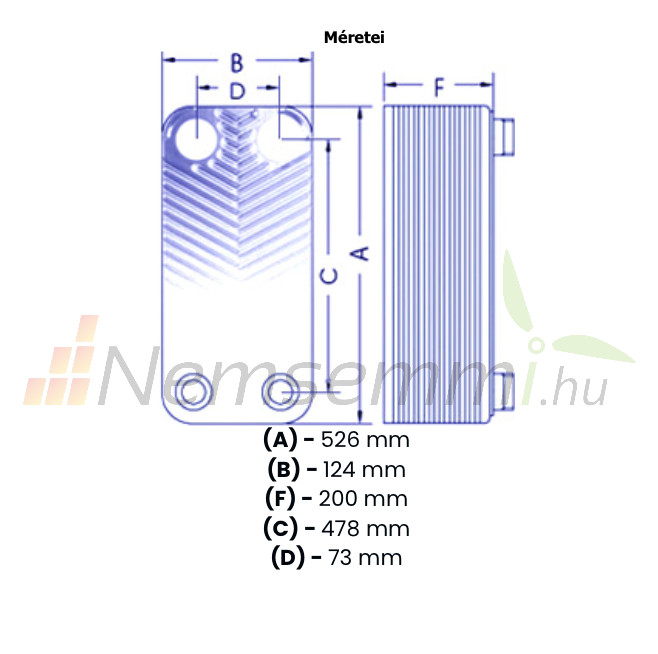

DIMENSIONS:

Length (A): 526 mm
Width (B): 124 mm< /span>
Depth (F): 200 mm
Distance (C) : 478 mm
Distance (D): 73 mm

Operation tips:
⋅It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

Plate heat exchanger

880kW heat exchanger
80 plate stainless design
< span style="color: #000000;">Features:

Made of 316L stainless steel soldered with 99.9% Cu copper
Heating power between 160 and 310 kW, depending on the supply temperature.
Operating pressure - up to 30 bar
Test pressure - 45-60 bar
Maximum operating temperature: up to +230°C
Flow speed 22 m³/h

Plate heat exchanger 80 plates 526 mm long 880kW 4x1 1/2" with external connection
