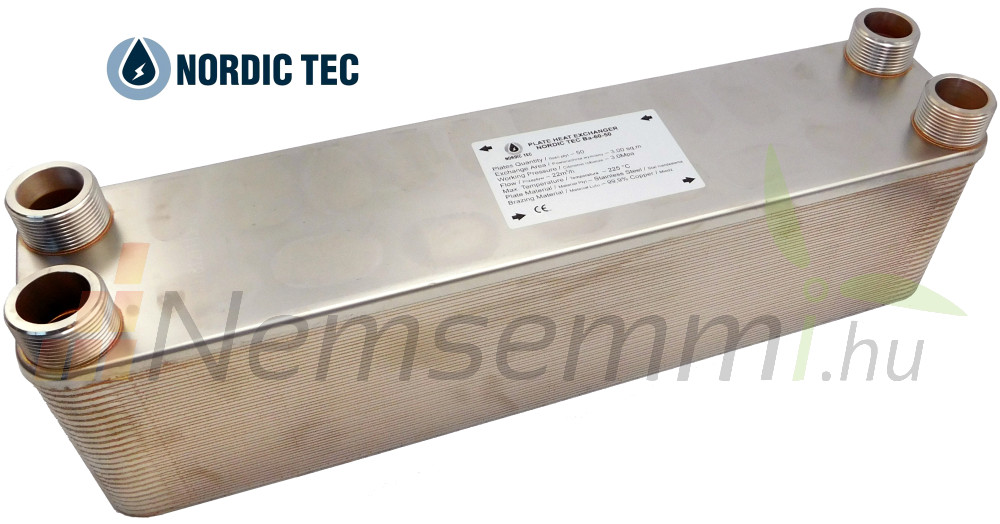

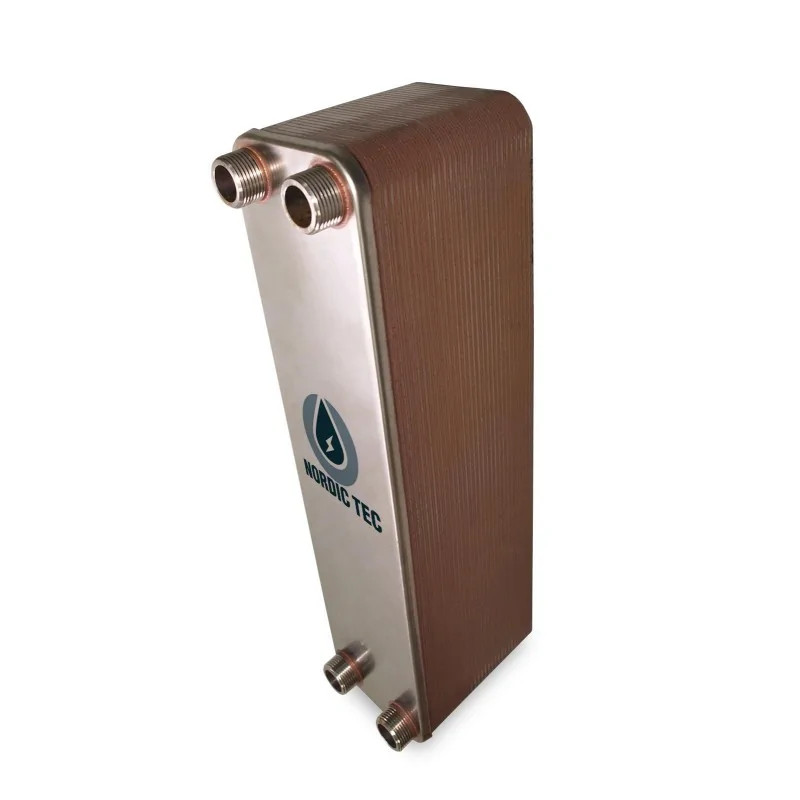

Plate heat exchanger 90 plates 526 mm long 990kW 4x1 1/2" with external connection

Plate heat exchanger

Maximum output of heat exchanger: 990kW
Nominal output: 180-340kW
Number of discs: 90
Connection: 4x 1½" external thread
Nominal flow: 22 m³/h
Heat exchanger side: 5.40 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min . temperature: -190°C
Max. temperature: +225°C
Weight: 24.5 kg
Plate material: stainless steel 304 and 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

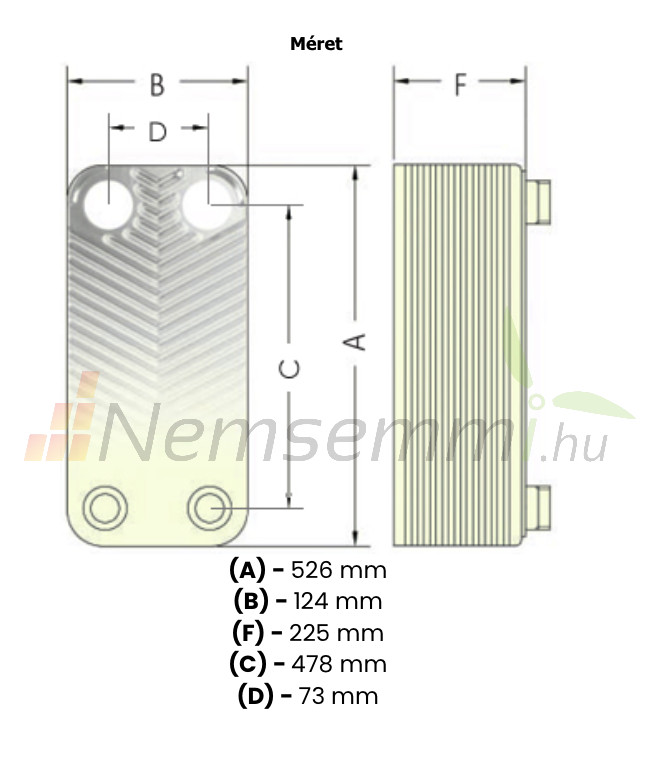

DIMENSIONS:

Length (A): 526 mm
Width (B): 124 mm< /span>
Depth (F): 225 mm
Distance (C) : 478 mm
Distance (D): 73 mm

Operation tips:
⋅It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

Plate heat exchanger

990kW heat exchanger
90 plate stainless design

This model has 4x1 1/2” connections, allowing for greater capacity. The flow rate of the exchanger design itself (nominally 22 m³/h), but note that the 1 1/2" pipe size is 15.50 m³/h provides maximum flow rate.

The heat exchanger itself is often chosen for industrial or commercial applications such as central heating and hot water systems in office buildings, hotels, restaurants, warehouses, department stores, schools and even churches.

The unit was created using the proven method of joining steel sheets together. Each plate of this heat exchanger has a heat exchange surface of 0.060 m². If we multiply this value by the number of plates (90 in this case), we get the transfer surface of 5.40m².
