Plate heat exchanger

Maximum output of heat exchanger: 700kW
Nominal output: 120-200kW
Number of discs: 30
Connection: 2" external thread
Nominal flow: 35 m³/h
Heat exchange surface: 2,850 m²
Operating pressure: 30 bar
Test pressure: 45-60 bar
Min. temperature: -190°C
Max. temperature: +225°C
Weight: 18 kg
Plate material: stainless steel 304 and 316
Plate thickness: 0.4 mm
Solder material: 99.9% Cu

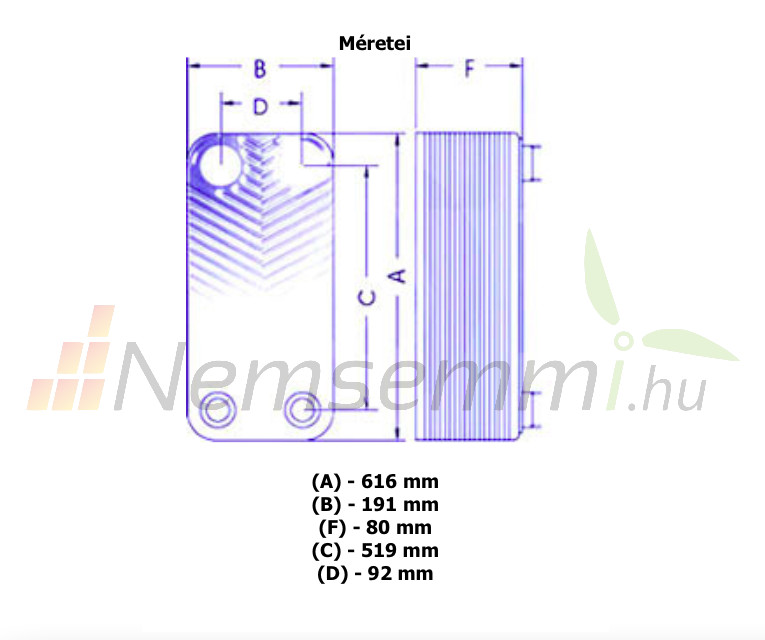

DIMENSIONS:

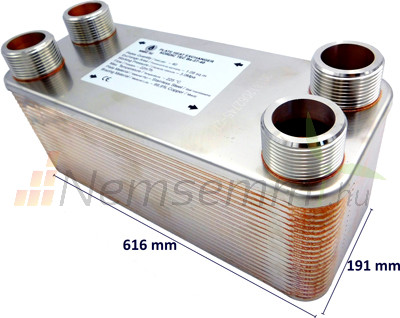

Length (A): 616 mm
Width (B): 191 mm< /span>
Depth (F): 80 mm
Distance (C) : 519 mm
Distance (D): 92 mm

Operation tips:
⋅It is recommended to install the heat exchanger vertically
⋅The sides must be connected in countercurrent
⋅Periodic cleaning must be carried out on a heat exchanger

More information:

Plate heat exchanger

700kW heat exchanger
30 plate stainless design
< span style="color: #000000;">Features:

heat exchanger made of 316 L stainless steel, soldered with 99.9% Cu copper
heating power between 120 and 200 kW, depending on the flow temperature.
connections 2"
permitted operating pressure up to 30 bar
test pressure 45-60 bar
maximum operating temperature up to +230°C
flow rate up to 35 m³/h

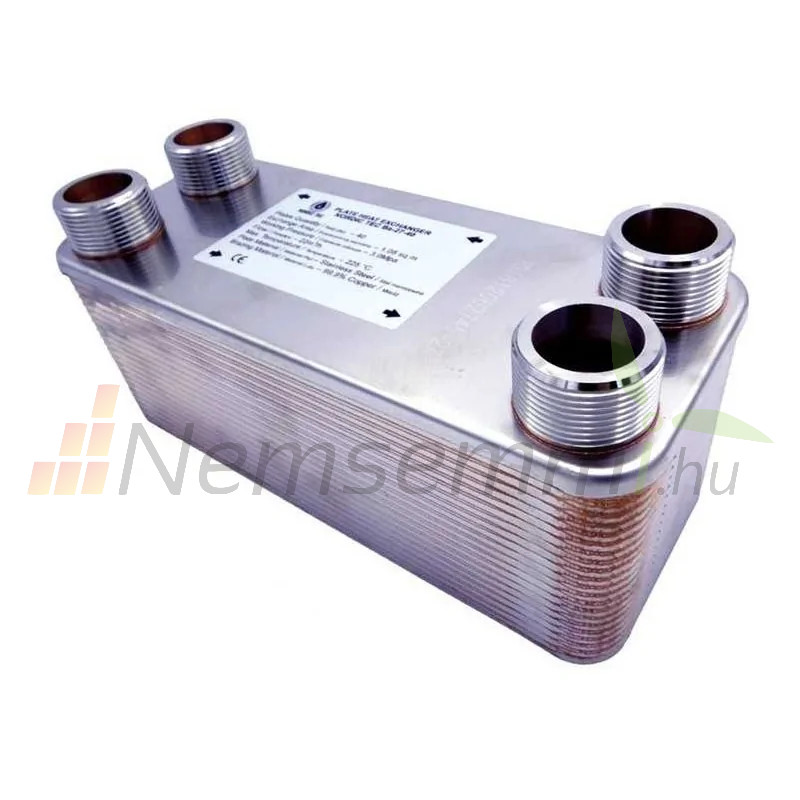

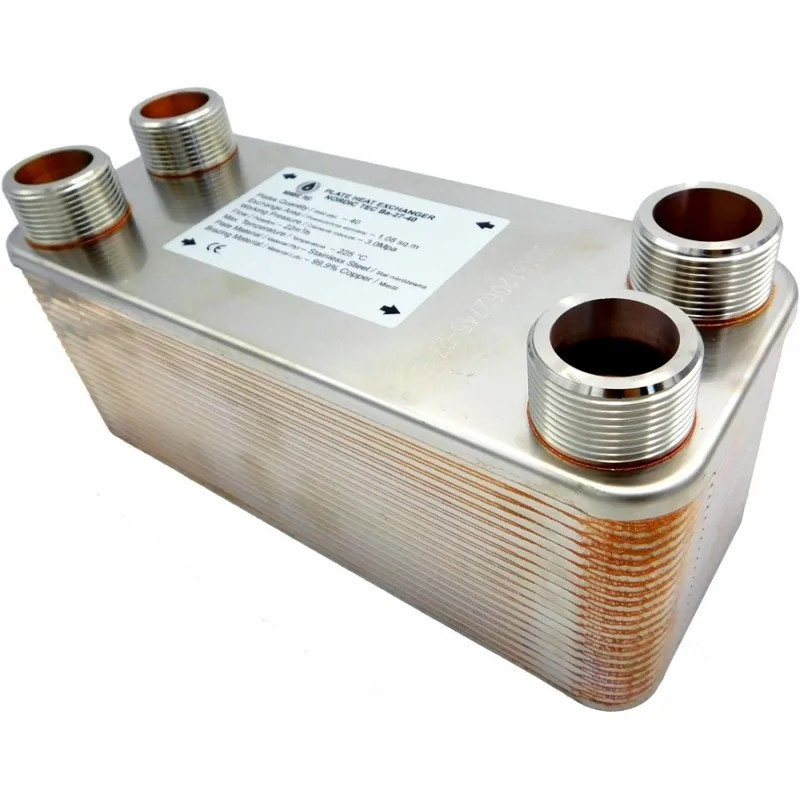

Plate heat exchanger 30 plates 700kW with 2" external connection Ba-95-30
