Smart access control system Bluetooth RFID card access control

• Details
• Info

Details

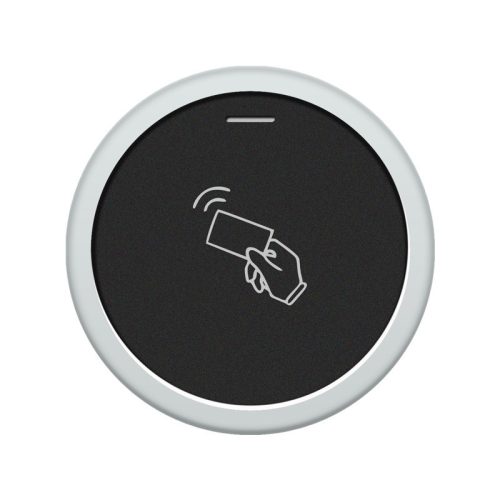

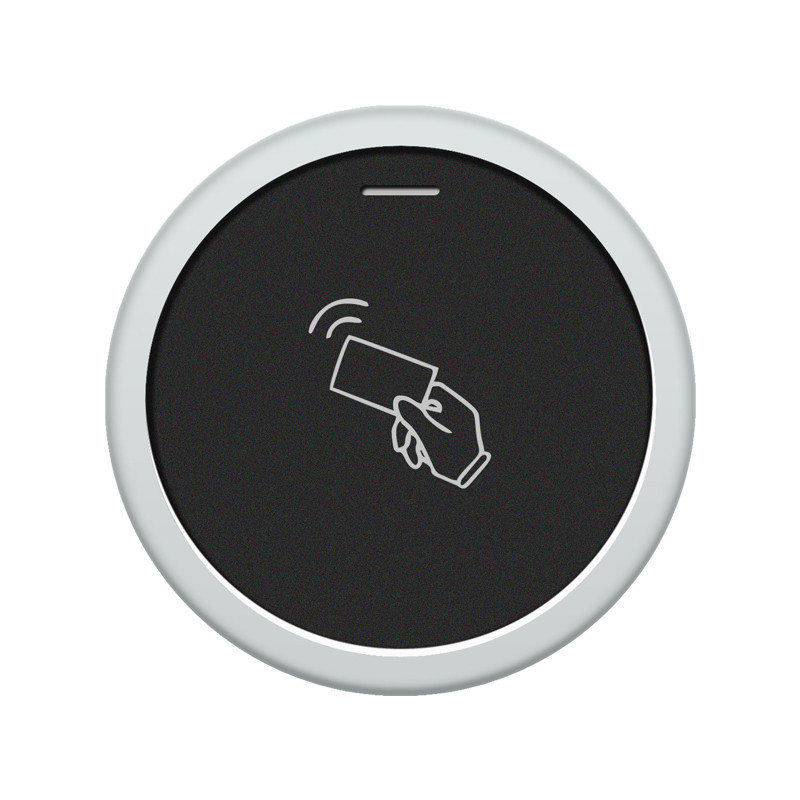

RFID access control system

Operating humidity: 0%-98%RH

Material: zinc alloy housing

Color: gray-black

Operating voltage: 12-24V DC

Data capacity: 1000 users

Weight: 180 g

Standby current: <150mA

Operating temperature: -40°C-60°C

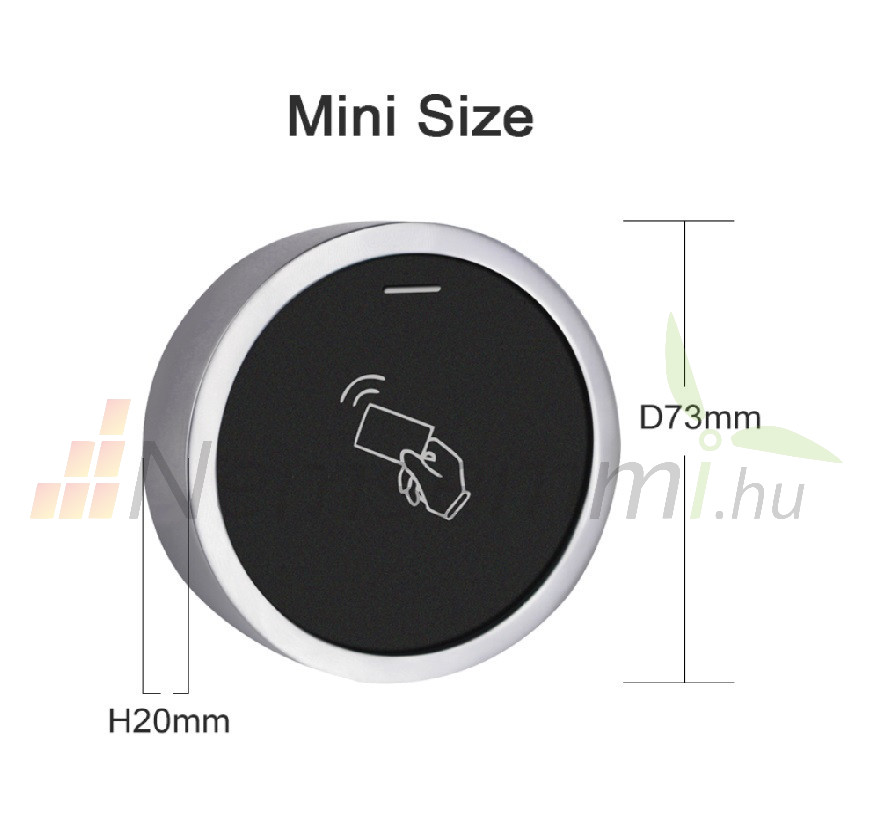

Size: 73x73x20 mm

Card reader: EM 125KHz

More information:

Smart access control system

Make your magnetic lock smarter with an RFID card access control, which you can even control remotely! The device is a single-door, independent access control system with Wiegand input and output. It uses an Atmel MCU, which ensures stable performance. The operation is very user-friendly and the power consumption is low.

Properties:

• IP66 waterproof

• Damage proof metal housing

• One ​​relay 1000 users

• PIN code length 4-6 digits

• Card type: 125KHz EM card

• Wiegand 26-bit output, Wiegand 26/34-bit inputautomatic identification

• Impulse and switching mode

• Low temperature resistance (-40°C)

Info

Vonalkód:

3202312211604

EAN kód:

5999571611423

MPN:

NS611423

Weight:

180 g/pcs
