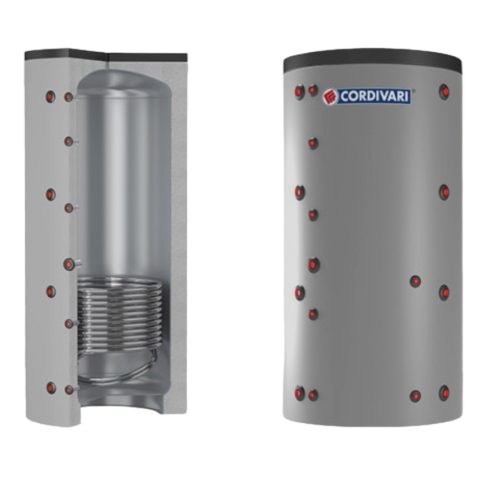

Buffer tank - Cordivari 1VC 1500 - 1 heat exchanger 1500 liters - corner buffer tank

1 buffer tank with heat exchanger

Storage volume: 1454 liters
Diameter with insulation: 121 cm
Height with insulation: 225 cm
Tilt height (R2): 251 cm
Storage operating pressure: 3 bar/99°C
Heat exchanger operating pressure: 12 bar/110°C
Heat exchanger surface: 3.8 m2
Weight: 135 kg
Insulation: 10 cm polyester (material similar to wool), removable!
Energy efficiency class: C< /span>

DOWNLOAD DATA SHEET

See the drawing for connectors.

A: hot water delivery boiler/heating backup 1"1/2
B: connection for measuring instruments 1/2"
C: boiler/heating return 1"1/2
I: electric heating insert connector (6/4")
G: heat exchanger inlet 1"
H: heat exchanger outlet 1"

Find the corresponding heating pad and sensors in our online store.

Warranty: 5 years

Buffer tank with 1 heat exchanger

Production time: 2-3 months from the order.

Hot water storage buffer tank is suitable for storing hot water produced by a boiler, heat pump, solar collector or pellet boiler.
In this buffer tank, you store the water that is also circulated in your heating system.
The water in the closed circuit is heated directly by the boiler, open fireplace or heat pump.
It can also be heated with an electric heating pad.
Design that can be placed in a corner 100 with connectors placed within °.
The steel container is not treated on the inside (it doesn't need to be!), painted with a single layer of primer on the outside there is.

The internal heat exchanger can also be connected to a stove, fireplace, solar collector or heat pump.
If in use if you also want to make hot water (bath water), look for buffer tanks with heat exchangers.
If the tank contains would like to store hot water (bath water), choose an indirect hot water storage tank, boiler!
