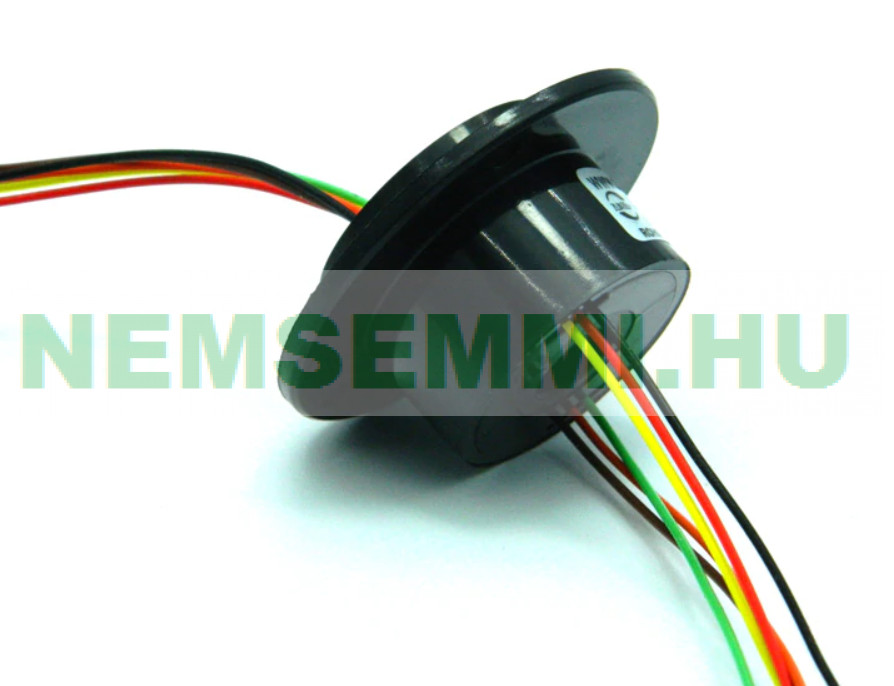

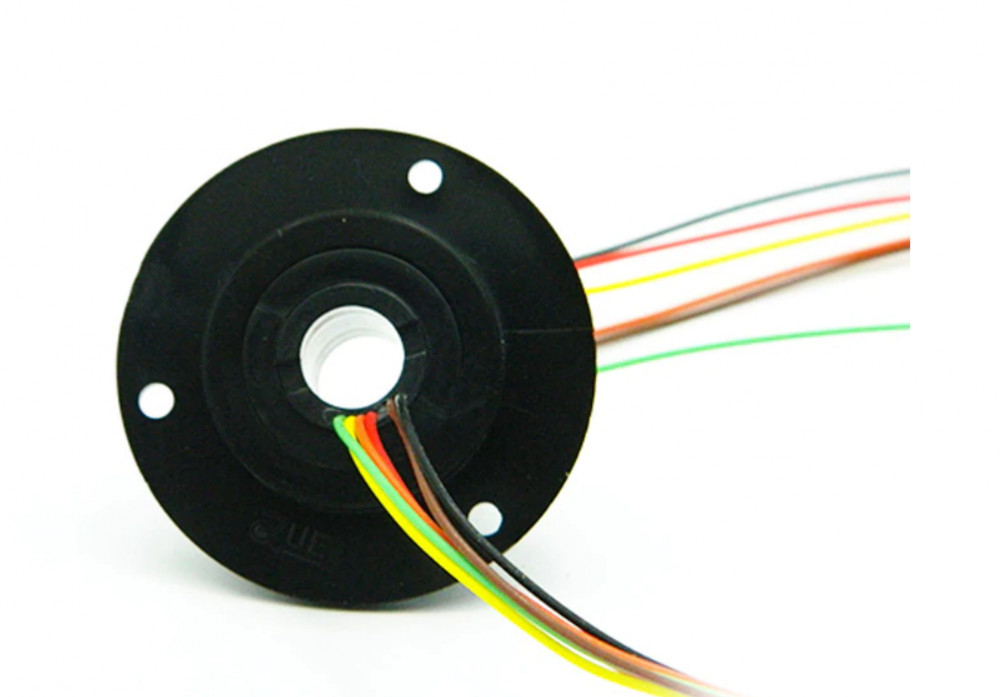

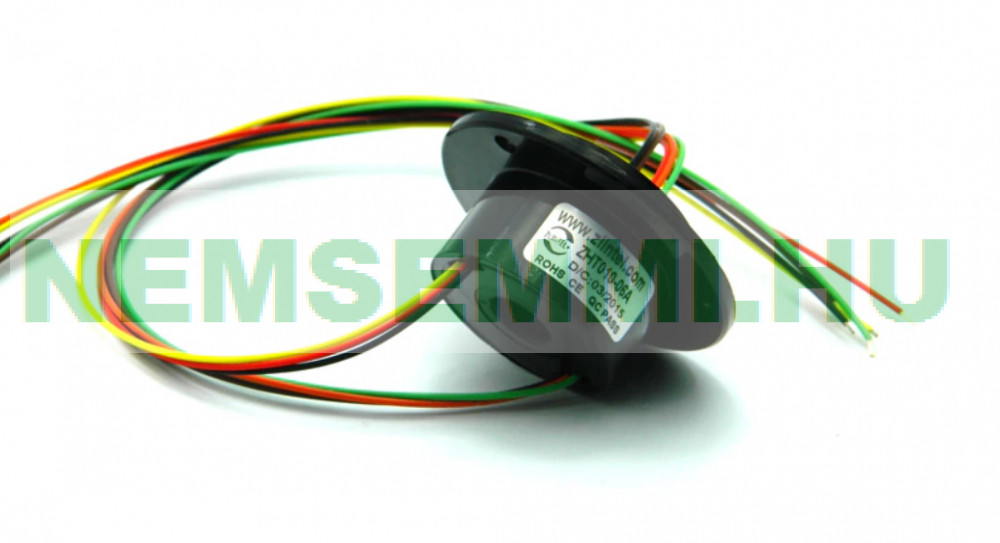

Slip ring

Dust and moisture resistant design
Suitable for direct current or alternating current structures
Diameter: 30 mm
Length: 22.7 mm

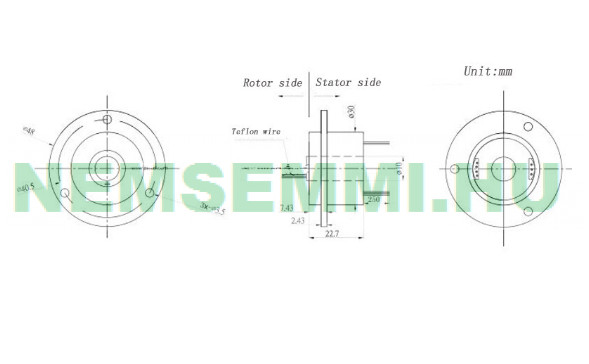

More dimensions on the drawing
Maximum current: 2A< br />Maximum voltage: 240V
Operating temperature: -40℃ - +80℃
Cable length: 200 mm
Model number: ZHT010-06A
Number of wires: 6
Speed: 0-200 rpm
Hole diameter: 10 mm
Housing material: plastic
Dynamic resistance: at least 1 m Ohm
Electric noise: <10 m ohm, 50 mA, 5 rpm
Wire length: standard 250mm
Protection: IP54
Operating temperature: -20 Celsius ~ + 60 Celsius
Workplace humidity: 10%-85% relative humidity
Impact level: MIL-STD -810E

More information:

Rotary contact

Possibility of use:

robot
camera
medical device
wind wheel
against cable twisting

A slip ring is a device that allows current to be transferred between the generator and the rotor without physically connecting the two parts together. Thanks to the slip ring, current can flow continuously between the rotating rotor and the fixed generator, so that the electrical energy can be transmitted without interruption.

The use of slip rings in wind turbines is important because the movement of the rotor changes continuously with the change of wind direction, but the current transmission must remain stable so that the generator continuously produces energy. Therefore, slip rings are crucial for efficient and reliable wind energy conversion.

Hollow sliding ring rotary contact 2A 6-wire, against cable twisting, e.g. camera, robot, wind wheel, wind turbine, with gold-plated contacts.
