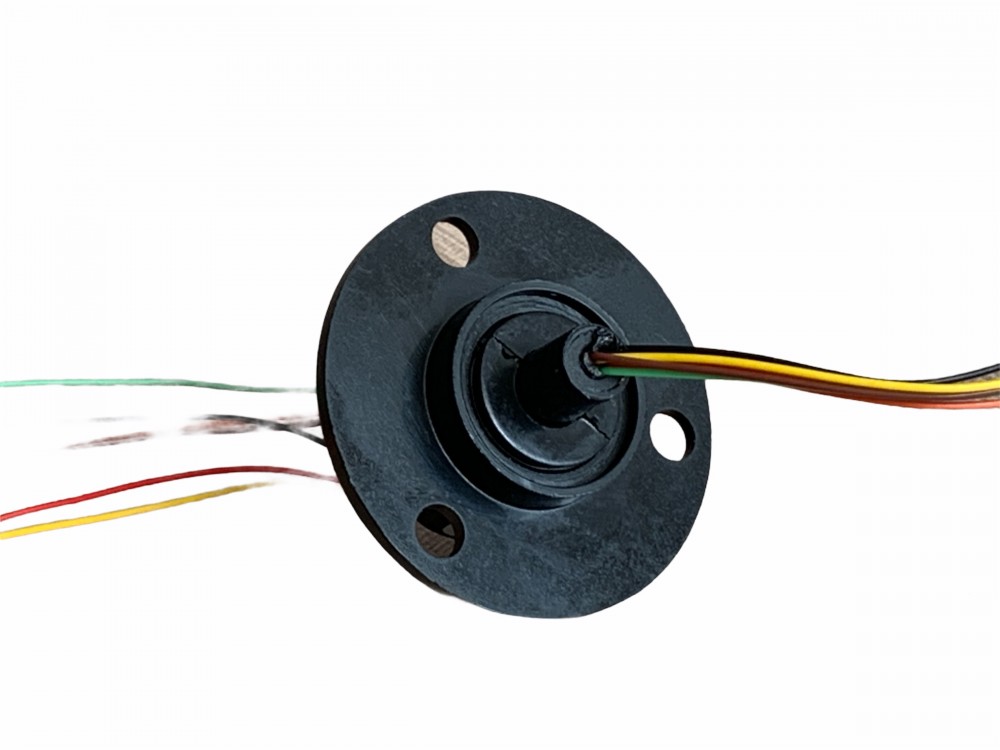

Slip ring rotary contact 2A 6-wire, large flange against cable twisting, e.g. camera, robot, wind wheel, wind turbine, with gold-plated contacts.

• Details
• Info
• Opinions

Details

Slip ring

Anti-twist
Dust and moisture resistant design
< span style="color: #000000;">Suitable for direct current or alternating current structures
Diameter: 44.5 mm
Length: 28 mm
Shoulder height: 5 mm
Centre cylinder diameter: 22 mm
Hole dividing circle: 35 mm
Maximum current: 2A
Maximum voltage: 240V< /span>
Operating speed: 0-250 rpm
Operating temperature: -40℃ - +80℃
Cable length: 200 mm
Protection: IP51

More information:

Sliding contact, rotary contact

Possibility of use:

• robot


• camera


• medical device


• wind generator

Info

Vonalkód:

00048118

MPN:

NS000426

Weight:

13 g/pcs
