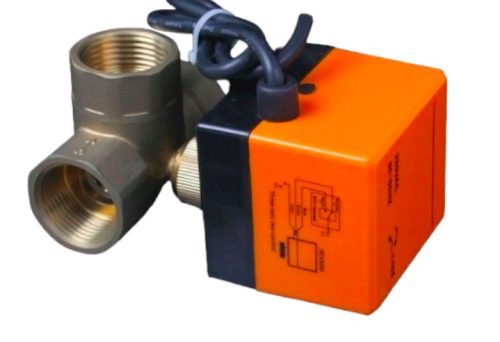

Zone valve, motorized ball valve 3-way

Motor 12 V
½" internal threaded connectors

Connection help
Green-yellow cable: N i.e. zero point connection
Blue: L i.e. connection of positive point
Black: L i.e. positive point connection
Depending on the positive connection, it turns in one or the other direction. The equipment does not consume in end position.

Further information:

Three-way motorized ball valve

The motor moves a ball valve, which lets thewater in one or the other direction depending on which of the 2 cables receives the voltage.
In the event of a power failure, it can also be adjusted with a key.
Consumes electricity only when moving, no consumption when closed or open.

Info

Vonalkód:

00132763

Weight:

1 kg/pcs
