Motorized reciprocating valve 3-way zone valve changeover valve mixing valve DN20 ¾" BB internal thread connectors 230V Motorized reciprocating switching

• Details
• Info
• Opinions

Details

Motorized zone valve

Three-way motorized ball valve
Motor 230 V 50 Hz
¾" internal threaded connectors
Maximum flow: 20 m3/h
Switching speed: 15 s
Consumption switching below: 6W
The equipment does not consume when it is at rest.

Connection help:

Green-yellow / Yellow cable: N, i.e. zero point connection
Blue: L i.e. point connection of one phase.
Black / Brown: L i.e. connection of another phase. These receive the positive voltage alternately and thus operate alternately.

More information:

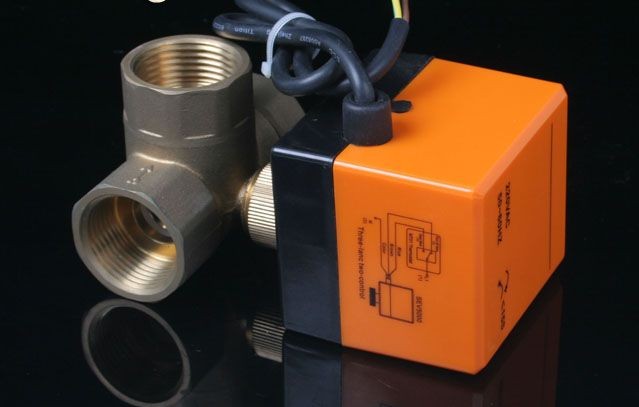

Three-way motorized ball valve

It switches back and forth with a motor.
The motor moves a ball valve, which it lets thewater in one or the other direction depending on which of the 2 cables receives the voltage.
It stops by itself in the end position and does not consume any more.
It can also be adjusted with a key in the event of a power failure.
Consumes electricity only when moving, no consumption when closed or open!

Info

Vonalkód:

00077644

EAN kód:

6445563434002

MPN:

NS000434

Weight:

1 kg/pcs
