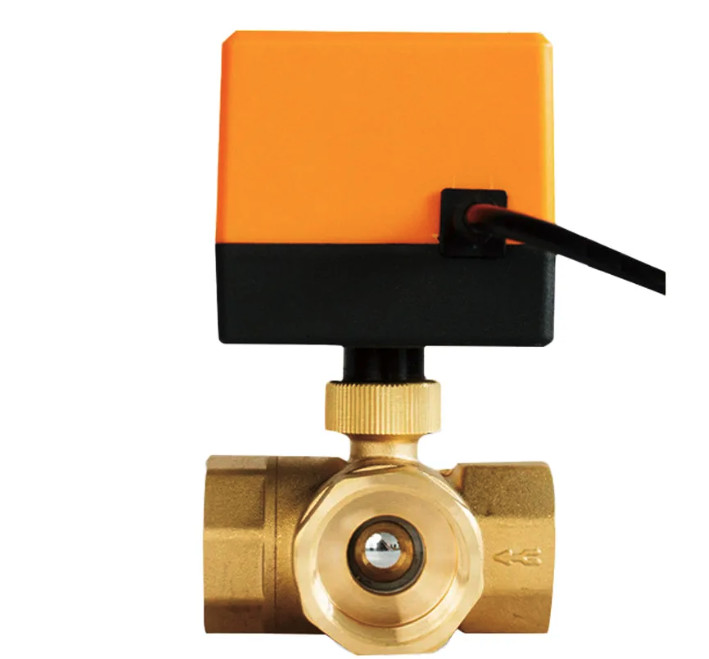

24V Motorized valve 3-way zone valve mixing valve changeover valve DN25

Nettó ára: 43.19 €
Bruttó ára: 54.86 €

Máshol olcsóbban látta?

Details

Zone valve, motorized ball valve

Motor 24 VAC
Medium: cold/warm water, 60% ethylene glycol
Material: brass
Power: 6W (only when opening and closing valves)
Duration: 5-15 seconds
Rated pressure: 1.6 MPa
Medium temperature: 2°C ~ 95°C
Maximum pressure difference: 1.0 MPa
Connection method: G Internal thread

More information:< /p>

Three-way motorized ball valve

The motor moves a ball valve, which lets thewater in one or the other direction depending on which of the 2 cables receives the voltage.
In the event of a power failure, it can also be adjusted with a key.
Consumes electricity only when moving, no consumption when closed or open.

Info

Vonalkód:

2121697725783

EAN kód:

5202309111117

MPN:

NS111117

Weight:

1 kg/pcs
