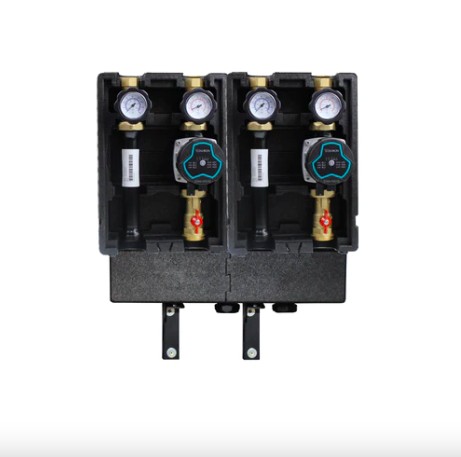

Pump station 2-circuit ECOMIX EN003 pump station with Environ EcoStar 25/6 high efficiency pump

Double-circuit pump station

Flow rate: 2260 l/h
Max. temperature: 110 °C
Max. pressure: 6 bar
Minimum temperature: 10 °C
Ball valve material: brass CW617N
Material insulation: EPP 38 g/l
Thermal conductivity: 0.038 W/mK
Fire protection class: ISO 3795
System connections: 1"½ ET

Technical data Environ EcoStar 25/6 high efficiency pump:
Lifting height: max . 6 m
Flow speed: max. 3.6 m³/h
Temperature range: between -20°C and +110°C
Energy consumption: 3W-43W
Operating pressure: max. 10 bar
Electrical connection: 230V/50HZ
Power voltage: 220~240V, 50/60Hz
Protection level: IP44
Insulation class: H
EMC standard: EN61000-6-1 and EN61000-6-3

Environ distributor DN25 for two pump stations for 125 mm pump groups, with bracket.

• Management of several heating zones is possible
• Made of square profile
• Heat insulation made of black EPP

Flow chamber diameter: up to Ø38 (DN40)
Return chamber: Ø38 (DN40 )
Material of the collector pipe: steel ST37.1
Insulation: EPP 40 g/l
Maximum power: 83 kW
Maximum pressure: 6 bar
Maximum temperature: 120 °C

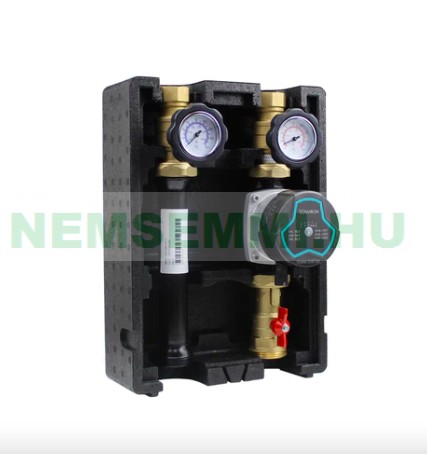

Pump station

Two-circuit ECOMIX EN003 pumping station, equipped with an Environ EcoStar 25/6 high efficiency pump.

The direction of flow and return can be easily reversed. In the upper part of the pump station, there are shut-off valves (1" IT) with built-in thermometers (0-160°C) and built-in gravity brake. If the pump group is installed separately, a wall bracket can be screwed to the shut-off valves (not included).

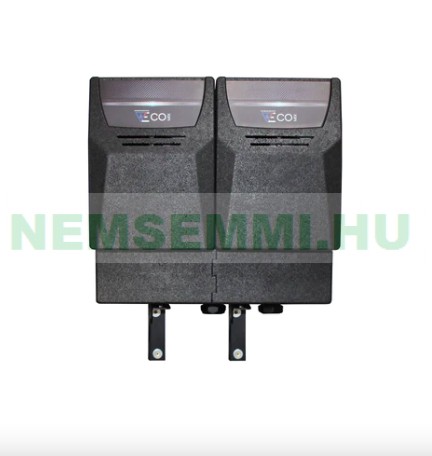

The thermal insulation made of EPP provides an optimal climate inside the insulation, so heat does not accumulate.
