Solar collector pump station 2-12 l/p 2-sided ENVIRON circulation pump group insulated + bubble separator + pressure gauge

Solar pump station

Pump: ENVIRON ECOstar15/6-130
Flow volume: 2-12 liters /min
Connections: 22 mm copper pipe with cutting ring
Maximum pressure: 10 bar
Maximum temperature: 160°C
< span style="color: #000000;">EPDM seals,
EPP external insulation box
Eco solar pump with PWM control
flow meter and controller
expansion tank connection point,
6 bar safety valve
2 thermometers
1 pressure gauge
air separator

Dimensions: 200 x 360 x 210 mm

More information:

Solar pump station

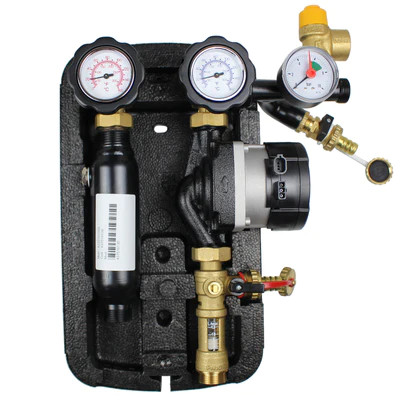

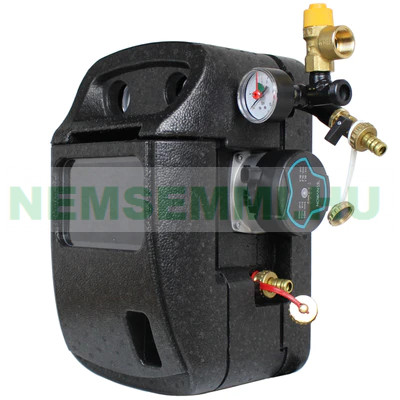

Two-sided pump station that includes the solar circle forward fittings of the outgoing and return lines.

Mass flow: 2.0-12.0 l/min
Max. pressure: 10 bar
Connections: 22 mm copper pipe with cutting ring

The solar station is a prefabricated compact unit that contains most of the equipment and fittings necessary for the operation of solar collector systems. By using it, the installation of the solar circuit becomes significantly simpler and professional operation is ensured. A lot of work and space can be saved by eliminating the need to connect system devices to each other.

The PWM signal cable is not included with the pump, it must be ordered separately!

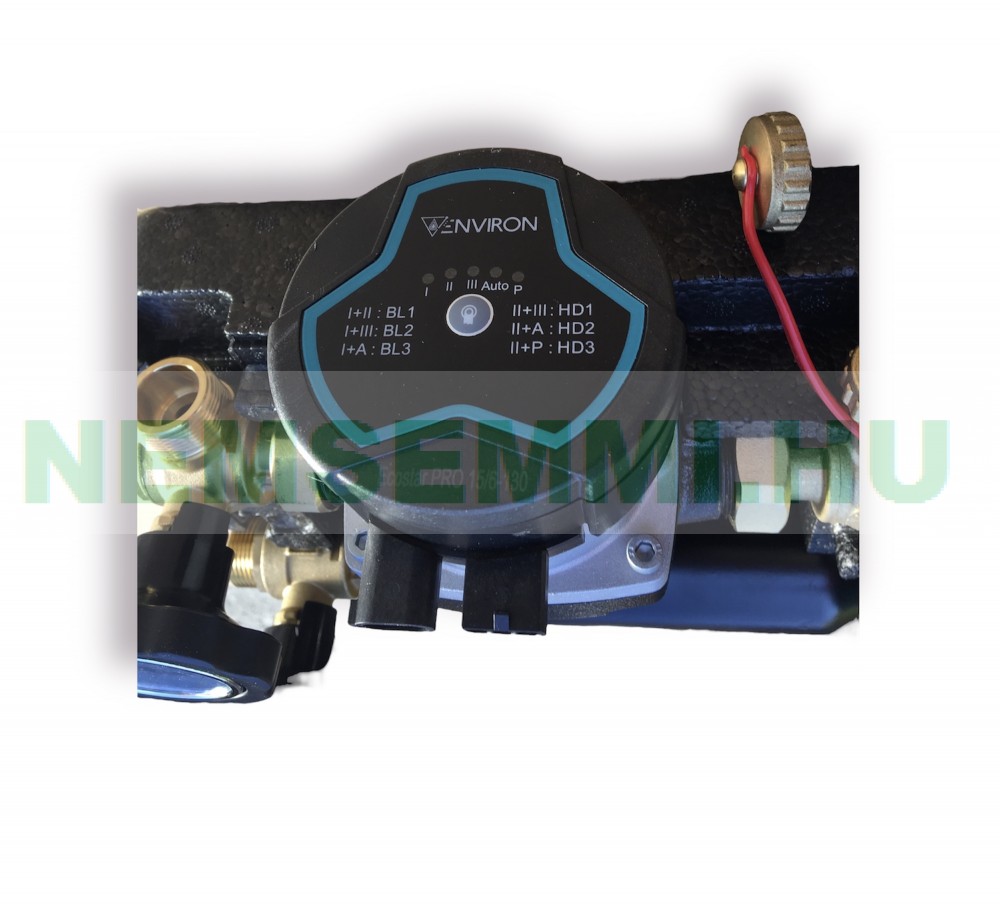

When using PWM control, the pump's own program must be set to the "P" position with the push button on the pump.

https://www.nemsemmi.hu/-ENVIRON-ECOSTAR-25-6-PWM_jelkabel

Attention! The 2-core cable of the pump goes to low-voltage electronics! Under no circumstances should it be connected to 230V voltage, because it can lead to the burning of the electronics and also voids the warranty!

Correct connection: black cable to PWM, red cable to GND
