Heating pad 230V 4500W heating cartridge, with external thermostat, 1½" i.e. 6/4" socket 4.5 kW

• Details
• Info

Details

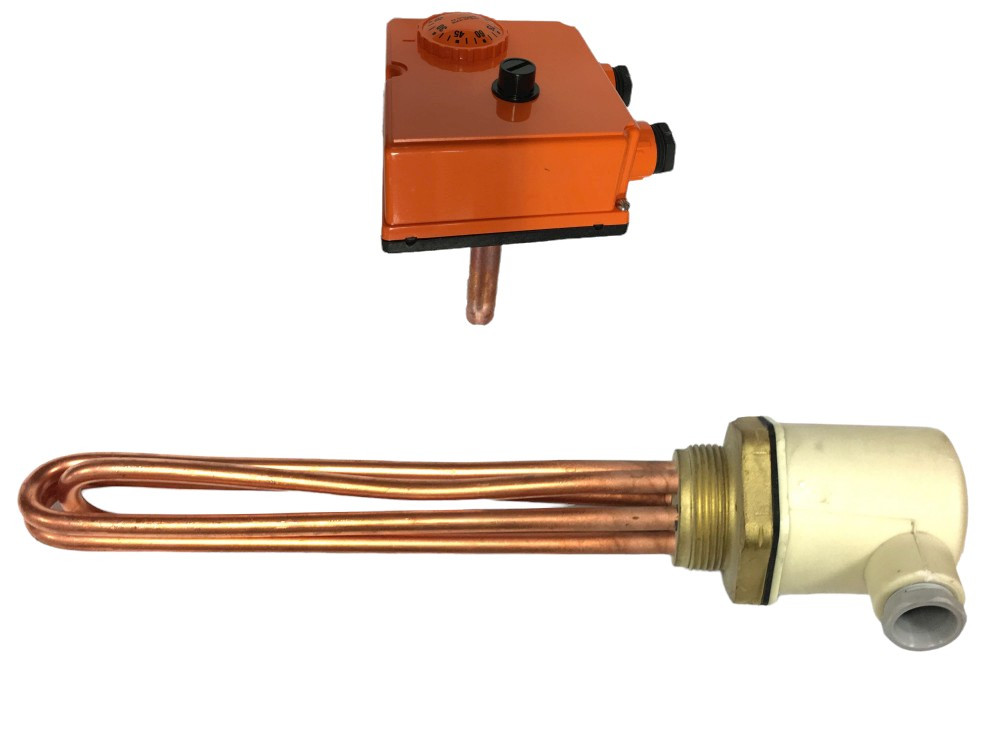

Thermostatic heating pad

Material: copper
Voltage: 230
< span style="color: #000000;">Power: 4500 W
There is no thermostat in the product, it can be purchased as a separate supplement, you will find it among our products.
Thread: 1½" i.e. 6/4"
Heater insert length: 340 mm

Among others, SunSystem SEL; SN; SON; HSEL; HSN; For HSON 150-2000 containers

Thermostat parameters:
Type: IMIT 542714
Technical data of the thermostat and temperature limiter:
Temperature range: 0-90°C
Switching sensitivity: ±6°C
Electrical voltage: 230V 10A
Electrical protection: IP 40

Supplied with 1/2" sleeve

INFO FOR HELP:

Thread
outer diameter zoll (")

13.157 mm = 1/4"
20.955 mm = 1/2"< /span>
26.441 mm = 3/4"
33.249 mm = 1"
41.910 mm = 1 1/4" = 5/4"
47.803 mm = 1 1/2" = 6/4"
53.746 mm = 1 3/4"
59.614 mm = 2"

More information:

Heating pad with thermostat

4.5 kW heating element with external thermostat, can also be retrofitted with a heater
Thread : 1½" i.e. 6/4"

Info

Vonalkód:

00002325

EAN kód:

750000006445SET

MPN:

NS000539

Weight:

3 kg/pcs
