Smart lock

Application: for doors with a thickness of 70-125 mm
More than 100,000 closing operations< /span>
Operating temperature: between -30 and +60 °C
Material: stainless steel and plastic (electronic unit)
Energy supply: 3 AAA / Micro batteries, with a maximum operating time of 12 months< /span>
Cylinder dimensions:
inside 30-64 mm
outside 40-60 mm
Size: 18, 5x5x4 cm
Fully extended: 24x5x4 cm
Weight: 385 g

More information:

Intelligent cylinder lock
Door lock with control unit for ZigBee and Smart Home application
Convenient opening without a key: simply hold the transponder to the lock and the door opens! Or enter your personal PIN code. So you can never lock yourself out of the apartment without a key!

Perfect choice for vacation homes, Airbnbs, offices, medical offices.

Control via app: With the ZigBee gateway, you can manage access from anywhere in the world and directly open the door simply via a smartphone or tablet. Create and share access codes and record openings.

Create a custom numeric code for each guest. That way you don't have to give a key and you don't have to be there in person when they arrive.

Automate your smart home: connect other compatible devices with the app and control everything centrally directly from your smartphone!

with electronic lock cylinder application
12-key keyboard for PIN code entry and programming
with LED display
1 master PIN: to open and program or delete user PINs
up to 9 user PIN codes: can be set individually at any time
secure PIN code length : 6-12 digits
up to 20 transponder keys can be trained
ZigBee compatible: supports IEEE 802.15.4 WPAN standard
access control via ZigBee gateway and free app "Elesion" for iOS and Android systems: opening, creating and sharing access keys, recording openings
gateway function: the door is always open in both directions on request
for doors with a thickness of 70 - 125 mm
extremely durable over 100,000 closing operations

Control unit
Wirelessly controls up to 100 compatible smart home devices, e.g. thermostats, locks and sensors
ZigBee compatible: supports the IEEE 802.15.4 WPAN standard (2.4-2.485 GHz)
Simply connect it to your router via a network cable.
Free "Elesion" app for iOS and Android
Low power consumption
Connections: RJ-45, Micro USB
Power supply: via USB
Size: 90x90x23 mm
Weight: 75 g

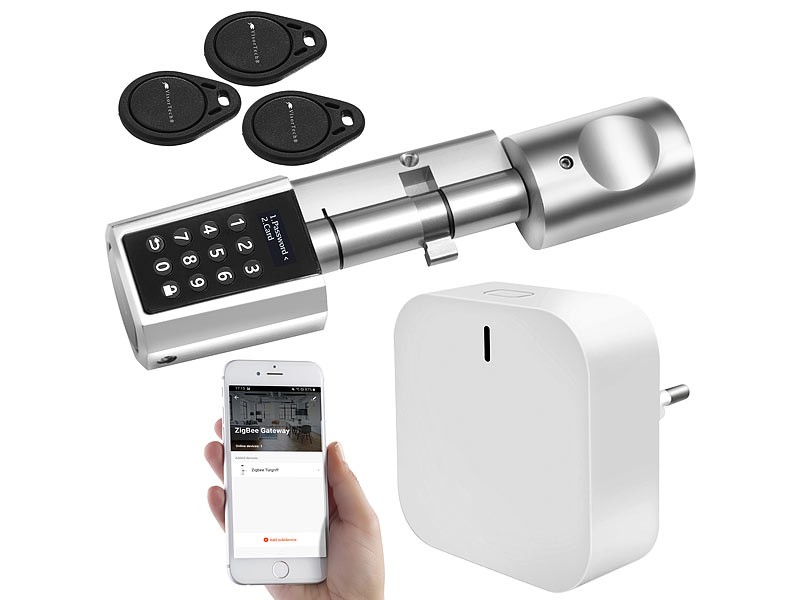

Smart cylinder lock with Zigbee control unit, application and numerical code for doors with a thickness of 70-125 mm

Smart lock
