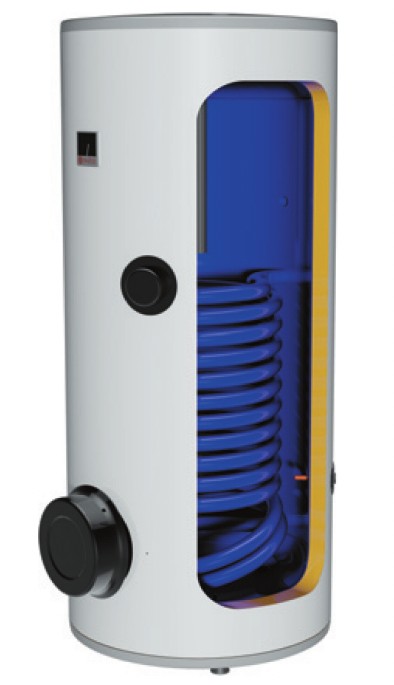

Name: Drazice 200 liter standing 1 heat exchanger, with 2.2 kW electric heating insert, domestic hot water indirect storage, 5 year warranty. Also for solar collector system, with side cleaning opening
Brand: Drazice
SKU: HMV-OKCE_NTR_200_DRAZICE_BOJLER
Price: 977.02 EUR

Standing indirect container

Volume: 195 l
Maximum weight of the water heater without water: 97 kg
Nominal pressure: 6 bar
Maximum operating overpressure: 10 bar
Maximum heating water temperature: 110 °C
HMV maximum temperature: 80 °C
Heat exchanger heating surface: 1.45 m2
Heat exchanger power: 32 kW
Heating pad power: 2.2 kW
More details in the pictures.

ATTENTION! A safety valve at each inlet connection of the storage
( blow-off pressure: 6 bar ) must be installed (cold water inlet, heat exchanger inlet),
as well as the installation of a safety fitting group recommended.

More information:

Drazice hot water storage

1 hot water storage tank with heat exchanger.
With side cleaning opening.
5 year warranty.

OKCE tanks can primarily be used as tanks for hot water heating or solar collector systems.

The containers are welded, made of sheet steel, their internal surface protection is fire enamel coating.
Their thermal insulation is directly the hard polyurethane insulating foam foamed on the tank body.
The additional surface protection magnesium anode provides.
