Name: Horizontal 125-liter hot water tank for 1 solar collector with heat exchanger, right-side connection of mantle heat exchanger. 5 year warranty. Horizontal wall boiler for domestic hot water
Brand: Drazice
SKU: HMV_OKCV_125_075m2_J_DRAZICE_BOJLER
Price: 563.8 EUR

Indirect container

Volume: 125 l
Maximum weight of the water heater without water: 58 kg
Nominal pressure: 4 bar
Maximum operating overpressure: 6 bar
Maximum heating water temperature: 80 °C
HMV maximum temperature: 60 °C
Heat exchanger heating surface: 0.75 m2
Heat exchanger power: 17 KW
Heating pad power: 2.2 KW
Connection: right hand

DATA TABLE:

ATTENTION! There is a safety valve at each inlet connection of the storage
(blow-off pressure: 6bar) installation is mandatory (cold water inlet, heat exchanger inlet),
as well as installation of a safety fitting group recommended.

More information:

HMV container

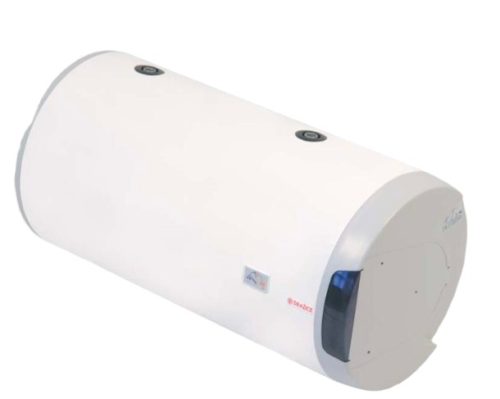

Drazice horizontal wall-mounted domestic hot water storage tank with 1 heat exchanger with electric heating insert, mantle-shaped heat exchanger with right-hand connection.
Horizontal installation, max. operating pressure 6 bar, recommended operating pressure 4 bar
5-year warranty.
OKCV storage tanks can primarily be used as storage tanks for domestic hot water heating or solar collector systems. The containers are welded, made of sheet steel, their internal surface protection is fire enamel coating. Their thermal insulation is hard polyurethane insulating foam foamed directly on the tank body.
The additional surface protection is magnesium anode provides.
