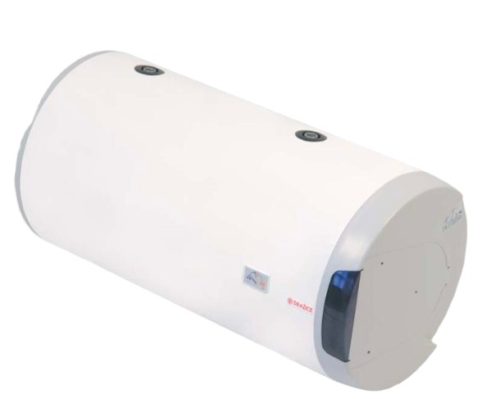

Name: Horizontal 160 l horizontal wall-mounted storage boiler jacket with heat exchanger, right-hand connection, domestic hot water indirect storage, 5-year warranty. Water heater with electric heating pad
Brand: Drazice
SKU: HMV_OKCV_160_075m2_J_DRAZICE_BOJLER
Price: 639.13 EUR

Indirect container

Volume: 152 l
Maximum weight of the water heater without water: 68 kg
Nominal pressure: 4 bar
Maximum operating overpressure: 6 bar
Maximum heating water temperature: 80 °C
HMV maximum temperature: 60 °C
Heat exchanger heating surface: 0.7 m2
Heat exchanger output: 17 kw (at 80 °C heating water and 720 l/h volume flow)
Heating insert output: 2.2 Kw
Connection: right-handed

Can be regulated with a thermostat

DATA TABLE:

ATTENTION! There is a safety valve at each inlet connection of the storage
(blow-off pressure: 6bar) installation is mandatory (cold water inlet, heat exchanger inlet),
as well as installation of a safety fitting group recommended.

More information:

HMV container

Drazice horizontal, wall-mounted, domestic hot water storage with 1 heat exchanger with an electric heating insert, with a mantle-shaped heat exchanger.
Horizontal installation, max. operating pressure 6 bar, recommended operating pressure 4 bar
5-year warranty.
OKCV tanks can primarily be used as tanks for domestic hot water heating or solar collector systems. The containers are welded, made of sheet steel, their internal surface protection is fire enamel coating. Their thermal insulation is hard polyurethane insulating foam foamed directly on the tank body.
The additional surface protection is magnesium anode provides.
