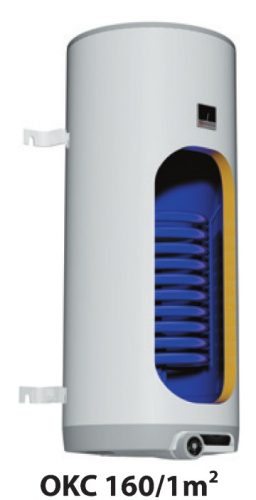

Name: 160 liter wall storage 1 m² heat exchanger + 2.2 kW heating pad Drazice 5 year warranty. Domestic hot water indirect storage, boiler also for solar collectors
Brand: Drazice
SKU: HMV_OKC_160_1m2_DRAZICE_BOJLER
Price: 824.37 EUR

HMV storage with heat exchanger

Volume: 160 l
Actual volume: 147 l
Size: 1255 x 524 mm
Maximum weight of the water heater without water: 71 kg
Nominal lpressure: 6 bar
Maximum operating pressure: 10 bar
Maximum temperature of heating water: 80 °C
Maximum temperature of DHW: 60 °C
Heat exchanger heating surface: 1.08 m2
Heat exchanger power: 24 kw
Heating insert power: 2.2 Kw
Heat exchanger volume: 7.1 liters
Insulation thickness: 42 mm

ATTENTION! It is mandatory to install a safety valve
(exhaust pressure: 6 bar) at each supply connection of the storage (cold water inlet, heat exchanger inlet), and installation of a safety fitting group is recommended.

More information:

Indirect storage

Drazice wall-mounted, 1-heat-exchange domestic hot water storage with electric heating insert, high-capacity heat exchanger. Vertically installed, max. operating pressure 10 bar, recommended operating pressure 6 bar, with circulation connection.
5 year warranty. OKC tanks can primarily be used as tanks for hot water heating or solar collector systems.
The containers are welded, made of sheet steel, their internal surface protection is coated with fire enamel.
Their thermal insulation is hard polyurethane insulating foam foamed directly on the tank body.
Additional surface protection is provided by a magnesium anode.
