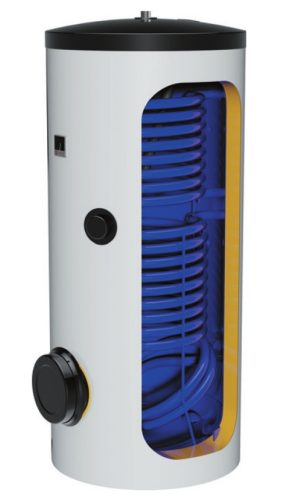

200-liter Drazice OKCE NTRR BP tank with two heat exchangers domestic hot water indirect boiler also for solar collector system design without sensor sleeve

HMV container

Volume: 195 l
Maximum weight of the water heater without water: 114 kg
Nominal overpressure: 0.6 Mpa
Maximum operating overpressure: 1 Mpa
Maximum temperature of heating water: 110 °C
HMV maximum temperature: 80 °C
Lower heat exchanger heating surface: 1.45 m2
Heating surface of upper heat exchanger: 1.1 m2
Power of lower/upper heat exchanger: 2x24 kw
HMV/AH/FH lasting performance: 670/650 **1080
Heating time from 10 °C to 60 °C with heat exchanger: 14/14 minutes
Heating time From 10 °C to 60 °C with heater: 5.5 hours
Optional installation heating pad power: 2.2 Kw
Electrical connection: 1 PE-N~230/50
Voltage of electrical safety elements: 1 PE-N 230/50 V/Hz
Electrical protection: IP 44
Heat losses/en. efficiency class: 1.4/B kWh/24h
More detailed information in the pictures.

ATTENTION!A safety valve at each feed connection of the storage
(flow pressure: 6bar) must be installed (cold water inlet, heat exchanger
inlet), and installation of a safety fitting recommended.

Drazice boiler

Drazice domestic hot water tank with two heat exchangers, without electric heating insert 200 liters
5 years with a guarantee!
OKC NTRR storage tanks are mainly used as storage systems for domestic hot water solar collector systems can be used.
The solar collectors must be connected to the lower and the boiler to the upper heat exchanger.
The containers are welded, made of sheet steel, their internal surface protection is fire enamel coating.
Their thermal insulation 60 mm thick hard polyurethane insulating foam foamed directly on the tank body.
Additional surface protection is provided by a magnesium anode screwed in from above.
There is also a 6/4" socket at approximately mid-height on the containers, through which an electric heating cartridge can be built on.
