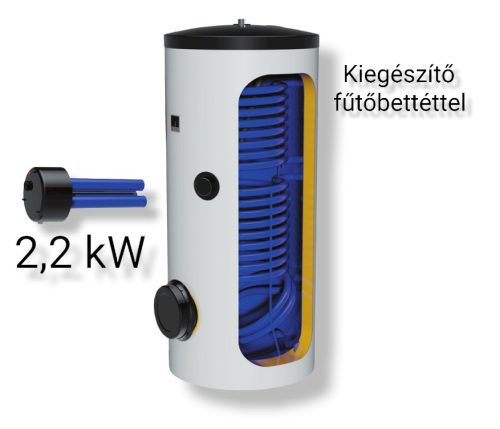

Name: 200-liter storage tank Drazice with two heat exchangers + 2.2 KW heating insert domestic hot water indirect tank for solar collector, heat pump
Brand: Drazice
SKU: HMV_OKC_NTRR_BP_TPK_168_DRAZICE_BOJLER
Price: 1095.58 EUR

Indirect container

Volume: 195 l
Maximum weight of the water heater without water: 114 kg
Nominal overpressure: 0.6 Mpa
Maximum operating overpressure: 1 Mpa
Maximum temperature of heating water: 110 °C
HMV maximum temperature: 80 °C
Heating surface of lower heat exchanger: 1 m2
Heating surface of upper heat exchanger: 1 m2
Power of lower/upper heat exchanger: 2x24 kw
HMV/AH/FH lasting performance: 670/650 **1080
Heating time from 10 °C to 60 °C with heat exchanger: 28/16 min
Heating time from 10 °C to 60 °C with heater: 5.5 hours
Heating insert performance: 2.2 Kw
Electrical connection: 1 PE-N~230/50
Voltage of electrical safety elements: 1 PE-N 230/50 V/Hz
Electrical protection: IP 44
Heat losses/en. efficiency class: 1.4/B kWh/24h

HEATER INSERT DATA SHEET:

TPK 168-8/2.2 heating pad for the device

ATTENTION! A safety valve at each inlet connection of the storage
(blow-off pressure: 6 bar) its installation is mandatory (cold water inlet, heat exchanger inlet), and the installation of a safety fitting group is recommended.

Further information:

Indirect container

Drazice domestic hot water storage tank 200 liters with two heat exchangers, without electric heating insert.
The OKC NTRR tanks can primarily be used as tanks for domestic hot water solar collector systems.
and the boiler must be connected to the upper heat exchanger.
The storage units come with 1 central height unit (to control the heating of the lower heat exchanger)and 1 thermostat placed on top (to control the heating of the upper heat exchanger) and 1 thermometer installed on top.
The tanks are welded, made of sheet steel, their internal surface protection is fire enamel coating.
Their thermal insulation is 60mm thick, directly on the tank body foamed hard polyurethane insulating foam.
Additional surface protection provided by a magnesium anode screwed in from above.
