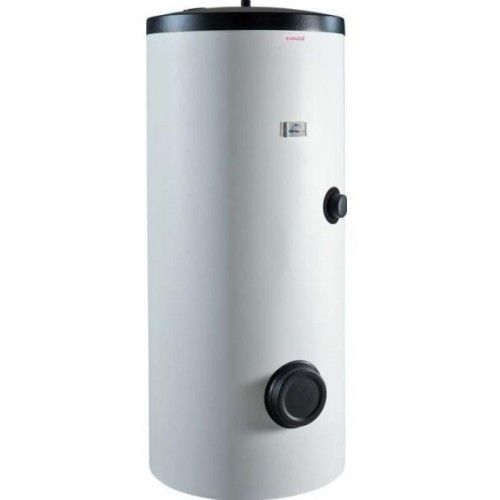

1000 liter standing 1 heat exchanger, without electric heater, domestic hot water indirect storage with 5-year warranty, side cleaning opening

HMV container

Volume: 945 l
Diameter: 1010 mm
Additional dimensions on the drawing.
Maximum weight of the water heater without water: 337 kg
Nominal overpressure: 10 bar
Maximum operating overpressure : 13 bar
Maximum temperature of heating water: 110 °C
HMV maximum temperature: 95 °C
Heat exchanger heating surface: 3.55 m2
The power of the heat exchanger: 91 kW
Retrofitting heating insert performance: 2-6 Kw
Heat losses/en. efficiency class: 3.9 kWh/24h
Voltage of electrical safety elements: 1 PE-N 230/50 V/Hz< /p>

ATTENTION! A safety valve at each inlet connection of the storage
(blow-off pressure: 6 bar) installation is mandatory (cold water inlet, heat exchanger
inlet), and installation of a safety fitting group recommended.

Indirect storage

Drazice is a domestic hot water tank with a heat exchanger, without an electric heating pad, 1000 liters
With side cleaning opening
6 year warranty!

NTR and NTRR series indirect-heated stationary water heaters are used to produce DHW through another heating water source, most often a gas boiler. The NTRR types combine two sources of heating water (gas boiler + solar system, heat pump). With their nominal performance, they provide a sufficient amount of DHW for large residential buildings, plant departments, restaurants and similar facilities. In case of increased consumption of DHW, the water is continuously heated and works similarly to flow-through water heaters.
2. Advantages of using an indirect heating water heater.
- Easy installation and connection to heating water.
- Very fast heating of DHW.
- The enameled steel tank meets the quality of DHW in all hygienic requirements.
- The built-in magnesium anode increases resistance to corrosion.
- High-quality polyurethane insulation ensures minimal heat losses.
- Connection of a large number of reception points.
- In the two heat exchanger types, the surface of the heat exchanger
can be doubled by using two heating water sources or by connecting them.
- Accurate control of the DHW temperature.
- The possibility of connecting the DHW circulation.
