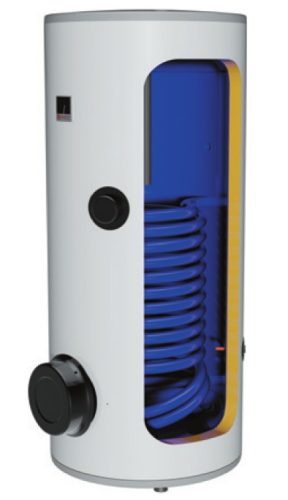

Name: 200 liter standing 1 heat exchanger, without electric heater, domestic hot water indirect storage, 5-year warranty. Also for solar collector system, with side cleaning opening
Brand: Drazice
SKU: HMV_OKC_NTR_BP_200_DRAZICE_BOJLER
Price: 813.53 EUR

Indirect container

Volume: 200 l
Maximum weight of the water heater without water: 92 kg
Nominal pressure: 6 bar
Maximum operating overpressure: 10 bar
Maximum heating water temperature: 110 °C
HMV maximum temperature: 80 °C
Heat exchanger heating surface: 1.45 m2
Heat exchanger power: 32 kw
Heating pad power: none

ATTENTION! A safety valve at each inlet connection of the storage
( blow-off pressure: 6 bar ) must be installed (cold water inlet, heat exchanger inlet),
as well as the installation of a safety fitting group recommended.

More information:

Indirect storage

Drazice wall-mounted, 1 heat exchanger domestic hot water storage tank without electric heating insert, with high capacity heat exchanger. Vertical installation, max. operating pressure 10 bar, recommended operating pressure 6 bar, with circulation connection.
OKC tanks can primarily be used as tanks for domestic hot water heating or solar collector systems.< br />The containers are welded, made of sheet steel, their internal surface protection is fire enamel coating. Their thermal insulation is hard polyurethane insulating foam foamed directly onto the tank body. The additional surface protection is provided by a magnesium anode.
OKC tanks can primarily be used as storage for hot water heating or solar collector systems.
The containers are welded, made of sheet steel, their internal surface protection is fire enamel coating.
Their thermal insulation is hard polyurethane insulating foam foamed directly on the tank body.
Additional surface protection is provided by a magnesium anode.
With side cleaning opening.
5 year warranty.
