HMV container

Volume: 195 l
Maximum weight of the water heater without water: 87 kg
Nominal pressure: 6 bar
Maximum operating overpressure: 10 bar
Maximum heating water temperature: 80 °C
HMV maximum temperature: 60 °C
Heat exchanger heating surface: 1.08 m2
Heat exchanger capacity: 24 kw
Heating pad capacity: none, cannot be retrofitted.

ATTENTION! A safety valve at each inlet connection of the storage
( blow-off pressure: 6 bar ) must be installed (cold water inlet, heat exchanger inlet),
as well as the installation of a safety fitting group recommended.

More information:

Indirek storage

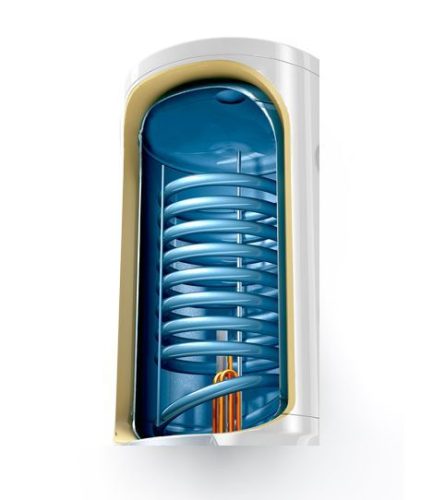

The largest wall-mounted DRAZICE hot water tank.
5-year warranty.
Drazice wall-mounted, 1 heat exchanger domestic hot water storage electric heating insert can be retrofitted, with an increased capacity heat exchangerside pipe snake, lower cold-hot water connection, with circulation connection.
OKC tanks are primarily for use-hot water they can be used as containers for heating or solar collector systems. their surface protection is fire enamel coating.
Their thermal insulation is hard polyurethane insulating foam foamed directly on the tank body.
Additional surface protection is provided by a magnesium anode.

200-liter wall storage 1 hot water boiler with heat exchanger, without electric heating insert. 5-year warranty. The largest wall-mounted design.
