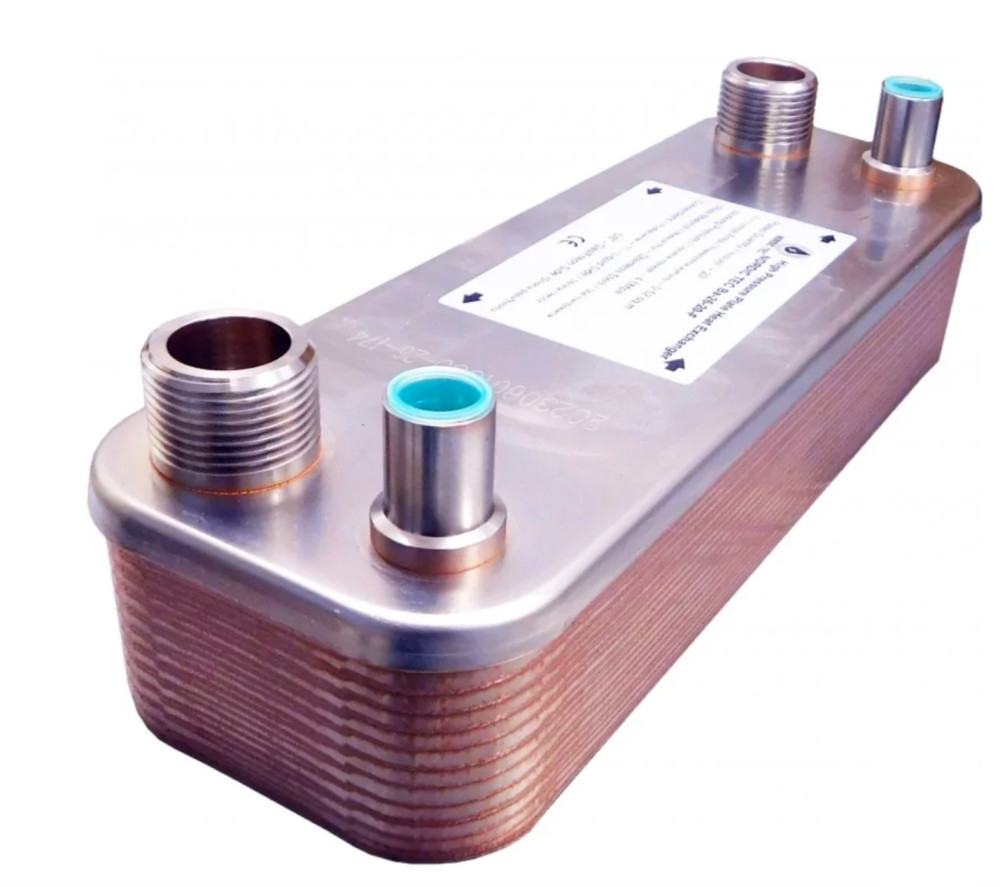

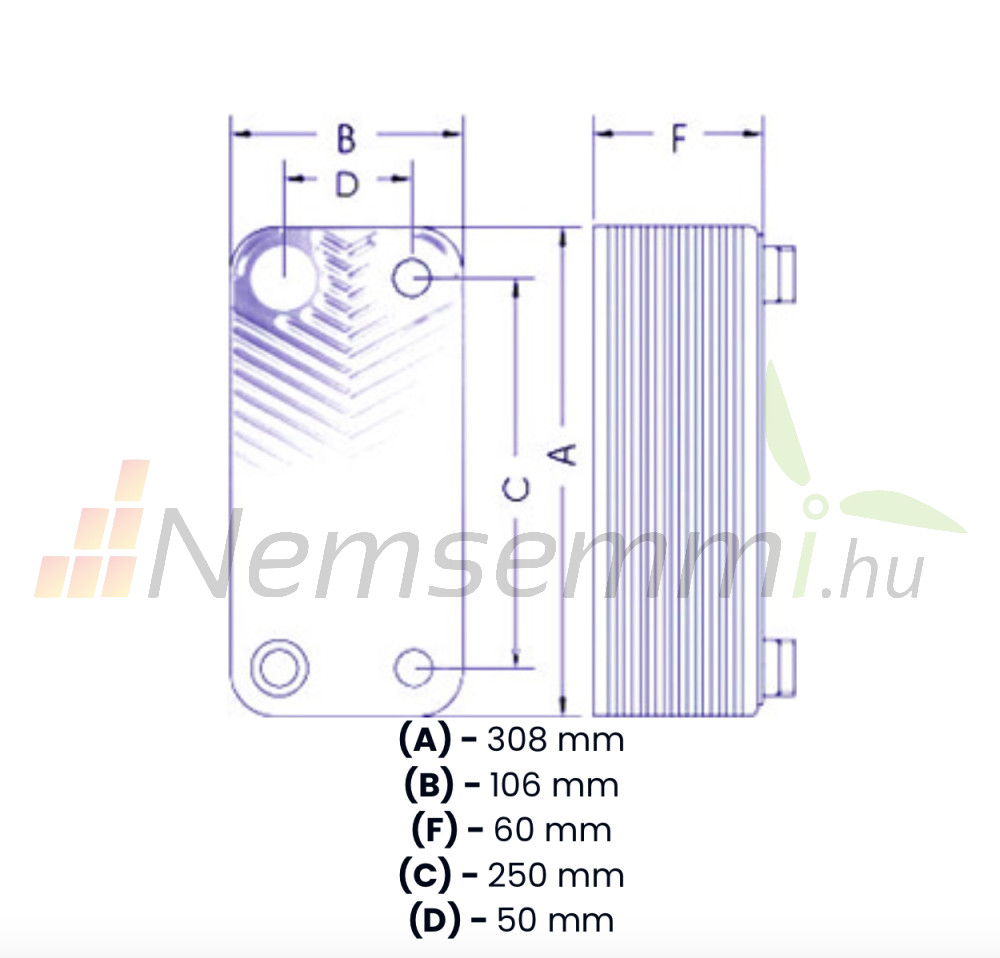

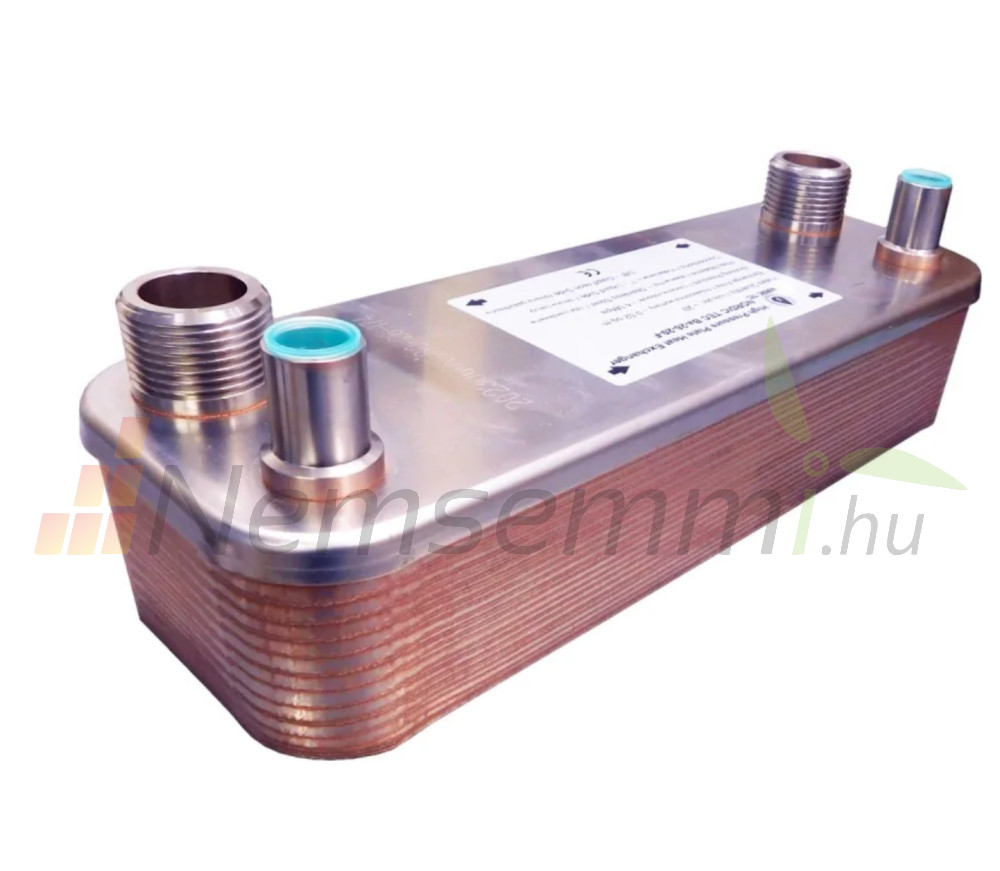

Gas-liquid heat exchanger Freon heat exchanger 20 plates Ba-26-20-F for refrigerants 0.52m²

Gas-liquid heat exchanger

Number of plates: 20 pieces
Heat exchange surface: 0.520 m²
Material : 316L stainless steel with vacuum brazed copper
Heating capacity for heat pump / air conditioner / cooling unit: 3-5 kW
Refrigerant / Gas solid media connection: φ15 - 5/8" for brazing
Traditional liquid media connection: 1" - DN 25
Operating pressure: Up to 45 bar (this is the maximum allowable pressure)
Pressure tests before commissioning : > 60 bar
Flow rate: 12 m³/h
Connection method: counter current

Freon heat exchanger

This heat exchanger is designed for installations where one medium is a gaseous refrigerant (such as Freon or a similar gas), while the other medium is a more traditional liquid medium - water or water- glycol mixture. It is a heat exchanger designed for narrower applications with these specific media. The term "Freon heat exchanger" is used colloquially because of the most common medium, but it can also work with mediums with similar properties.

The 20-plate Ba-26-20-F Freon heat exchanger is the smallest model of the Ba-26 series, designed entirely for gas-liquid heat exchange and high pressure ( 45 bar or 4.5 MPa). This is the smallest gas heat exchanger in our range. Its plate surface is 0.52 m², which can be effectively used with heat pumps whose output is usually 3-5 kW, depending on the input parameters. The expected capacity of refrigeration units or air conditioners that this model can effectively handle is similar.

This device is suitable for use as a condenser in heat pumps, air conditioning units and similar systems. The heat exchanger can work with refrigerants such as R404A, R32 and similar.

Main features:

• Number of discs: 20 pieces
• Connections - gas side: 5/8" tube, liquid side: 1"
• Heat exchange surface: 0.520 m²
• Heat pump unit / air conditioning capacity: 3-5 kW
• Operating pressure on the gas side: up to 45 bar (the key technical parameter that distinguishes it from conventional liquid-liquid heat exchangers is the higher permissible operating pressure - up to 4.5 MPa ).
• The 20-plate Freon heat exchanger is optionally available with thermal insulation, which increases the efficiency of heat transfer by reducing heat loss to the environment.

If the heat exchange surface of approximately 0.52 m² is too small for your application, please see the larger models in the series. Among them are Ba-26-34 Freon heat exchangers with 0.88 m², Ba-26-50 with 1.3 m² and Ba-26-60 with 1.56 m². If these devices are still too small or if you want to explore larger heat exchangers for similar purposes, consider the larger Ba-68-F series Freon heat exchangers.
