Gas-liquid heat exchanger

Number of plates: 60
Heat exchange surface:

1,560 m²
Material: 316L stainless steel, with vacuum brazed copper
Heating capacity for heat pump / air conditioner / cooling unit: 8-13 kW
Refrigerant / Connection of gaseous media: φ15 - 5/8" for brazing
Connection of traditional liquid media: 1" - DN 25
Operating pressure: Up to 45 bar (this is the maximum permissible pressure)
Pressure tests before commissioning: > 60 bar
Flow rate: 12 m³/h
Connection method: countercurrent

More information:

Freon heat exchanger

The 60-plate freon heat exchanger for gas media, designed for high pressure applications (up to 45 bar). Suitable for use with liquids (heat absorbing side) and refrigerant/gas (opposite side). A heat exchanger can act as a condenser/cooler in heat pumps or air conditioning systems, even if an air conditioner is converted to a home heat pump. It performs excellently with refrigerants in applications that do not exceed 45 bar | 4.5 MPa pressure.

The brazed steel heat exchanger is designed for use in heat pumps or air conditioners for gas-to-liquid applications, especially in devices with an output between 10 and 16 kW, acting as a cooler/condenser.

span>

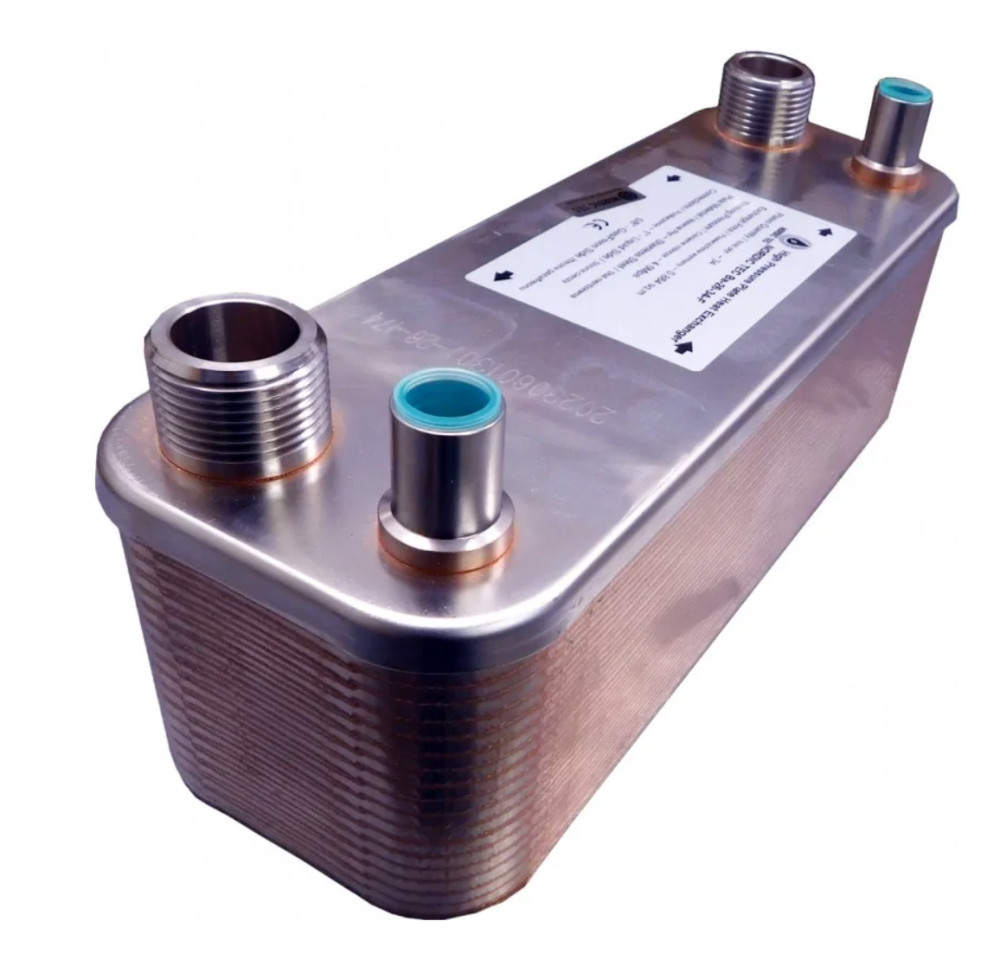

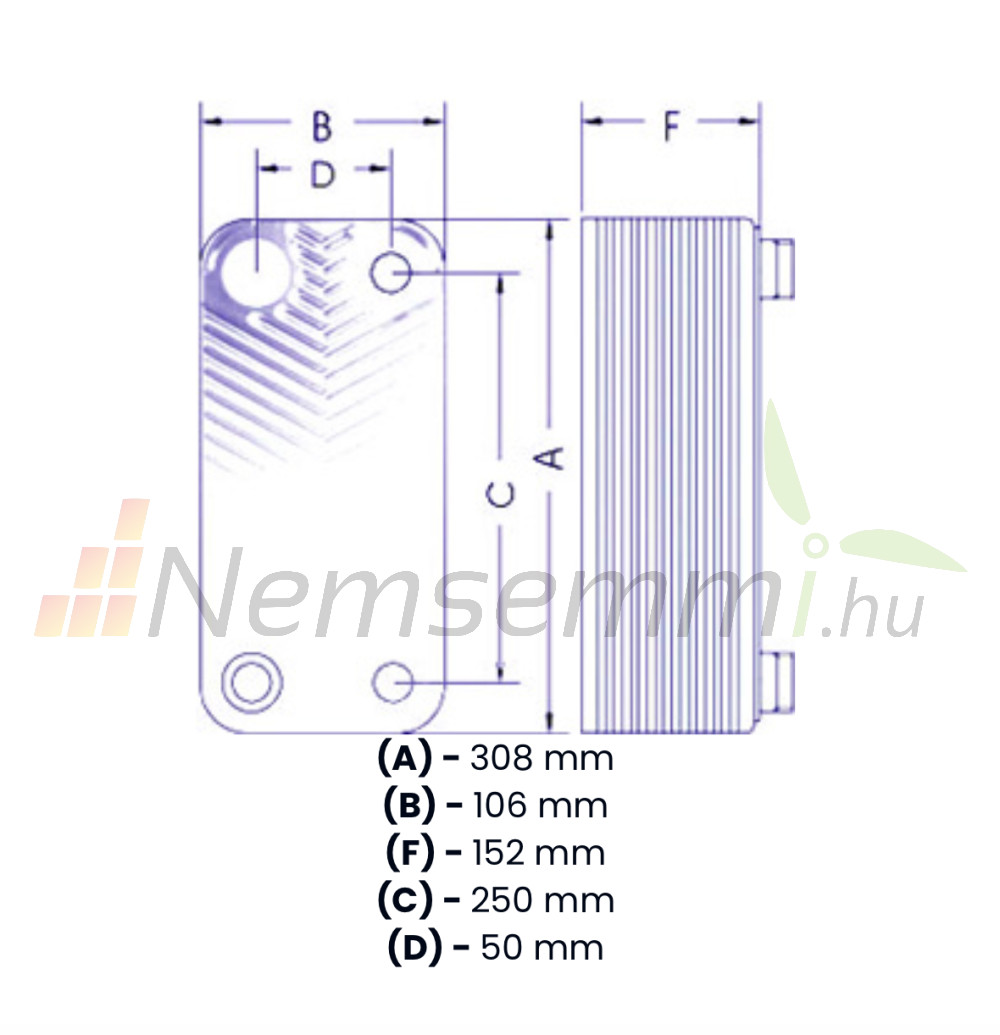

Ba-26-60-F, consisting of 60 plates and with a plate surface of 1.56 m², is the largest freon heat exchanger in this series. In practice, it can also work with heat pumps and units/air conditioners with a power of up to 16 kW.

Main features:

Number of discs: 60 discs
Connections
- Gas side: 5/8" pipe (φ15)
- Liquid side (heat absorption side): 1"
Heat exchange surface:

1,560 m²

Estimated heat pump / unit / air conditioning power: 10-16 kW
Operating pressure on the gas side: up to 45 bar

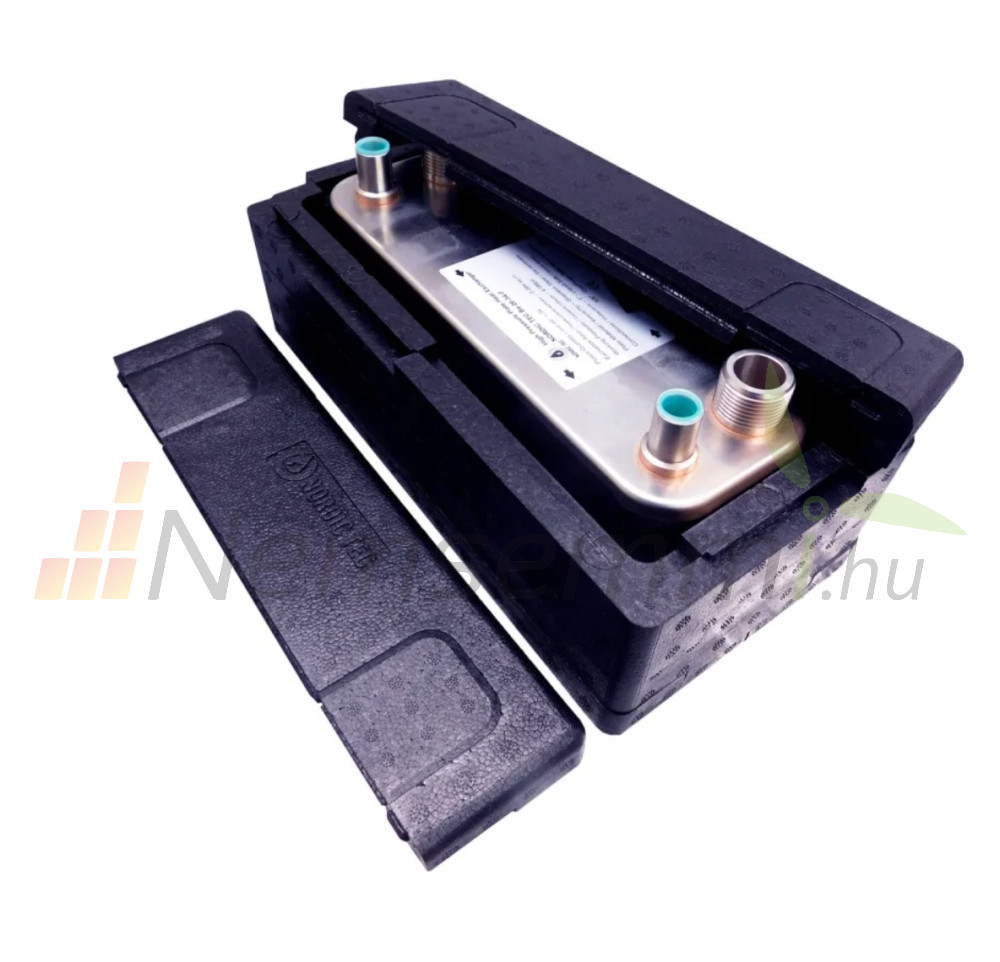

The 60-plate Freon heat exchanger can be optionally ordered with thermal insulation, which improves heat transfer efficiency by reducing heat loss from the environment.

If you are looking for a Freon-water (or Freon-water/glycol) heat exchanger for a larger unit, i.e. one with a larger plate surface, you can also find it in our offer. Find it in the second gas heat exchanger series, the Ba-68F series. These heat exchangers are based on larger plates and have larger connections to the refrigerant (7/8"). The largest freon heat exchangers have a surface area of approximately 4 m².

This freon heat exchanger can also be used to convert an air conditioner into a heat pump.

Gas-liquid heat exchanger Freon heat exchanger 60 plates Ba-26-60-F for refrigerants 1.56m²
