Gas-liquid heat exchanger

Number of plates: 70 pieces
Heat exchange surface:1,820 m²
Material: 316L stainless steel with vacuum brazed copper
Heating capacity heat pump / for air conditioning / cooling unit: 12-18 kW
Refrigerant / Gaseous media connection: φ15 - 5/8" for brazing
Traditional liquid media connection: 1" - DN 25
Operating pressure: Up to 45 bar (this is the maximum permissible pressure)
Pressure tests before commissioning: > 60 bar
Flow speed: 12 m³/h
Connection method: counter-current

More information:

Freon heat exchanger

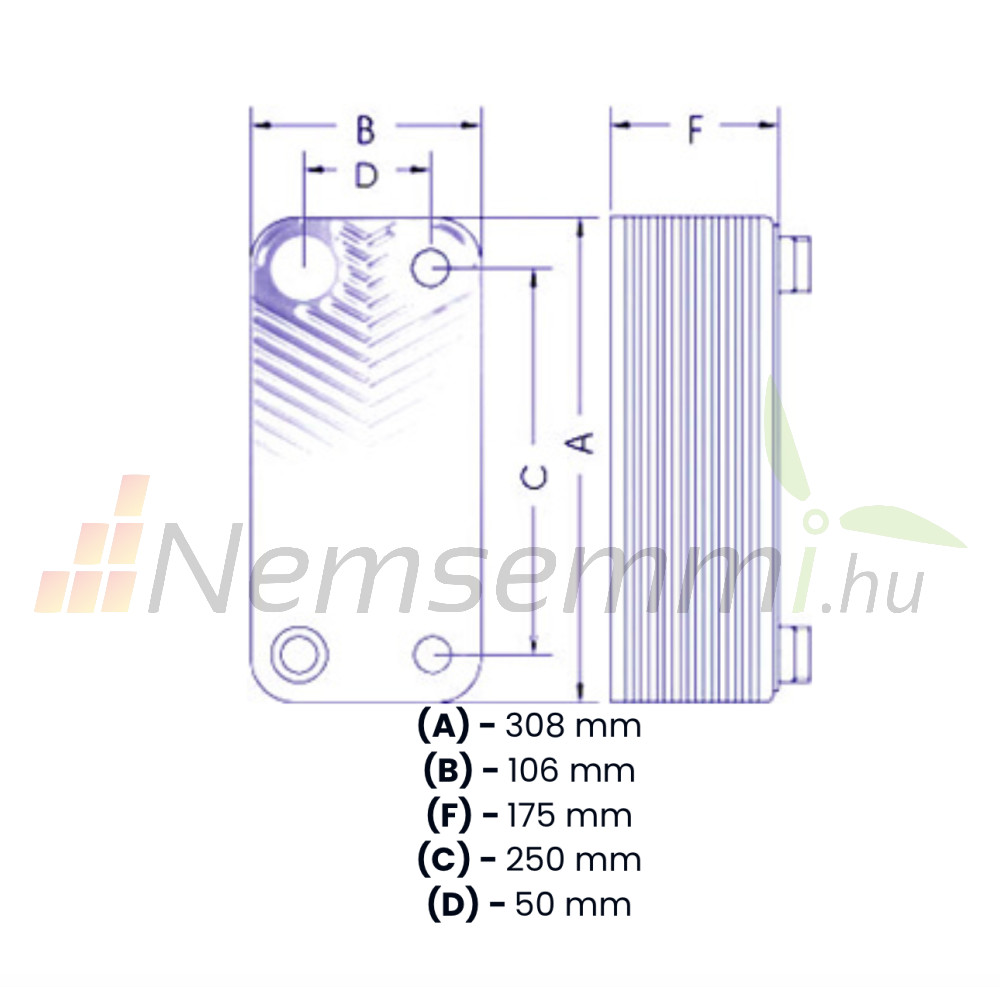

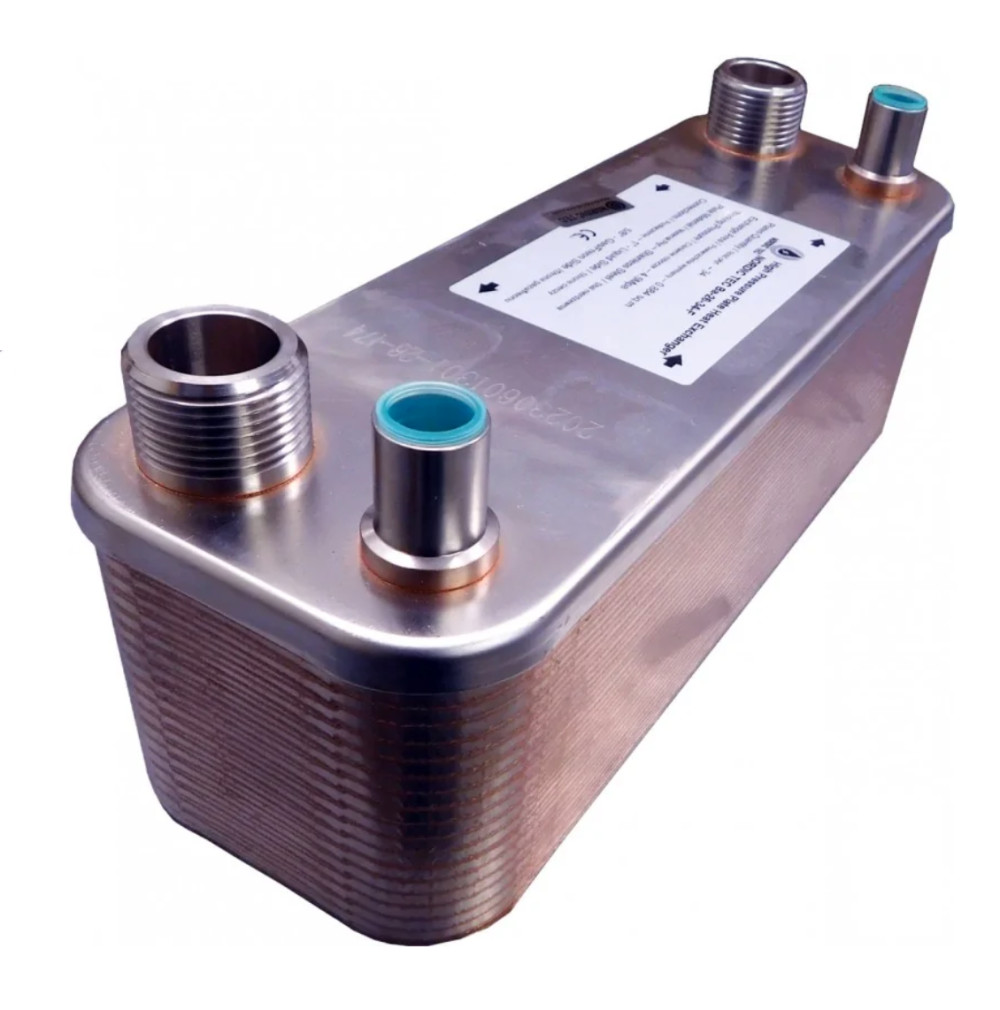

The 70 plate refrigerant heat exchanger for gas-water medium, designed for high pressure applications (< 45 bar). Suitable for use with liquids (on the 1st channel - the so-called heat absorbing side) and refrigerant/gas (on the 2nd side). The Ba-26-70-F heat exchanger can act as an excellent condenser or evaporator in heat pumps or air conditioning systems, even when converting an air conditioner to a home heat pump. Excellent performance with virtually all refrigerants in systems that do not exceed 4.5 MPa pressure.

The brazed steel heat exchanger is designed for use in heat pumps or air conditioners for gas-to-liquid applications, especially in devices with an output between 12 and 18 kW, acting as a cooler/condenser.

span>

Ba-26-70-F, which consists of 70 plates and has a plate surface of 1.82 m², is the largest Freon heat exchanger in the Ba-26-F series. In practice, it can work with heat pumps and air conditioning units with a power of up to 18 kW.

Main features:

Number of discs: 70 discs
Connections
- Gas side: 5/8" pipe (φ15)
- Liquid side (heat absorption side): 1"
Heat exchange surface:1,820 m²

Estimated heat pump / unit / air conditioning power: 12-18 kW
Operating pressure on the gas side: up to 45 bar

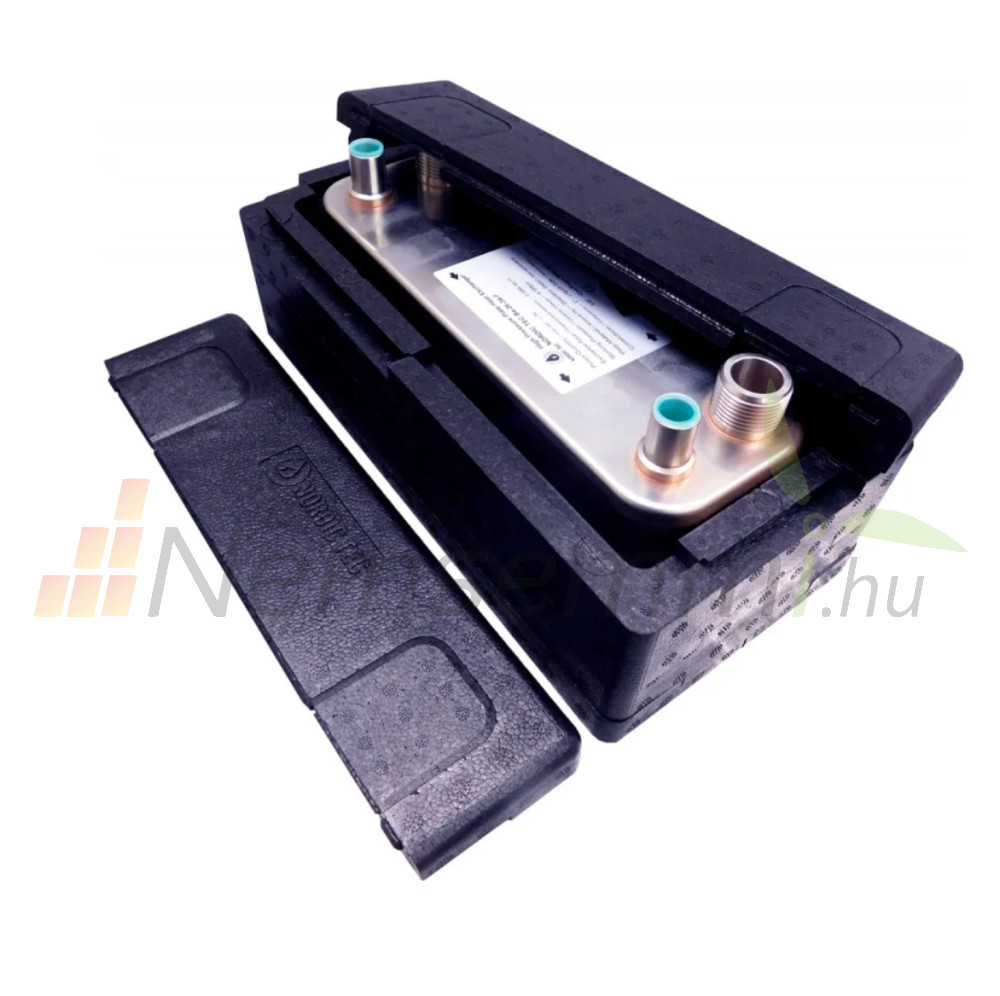

The 70-plate Freon heat exchanger can be optionally ordered with thermal insulation, which improves heat transfer efficiency by reducing heat loss from the environment.

The Ba-26-F series connections are designed for brazing - 5/8" pipe. If you need larger, check out the Ba-68-F series, which has 7/8" connections.

Gas-liquid heat exchanger Freon heat exchanger 70 plates Ba-26-70-F for refrigerants 1.82m²
