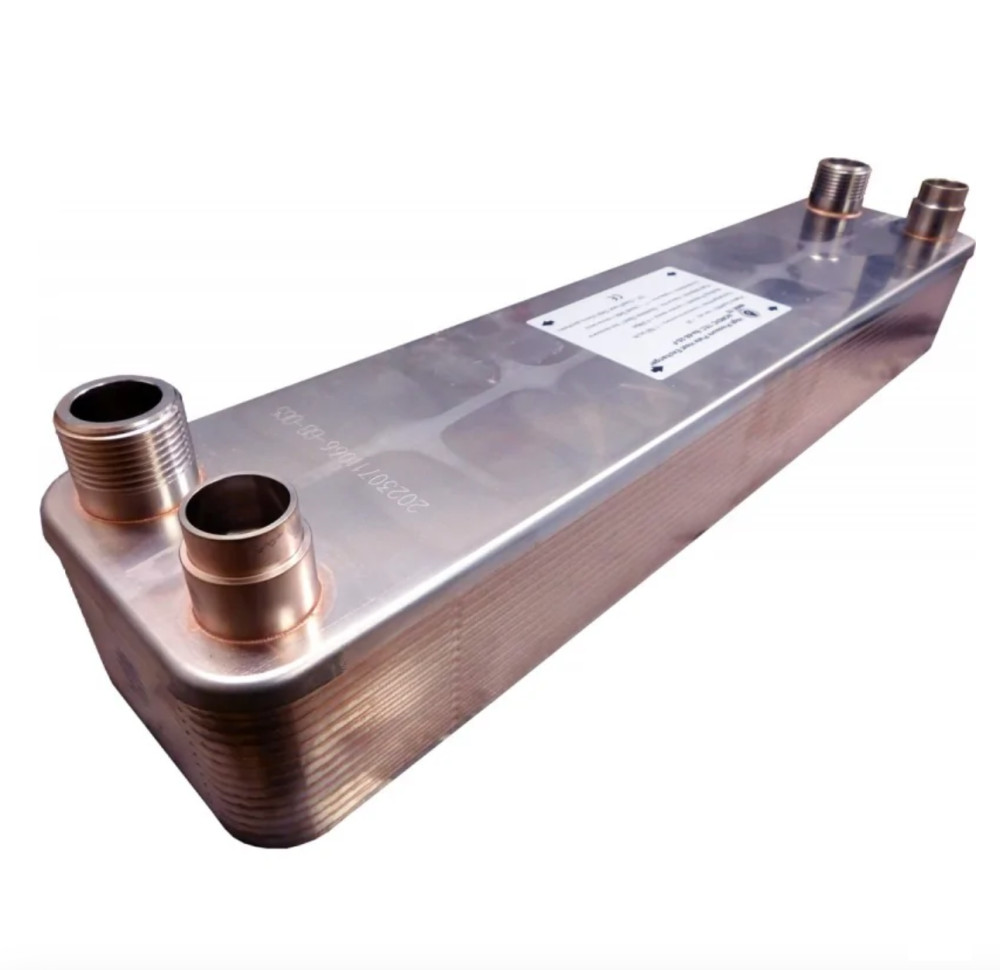

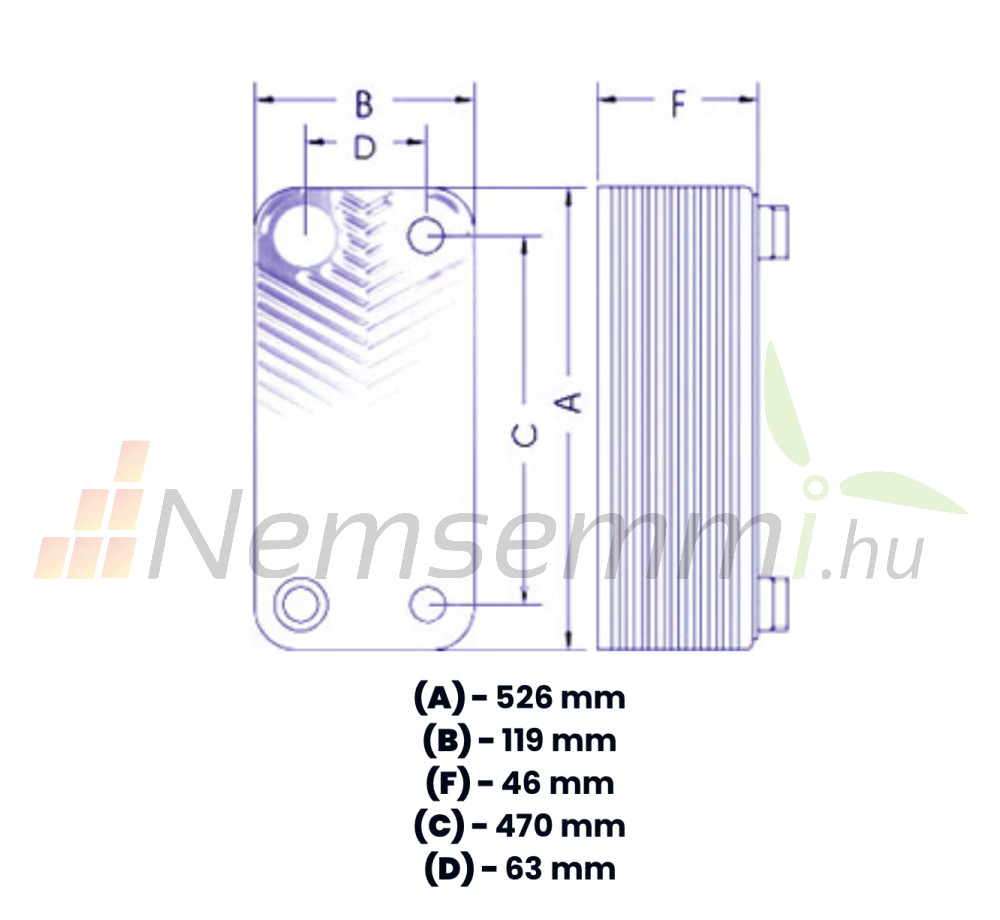

Gas-liquid heat exchanger Freon heat exchanger 16 plates Ba-68-16-F for refrigerants 1,090m²

Gas-liquid heat exchanger

Number of plates: 16
Heat exchange surface:1.088 m²
Material: 316L stainless steel with vacuum brazed copper
Heating capacity heat pump / for air conditioning / cooling unit: 7-11 kW
Refrigerant / Gaseous media connection: φ22 - 7/8" for brazing
Traditional liquid media connection: 1" - DN 25
Operating pressure: Up to 45 bar (this is the maximum permissible pressure)
Pressure tests before commissioning: > 60 bar
Flow rate: 22 m³/h
Connection method: counter-current

Freon heat exchanger

Gas / Freon heat exchanger is a 2-channel flow device, one of which is designed for gas / freon / refrigerant (with soldered connection). The second channel of the heat exchanger is designed for liquid - water or water and glycol solution.

Main features:

• Number of discs: 16 discs
• Connections
  • Gas side: 7/8" tube (φ22)
  • Liquid side (heat absorption side): 1"
• Heat exchange surface:1.088 m²

• Estimated heat pump / unit / air conditioning power: 11 kW
• Operating pressure on the gas side: up to 45 bar

• Heat exchanger insulation is an optional accessory; can be purchased with or without insulation.

The Ba-68-16 Freon heat exchanger belongs to the smaller heat exchangers of the Ba-68 series. With a surface area of ​​1,088 m², it is well suited for units operating with R410a, R32 and similar refrigerants, with a capacity of up to 10-11 kW. If you need larger Freon heat exchangers for larger heat pumps or larger air conditioners, you can review the surface areas of other models in the range. You can find all Ba-68-F Freon heat exchangers in our range.

The Ba-68-16-F gas heat exchanger can be purchased with or without insulation, which further improves its performance.
