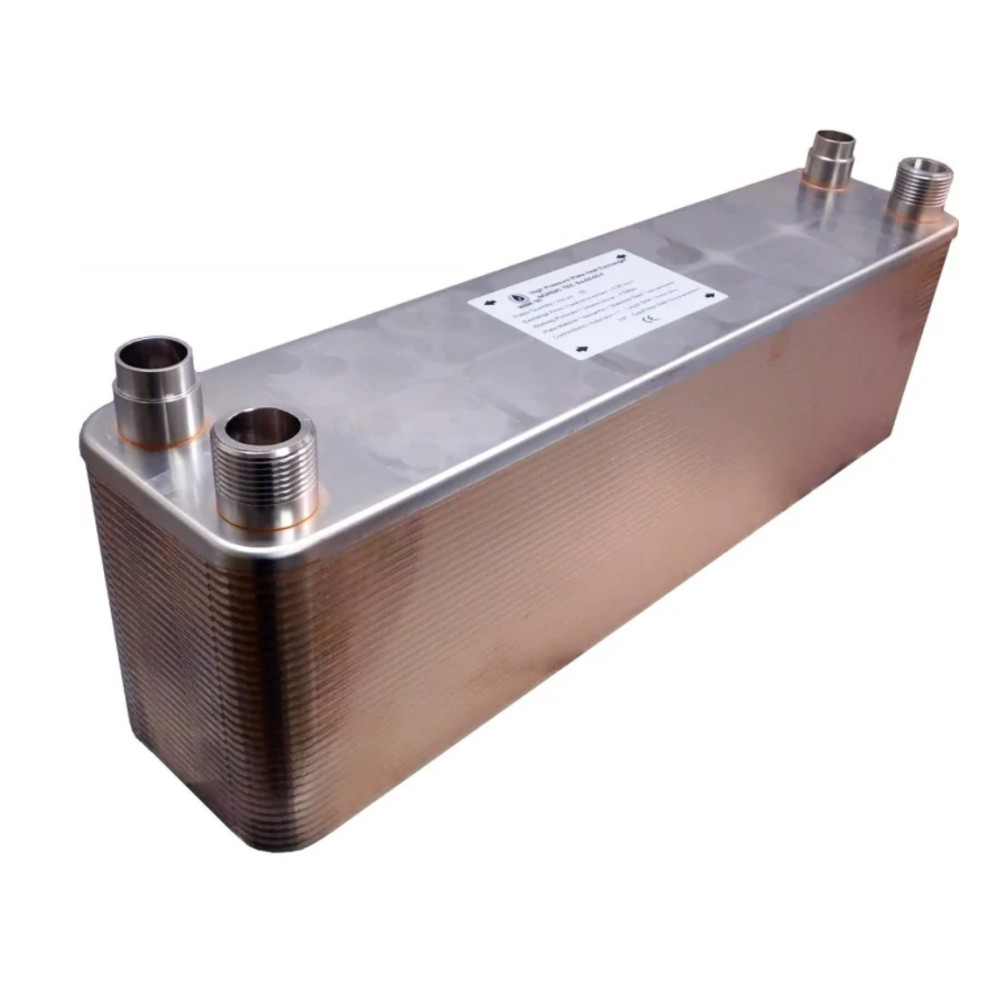

Gas-liquid heat exchanger Freon heat exchanger 60 plates Ba-68-60-F for refrigerants 4.10 m²

Gas-liquid heat exchanger

Number of plates: 60 pieces
Heat exchange surface: 4.10 m²
Material: 316L stainless steel with vacuum brazed copper
Heating capacity heat pump / for air conditioning / cooling unit: 30-44 kW
Refrigerant / Gaseous media connection: φ22 - 7/8" for brazing
Traditional liquid media connection: 1" - DN 25
Operating pressure: Up to 45 bar (this is the maximum permissible pressure)
Pressure tests before commissioning: > 60 bar
Flow rate: 22 m³/h
Connection method: counter-current

Characteristics of refrigerant channels:

• I. Duct - designed for freon/gas/refrigerant - equipped with soldered connections - i.e. ϕ 22 - 7/8" size pipes.
• II. Channel - designed for liquid (water/glycol solution).

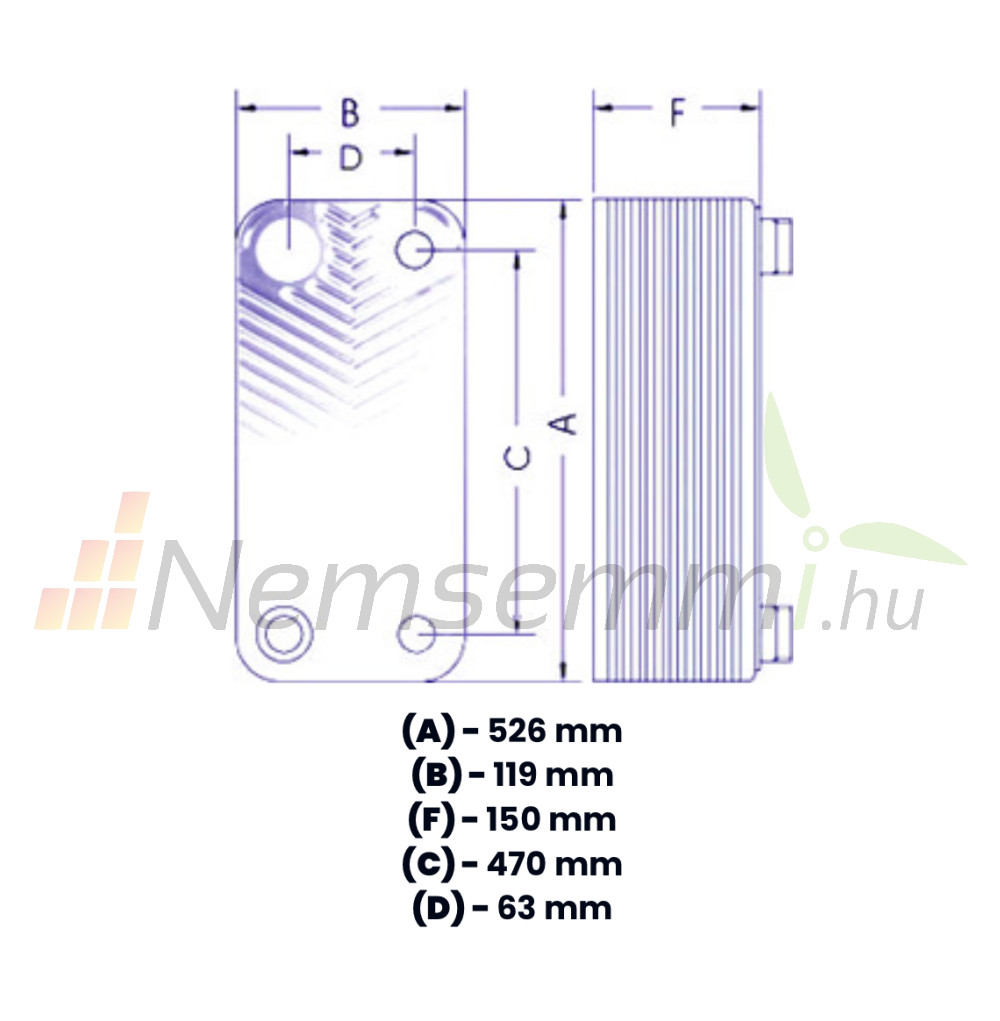

Freon heat exchanger

The Ba-68-60-F heat exchanger is the largest heat exchanger for heat pumps (in freon-liquid system) in our range. This is a 60-plate model with a surface area of ​​more than 4 m². This impressive parameter allows this heat exchanger to be used for quite large heat pumps or units/air conditioners up to 44 kW.

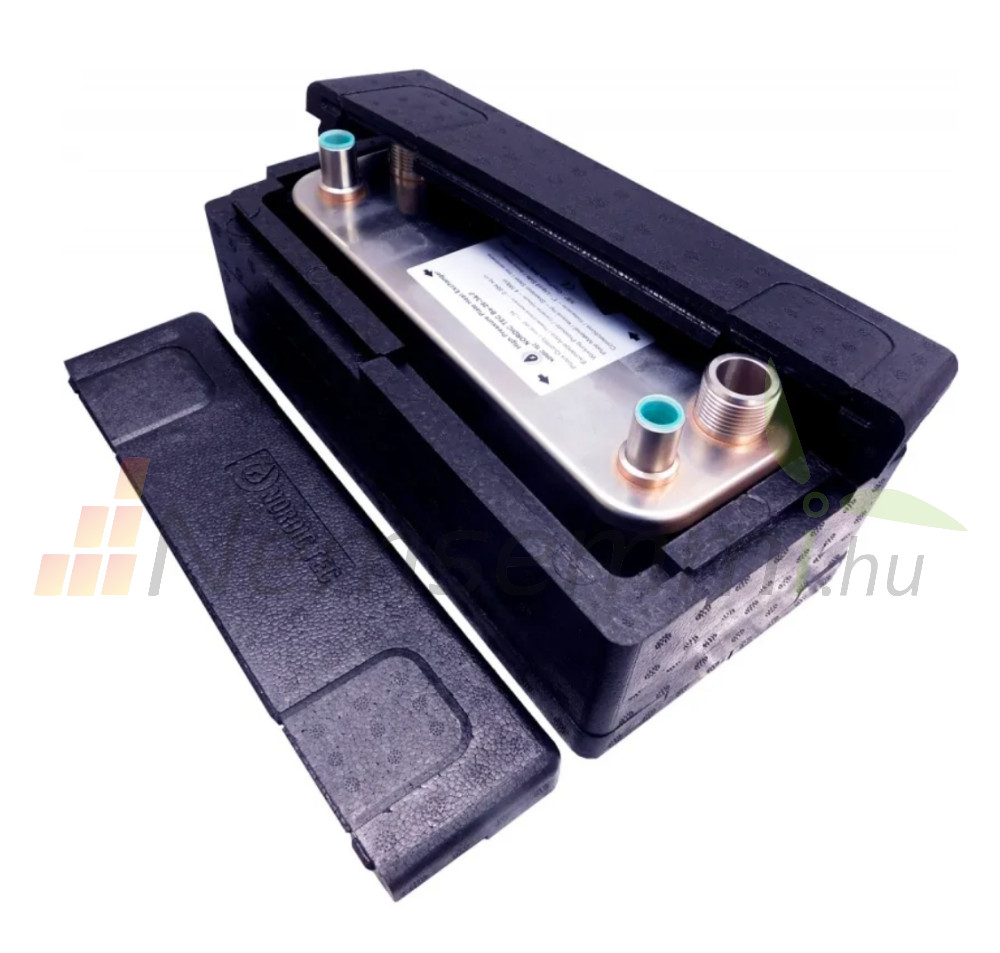

The Ba-68-60-F heat exchanger can be purchased without insulation (basic version) or as an insulated heat exchanger if you want to improve its performance.

Main features:

• Number of discs: 60 discs
• Connections
  • Gas side: 7/8" tube (φ22)
  • Liquid side (heat absorption side): 1"
• Heat exchange surface: 4.10 m²

• Estimated heat pump / unit / air conditioning power: 30-44 kW
• Operating pressure on the gas side: up to 45 bar
• Heat exchanger insulation is an optional accessory; can be purchased with or without insulation.

The resistance of refrigerant heat exchangers up to a pressure of 4.5 MPa is a fundamental feature that distinguishes them from traditional liquid-liquid heat exchangers.
