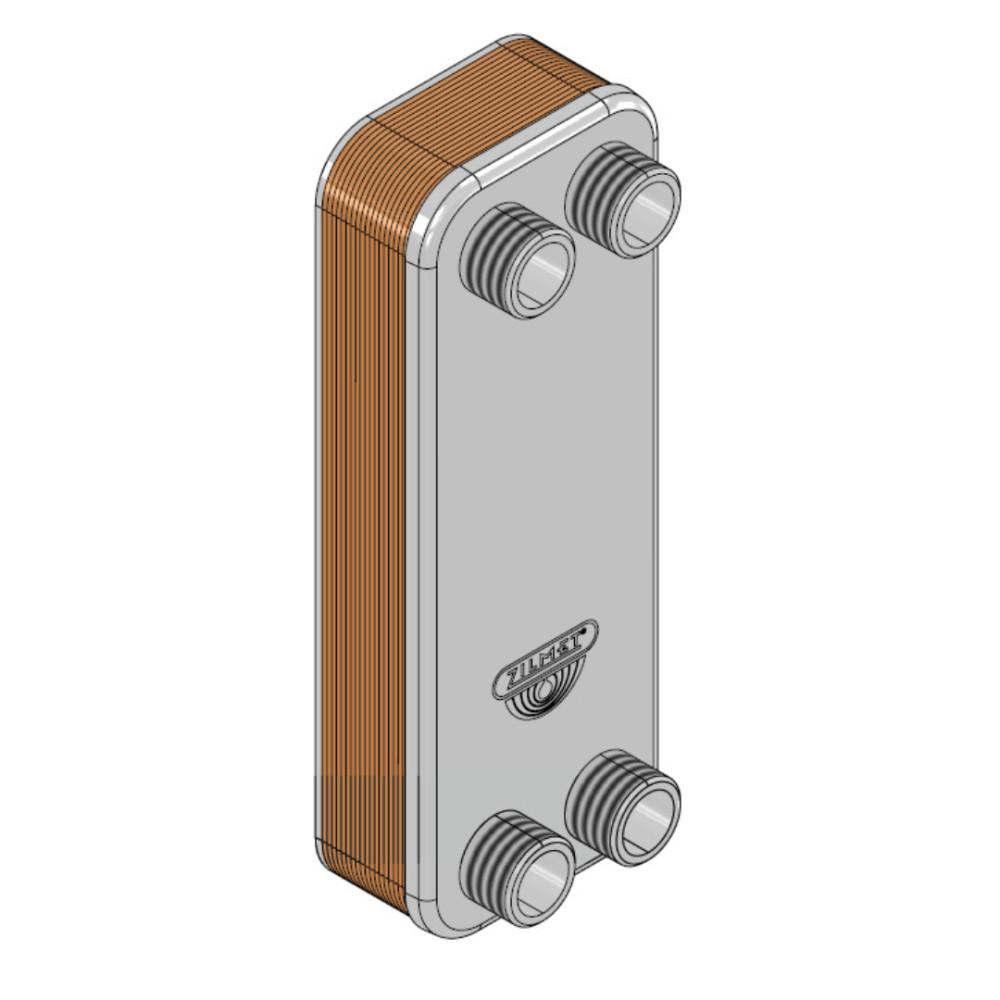

Plate heat exchanger

Number of plates: 30
Length: 312 mm
Width: 113 mm
Maximum working pressure: 30 bar
Test pressure: 45 bar
Maximum operating temperature: -50°C / +200°C
Sheet material: AISI 316 L stainless steel
Connector material: AISI 316 stainless steel
Connection dimensions: 4 x G1"
Solder material: 99.9% copper
Button spacing: 50/250 mm
Height: (9 + 2.25 x N) mm
Weight: (1.4 + 0.12 x N) kg

More information:

Single-phase brazed heat exchanger

Efficient heat exchanger for heating and cooling systems

ZB 250 is a compact and efficient 30-plate single-phase brazed heat exchanger ideal for smaller heating and cooling systems. Stainless steel plates provide excellent heat transfer while resisting corrosion and scaling. The soldered structure guarantees durable and reliable operation.

Advantages:

Efficient heat transfer
Compact design
Durable and reliable
Resistant to corrosion and scale formation
Can be used in a wide temperature range
Easy installation

Applications:

Heating systems
Cooling systems
Air conditioning systems
Temperature control of industrial processes

The ZB 250 30 plate heat exchanger is a versatile heat exchanger that can be used in a wide range of applications. An excellent choice for both home and industrial use.

Plate heat exchanger ZILMET ZB-250 single-phase brazed heat exchanger 30 plates

Plate heat exchanger

Single-phase brazed heat exchanger
