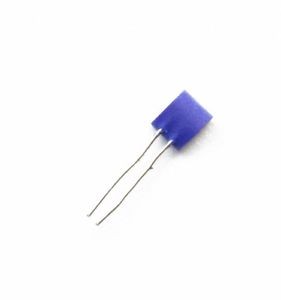

PT1000 Temperature detection sensor Thermometer detection sensor chip -70°C - +500°C

PT1000

Temperature detection sensor
Measuring range -70°C - +500°C< /span>
Response time: 0.25 sec
Standard: DIN EN 60751
Sensor head size: 2x1x3 mm

PT1000 sensors are used in various areas such as:

Industrial process control: Temperature measurement and regulation in factories and plants.
Laboratory applications: Accurate temperature measurement in laboratories and research institutions.
Food industry: Temperature control of food and beverage processes.
< span style="color: #000000;">Medicine: Temperature detection and control of medical devices and equipment.

The advantage of PT1000 sensors compared to PT100 sensors is that they have a higher resistance, so they result in a smaller current change when measuring, which can be beneficial in some cases, especially longer wires or remote in the case of sensors, because this can reduce the effect of wire resistance on the measurement.

PT1000 temperature sensor board

PT1000 is a high-precision temperature sensor that uses the change in platinum resistance value to measure temperature.
The term "PT" is the English "Platinum Temperature ", which means "platinum temperature" in Hungarian. The PT1000 is also a type of RTD (Resistance Temperature Detector) sensor that uses a change in platinum resistance to measure temperature.
The PT1000 sensor, as the name suggests, has a resistance of 1000 ohms at 0°C. Its resistance changes linearly with temperature, and this change is used to measure and record the temperature. RTD sensors, including the PT1000, are generally highly accurate and provide reliable measurements over a wide temperature range.

Temperature detection sensor even for solar collectors and heating control.
