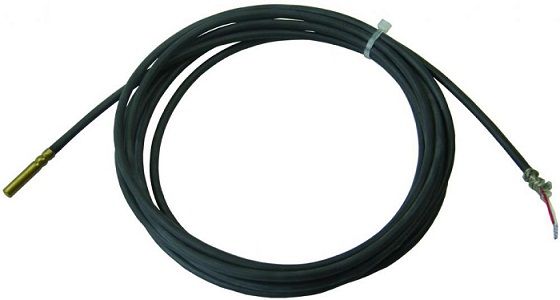

Temperature detection sensor PT1000 Temperature detection sensor heat-resistant silicone cable measurement up to +180 °C UV resistant

PT1000

Temperature detection sensor
Temperature tolerance -50 to +220° C
Measuring range -50°C to +180°C
Cable 1.5 meters heat-resistant silicone!
Diameter 6 mm
Length 50 mm
Protection: IP65

PT1000 sensors are used in various fields such as:

Industrial process control: Temperature measurement and regulation in factories and plants.
Laboratory applications: Accurate temperature measurement in laboratories and research institutions.
Food industry: Temperature control of food and beverage processes.
< span style="color: #000000;">Medicine: Temperature detection and control of medical devices and equipment.

The advantage of PT1000 sensors compared to PT100 sensors is that they have a higher resistance, so they result in a smaller current change when measuring, which can be beneficial in some cases, especially longer wires or remote in the case of sensors, because this can reduce the effect of wire resistance on the measurement.

PT1000 temperature sensor

The PT1000 is a high-precision temperature sensing sensor that uses a change in the value of a platinum resistance to measure temperature.
The term "PT" refers to the English term "Platinum Temperature", which means "platinum temperature" in Hungarian. The PT1000 is also a type of RTD (Resistance Temperature Detector) sensor that uses a change in platinum resistance to measure temperature.
The PT1000 sensor, as as its name suggests, it has a resistance of 1000 ohms at a temperature of 0°C. Its resistance changes linearly with temperature, and this change is used to measure and record the temperature. RTD sensors, including the PT1000, are generally highly accurate and provide reliable measurements over a wide temperature range.

Temperature detection sensor even for solar collectors and heating control.
