Name: Electronically controlled circulation pump 3-year warranty 25/80/180 automatic speed, max. 70W with 1½" X 1" connector, energy class A
Brand: IBO MAGI 2
SKU: IBO-MAGI2_25-80-180_ELEKTRONIKUS_SZIVATTY
Price: 128.32 EUR

Class A circulation pump

Type: IBO MAGI 2 25/80-180
Voltage: 230V
Pipe connection: 1 1/2" x 1"
Lifting height: 8m
Delivery capacity: 90 l/min
Power: (230V) 5W - 70W
Installation length: 180 mm
Max temperature: + 110°C
Manufacturer: IBO Poland
Warranty: 3 years
Protection: IP44< /span>

For help, the plumbing thread dimensions are in inches and millimeters.

Zoll	Outer size
1/8″	10 mm
1/4″	13.2 mm
3/8	16.7 mm
1/2″	21.2 mm
3/4″	26.7 mm
1″	33.3 mm
1 1/4″ = 5/4"	42.2 mm
1 1/2″ = 6/4"	48.2 mm
2″	60 mm

More information:

Electronic circulation pump

The IBO MAGI circulation pumps are equipped with a differential pressure regulator and a magnetic motor, which automatically and continuously adjusts the pump capacity according to the needs of the system.

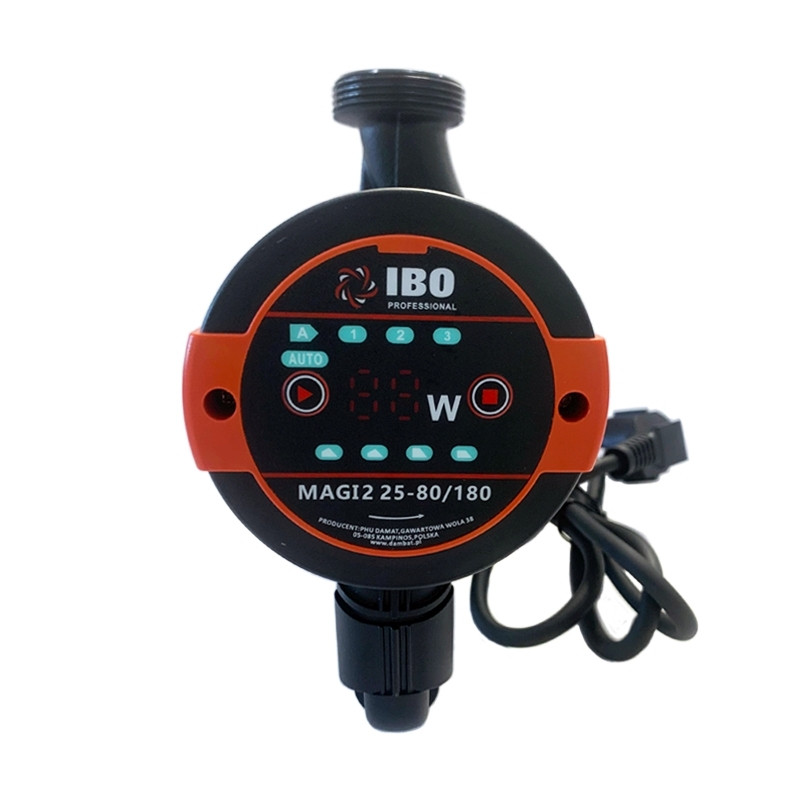

Top of the motor pump control panel, which makes it easier to use. The current electricity consumption is shown on the display.
Energy class A, electronically controlled heating pump.
It automatically sets the required speed, but manually can also be regulated.

The pump may only be installed with a horizontal motor shaft.

Manufacturer: IBO, Poland
