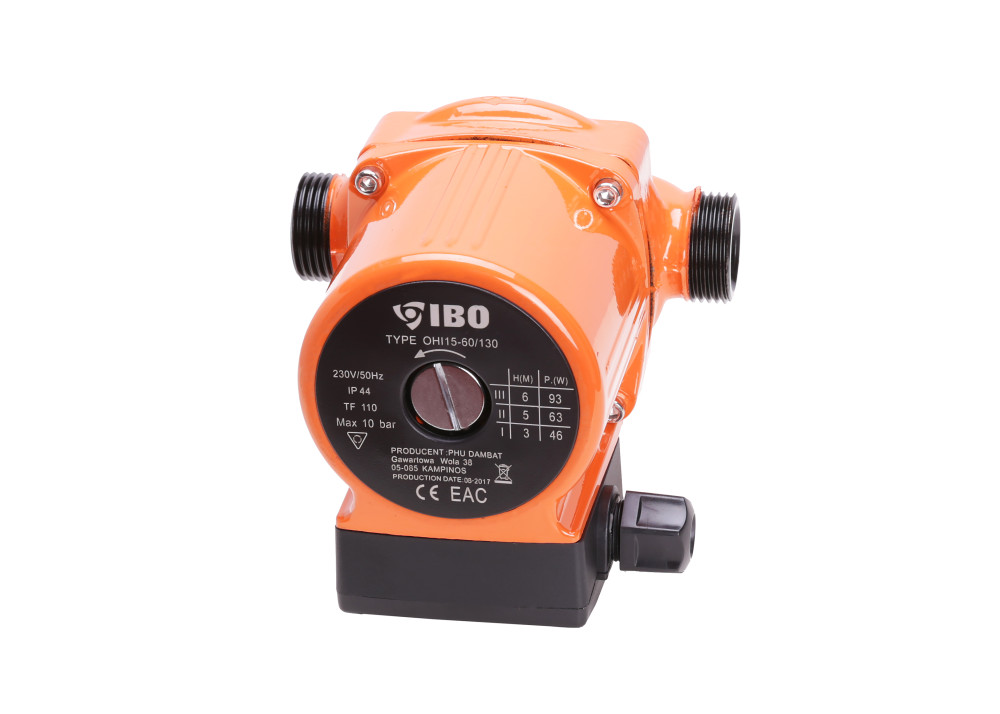

Pump 3 year warranty 15/60/130 manual 3 stages, 46-63-93W with 1" small connector Replacement part for existing solar collector systems

Pump
Type: IBO 15/60/130< /span>
Voltage: 230V
Power: 3 stages, 46-63-93W
Temperature range: -10 +110 C
Maximum pressure: 10 bar
Maximum circulation: 22-38-55 liter/minute
Lifting height: 6 meters

Connector distance: 130 mm
Connector size: 1"< /p>

Transportable medium: water or a 1:1 mixture of water and solar antifreeze

For help, the plumbing thread dimensions are in inches and millimeters.

The circulation pump is a piece of equipment that is particularly useful in heating, cooling and water supply systems. Here are some areas where it comes in handy:
Heating systems: A circulation pump is responsible for circulating hot water or heating medium between radiators, radiators or underfloor heating systems. This ensures that we reach the same temperature throughout the house or building and prevents the formation of cold spots.
Cooling systems: The use of a circulation pump in cooling systems helps to circulate the coolant more efficiently. This is used, for example, in cars or industrial cooling systems.
Hot water supply: A circulation pump allows hot water to be delivered to faucets and showers faster, saving time and water.
Pumps in water movement: Circulating pumps are often used in the water movement of pools, garden ponds, and other water systems.
Various industrial applications: Circulating pumps are also used in industrial environments, for example in material handling, cooling, process control or pumping systems.

More information:

Circulating pump

In the case of a solar collector system, it is recommended to connect it to the colder branch going to the collector. It is best if it is installed in the vertical branch going up.
The pump should only be installed with a horizontal motor shaft.
A spare part of solar collector systems.
Manufacturer: IBO, Poland
