Inverter

Maximum solar input power: 4000 W
Maximum DC voltage: 520V DC
Short circuit current: 32.5A
Maximum DC current: 2x13A
Number of strings: 2
Number of MPPT points: 2
MPPT range between 125 ~ 450 Vdc
Solar panel starting voltage 150V
MPPT voltage range 99.9%
Maximum feedback 0A

Network page
Rated power: 4000Wp
< span style="color: #000000;">Maximum current: 20A
THD at mains current <3%
< span style="color: #000000;">Performance factor: >=0.99
Maximum efficiency: 97.2%
< span style="color: #000000;">European efficiency: 96.4%
Output voltage: 180 ~ 260 Vac
Permitted mains frequency: 47 ~ 51.5Hz
Standby power consumption: 5W
Night power consumption: 0W
Network monitoring Based on VDE0126-1-1 standard
Communication interface RS485/Ethernet (optional), GPRS (optional)
Display type: LCD

Safety and environmental conditions

Protection level: IP65
Cooling: natural cooling
Operating temperature range between -25 ~ +60 °C
Relative humidity: 0~98 percent
Noise level < 45 dB
Isolation method : low frequency transformer
Standards:
IEC 62103; EN 50178;IEC/EN 62109-1;
IEC/EN 62109-2;IEC/EN61000-6-1:2007;
IEC/EN61000-6-3:2007;IEC/EN61000-3-3 :2007;
AS/NZS 3100: 2009; AS4777.2: 2005; AS4777.3: 2005;

Technical data

Dimensions: (w x d x h) 450 x 450 x 200 mm
Weight: 20 kg

More information:

ELMŰ, DÉMÁSZ, and They are EON licensed

Inverter feeding back to the grid 4.4 kW
GBT power supply
High efficiency, quiet operation, low heat generation, long service life.
MPPT > 99.9%
The LCD display is multilingual,
Efficient interface.
Built-in DC isolation switch.
Extended MPP voltage range.
Reliable system protection
Modular structure, easy installation, operation and maintenance.
2 year warranty

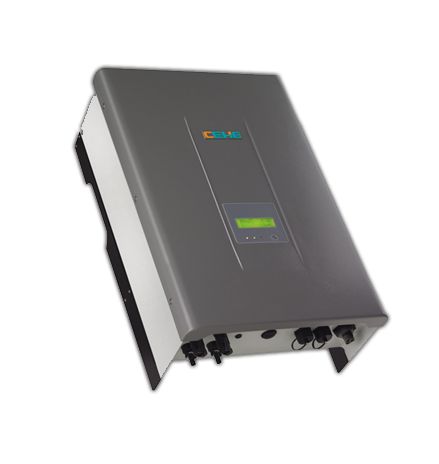

4 kW solar inverter - EHE - inverters feeding back into the grid Nominal power: 4 kW Maximum power: 4.4 kW

Inverter

ELMŰ, DÉMÁSZ, and They are EON licensed
