Pool heater solar panel 110x69x14cm pool heater anthracite solar collector solar collector solar heating

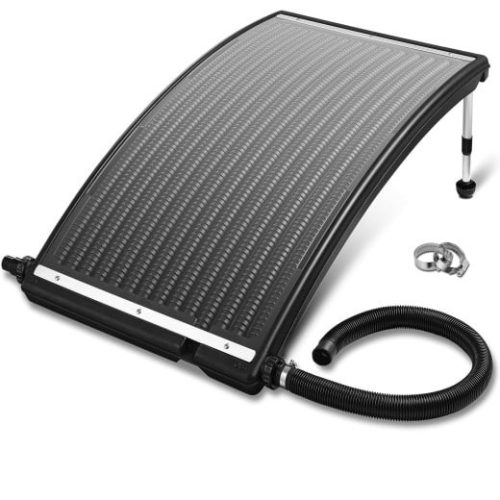

Pool heating solar panel

Size (height x width x depth): 110 x 69 x 14 cm
Material frame/legs: 100% HDPE, aluminum
Material surface: 100% polycarbonate
Water yield: 10,000 L/h
Weight: 9 kg
< span style="color: #000000;">Adjustable legs: 26 - 38 cm
Adapter diameter: 32 / 38 mm
Material hose clamps: 100% stainless steel
Water collector capacity: 12 L
Maximum pressure: 1 Bar
Surface: 0.75 m²

Pool heating

The solar pool heater provides environmentally friendly and simple pool water heating on colder days. Simply connect the solar heater behind the pool filter system. The high-performance solar collectors heat the pool water in an energy-efficient manner and are easy to install.

Pool heating is suitable for all types of above-ground pools. The heating panel is made of weather-resistant HDPE, which is stronger and more resistant to scratches and tears than normal PE, so it can also be used in saltwater pools. The surface has high strength, hardness and durability.

Depending on the weather conditions and the orientation of the solar collectors, a warming of up to 3° is possible. By connecting several collectors in series, the water can be heated better. The sophisticated curved design provides a larger solar radiation surface. The aluminum legs of the collectors can be adjusted between 26 and 38 cm, so the solar collector can be optimally adjusted to the sun. The legs can be removed for winter storage.

For a better water temperature, a bypass kit must be connected, which increases the residence time of the water in the solar collector and thus heats up the pool water faster. Thanks to the smart adapter, hoses with a diameter of 32-38 mm can be connected. The surface of the solar collector is 0.75m² and it can store up to 12 liters of water. The water flow rate is 10,000 L/h. The solar module comes with accessories consisting of 2 stainless steel hose clamps, a 1.2m hose, 2 screws and 2 connectors.
The product advantages:

• simple serial connection of several collectors
• environmentally friendly and simple pool water heating thanks to solar energy
• weatherproof HDPE - more stable, scratch and tear resistant than normal PE
• easy commissioning
• energy-efficient and cost-saving
• up to 3% heating
• several collectors can be connected in a row
• Curved design
• removable, adjustable aluminum legs
• 0.75 m² surface
• 12 liter capacity
• water yield 10,000 L/h
• salt resistant
