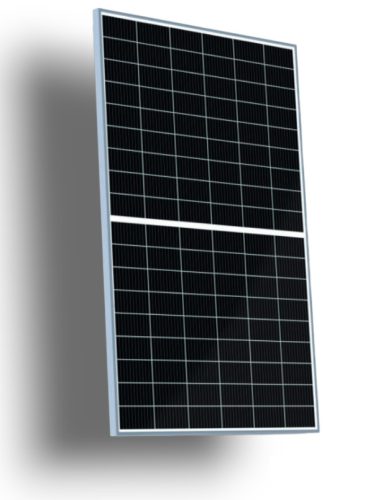

Solar panel 38V 410W X-HALF CUT monocrystalline 1724 x 1134 x 30 mm Multi Busbar technology

X-HALF CUT 410W mono panel

Voltage (Voc): 37.66 V
Rated voltage (Vmp): 31.76 V
Short circuit current (Isc): 13.66 A
Rated current (Imp): 12.91 A
Power (Pmax): 410W
< span style="color: #000000;">Breakthrough voltage: 1500V DC
Efficiency: 20.99%
Operating temperature: -40°C-+85°C
Size: 1724x1134x30 mm
Weight: 20.4 kg
Cell type: Half Mono (182x91 mm)
Number of cells: 108
Frame: anodized aluminum
Junction box: IP67, 3 bypass diodes
Output cable: 4 mm²
Connection: MC4 compatible

Half-cut - That is, half-cut solar technology increases the energy production of solar panels by reducing the size of the cells, so more can fit on one panel. Because the cells are cut in half and thus reduced in size, there are more cells in a solar panel than in conventional panels. The solar panel is split in two, so the top and bottom work as two separate panels, producing energy even if one half is shaded.
A big advantage of HALF-CUT panels is that they improve the performance of solar panels, because thanks to their unique wiring system, they have a greater shade tolerance capacity. This means that if you have trees in your home that cast shade on your roof at certain times of the day, the entire solar panel will not be useless as with a traditional solar panel.

Multi Busbar - otherwise known as busbars, are thin, conductive metal strips (TAP-strip) used in solar cells, which collect the produced electrons across the silicon cells , on the other hand, adjacent cells are connected to each other to create circuits.
The essence of the solution is that the electrons have to travel a shorter distance to the busbar, so that the generated energy can be transported within the solar cell with less loss. Another advantage is that the "busbars" can conduct the current even in case of possible micro-damages inside the cell - which can occur, for example, due to external mechanical impact - instead of accumulating at a specific point causing overheating, thus preventing the formation of "hot spots" the risk is also reduced.

Minimum order quantity 5 pieces!
Larger quantity when ordering, look for our customer service.

410W half-cut Multi Busbar

New technology X-HALF CUT high-performance glass-coated monocrystalline solar cell.
These modules have better resistance, higher efficiency and more stable, longer-lasting energy production than the traditional solar panels.
