Complete set 12V 100W solar cell monocrystalline solar panel 20A charge controller 12V/24V

Monocrystalline solar panel kit

Solar panel technical data:

Weight: 9.4 kg
Dimensions: 1000x675x30 mm< br />Rated power (Pmax): 100 W +3%
Rated voltage (Vmp): 18.4 V
Permitted system voltage: 1000 V
Front panel: made of special glass
Rated current (Imp): 5.44 A
Open Circuit Voltage (Voc): 23.21 V
Short circuit current (Isc): 5.83 A

Charging controller technical data:

Weight: 0.40 kg
Dimensions: 172x126.3x73 mm
Solar input: 2
Battery voltage: 12V or 24V automatic recognition
USB outputs: 2
Charging current: 20 A
Max. operating current: 20A (also on low-load output)
Max. Photovoltaic charging power: 300W at 12V / 600W at 24V
The nominal voltage of the solar module is up to 20V for 12V systems, up to 40V for 24V- os systems.
Up to 10 suitable for mm² cable cross-section.

Solar panel set

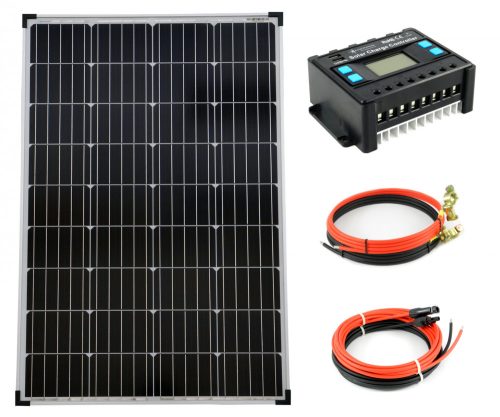

Package Contents:

• 1 solar panel 100 Watt monocrystalline 1000x675x30mm
• 1 piece 20A LCD solar charge controller 12V/24V
• 1 pair 2m 6mm² connection cable charge controller: battery with clamps
• 1 pair 3m 6mm² connection cable module: charge controller with solar connectors
  (Inspected by TÜV, German-made solar cables)

Solar module features

• robust aluminum frame
• weather-resistant, tempered glass that protects against hail and snow.
• switch box on the back, weatherproof

The charge controller is connected between the solar module and the battery and is thus responsible for controlling the charging process. This means that the battery can always be fully charged. The microprocessor gently charges the battery, thus guaranteeing a long battery life. All voltages, charging processes and parameters are shown on the display. You can set the charging voltage through the control panel, so the solar charge controller can be used on any battery. You can set the voltage at which the low voltage protection is activated and the operating voltage at which the low voltage protection is reset.
Battery overcharging can be prevented as the charging controller stops the charging process when the set final charging voltage is reached.
